DOCUMENT CENTRE CS 50 USER GUIDE 13–5 PROBLEM SOLVING
1
3
4
5
6
7
13
Paper jam behind the Left Door
NOTE: Paper that is partially out of the copier/
printer may become more severely jammed if it is
not removed before you open the Paper Path
Module. Ensure that all paper is cleared from this
area, especially paper that is positioned between
the paper trays and the Paper Path Module
Registration area.
1 When the Touch Screen displays a message
indicating a jam behind the Left Door, perform one
of the following:
•
If a paper jam occurs from Paper Trays 1, 2,
3, or 4, open the side panel in the Left Door
and carefully remove the jammed paper, as
illustrated in Figure 4.
•
If a paper jam occurs near Paper Tray 5, lift
the release lever on Paper Tray 5 and open
the panel, as illustrated in Figure 5.
2 Close all open panels.

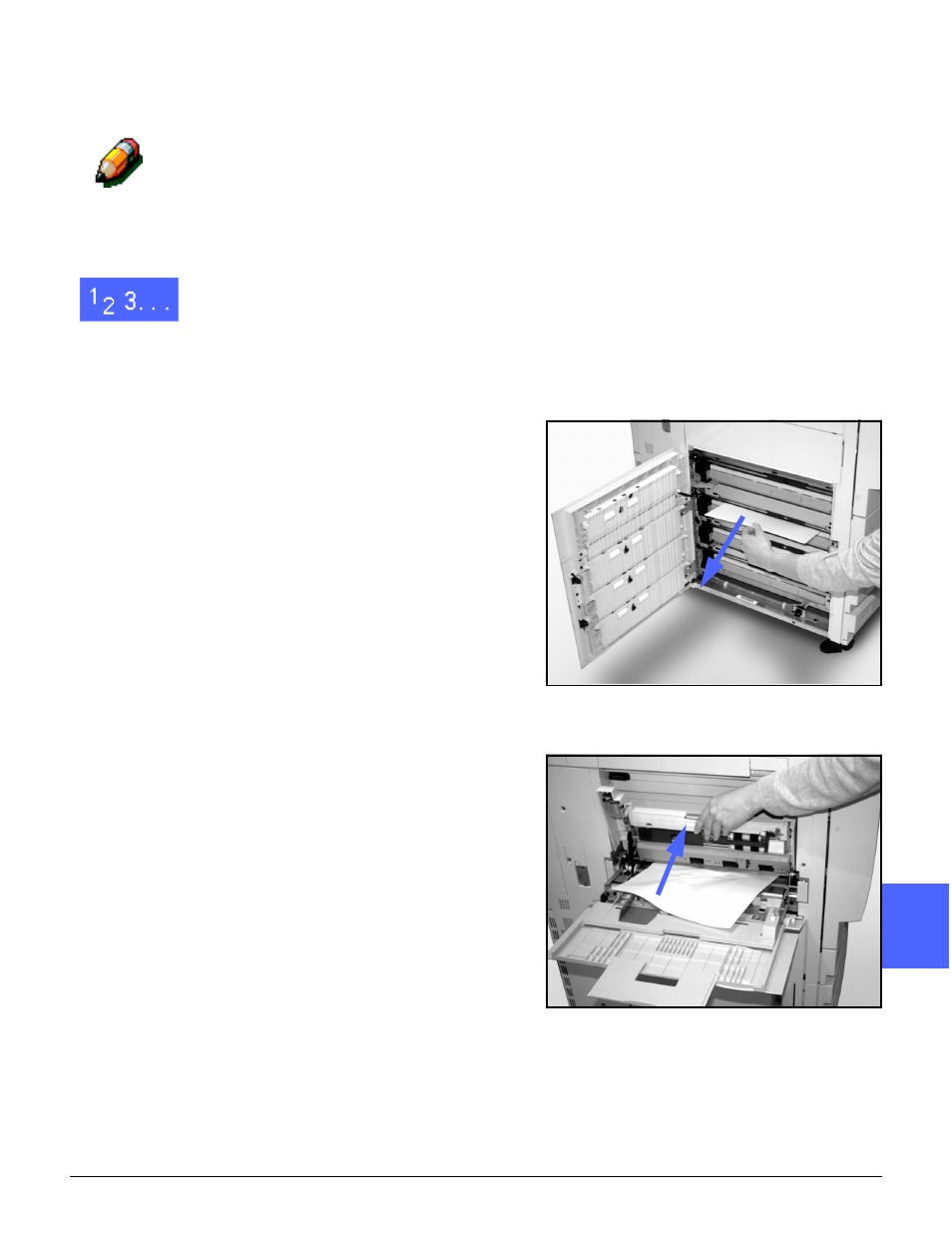

Figure 4: Clearing a jam from the left side
Figure 5: Opening the Paper Tray 5 Panel
