DOCUMENT CENTRE CS 50 USER GUIDE 5–5 ADDED FEATURES
1
2
3
4
6
7
5
•
2 to 2 Sided button for 2-sided copies from 2-
sided input.
Select the Side 2 Rotate button to display the
Side 2 Rotate screen, illustrated in Figure 5.
Touch the appropriate description for input
documents and desired output:
– Selecting Flip on Long Edge or Flip on
Short Edge for originals and copies will
give you 2-sided, head-to-head output, as
in books.
– Selecting Flip on Long Edge for originals
and Flip on Short Edge for copies, or
vice versa, will give you 2-sided, head-to-
toe output, as for calendars.
•
2 to 1 Sided button for 1-sided copies from 2-
sided originals, as illustrated in Figure 6.
– Touch Flip on Long Edge if your original
documents are 2-sided, head-to-head.
– Touch Flip on Short Edge if your original
documents are 2-sided, head-to-toe
output, as for calendars.
NOTE: The 2 to 2 Sided feature and the 2 to 1
Sided feature can only be used when copying
from the DADF. You must follow the procedure for
Manual 2 sided copying (on page 5-6) if you want
to use the Document Glass for 2 to 2 Sided
copying. For 2 to 1 Sided copying on the
Document Glass, select 1 to 1 Sided and copy
each side of the original individually.
If you are using the Document Glass, you may
select one of the following:
•
Touch the 1 Sided button for default one-
sided copies.
•
Touch the 1 to 2 Sided button to display the 2
Sided Copy screen. Under Side 2 Rotate,
perform one of the following:
– Touch Flip on Long Edge for 2-sided,
head-to-head output, as for books.
– Touch Flip on Short Edge for 2-sided,
head-to-toe output, as for calendars.
3 Touch the button next to the icon that most closely
resembles the Original Orientation for the
document on the Document Glass.
4 Touch Save to return to the Added Features tab.

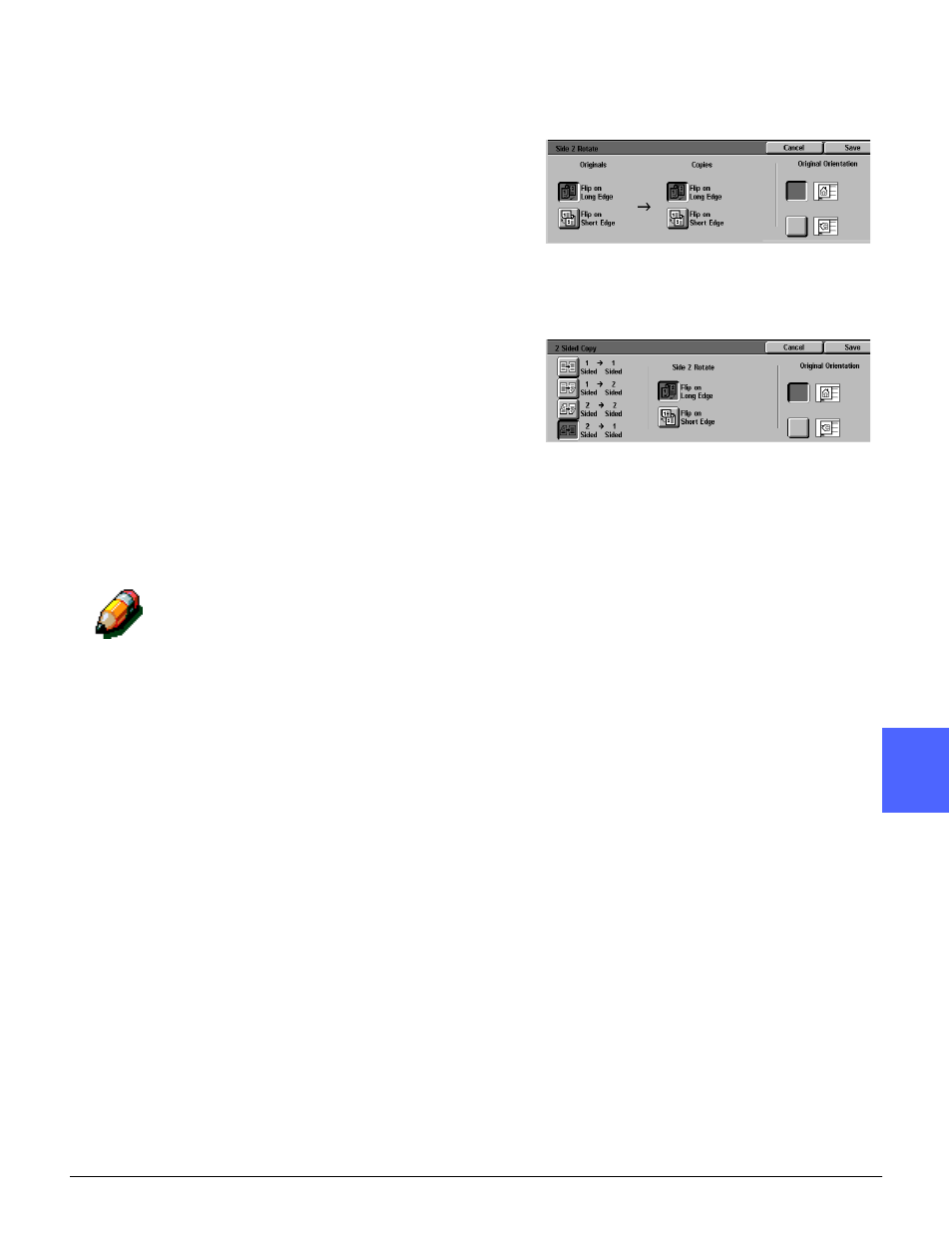

Figure 5: Side 2 Rotate screen
Figure 6: 2 to 1 Sided Copying option
