DUPLEX AUTOMATIC DOCUMENT FEEDER 10–4 DOCUMENT CENTRE CS 50 USER GUIDE
2
3
4
5
6
7
10
Component names and functions
The following items are the principal components
of the Duplex Automatic Document Feeder, as
illustrated in Figure 2:
1 Document Feed Lamp
This lamp displays a green arrow when a
document is inserted correctly into the feeder. This
light can also indicate a document jam.
2 Document Feeder Output Tray
Original Documents are delivered to this tray.
3 Duplex Automatic Document Feeder Tray
Place documents here to start copying.
Document path
Documents placed on the Duplex Automatic
Document Feeder Tray are fed directly onto the
Document Glass in top-to-bottom order.
Copies are delivered to the Document Output
Tray, in order and face down.

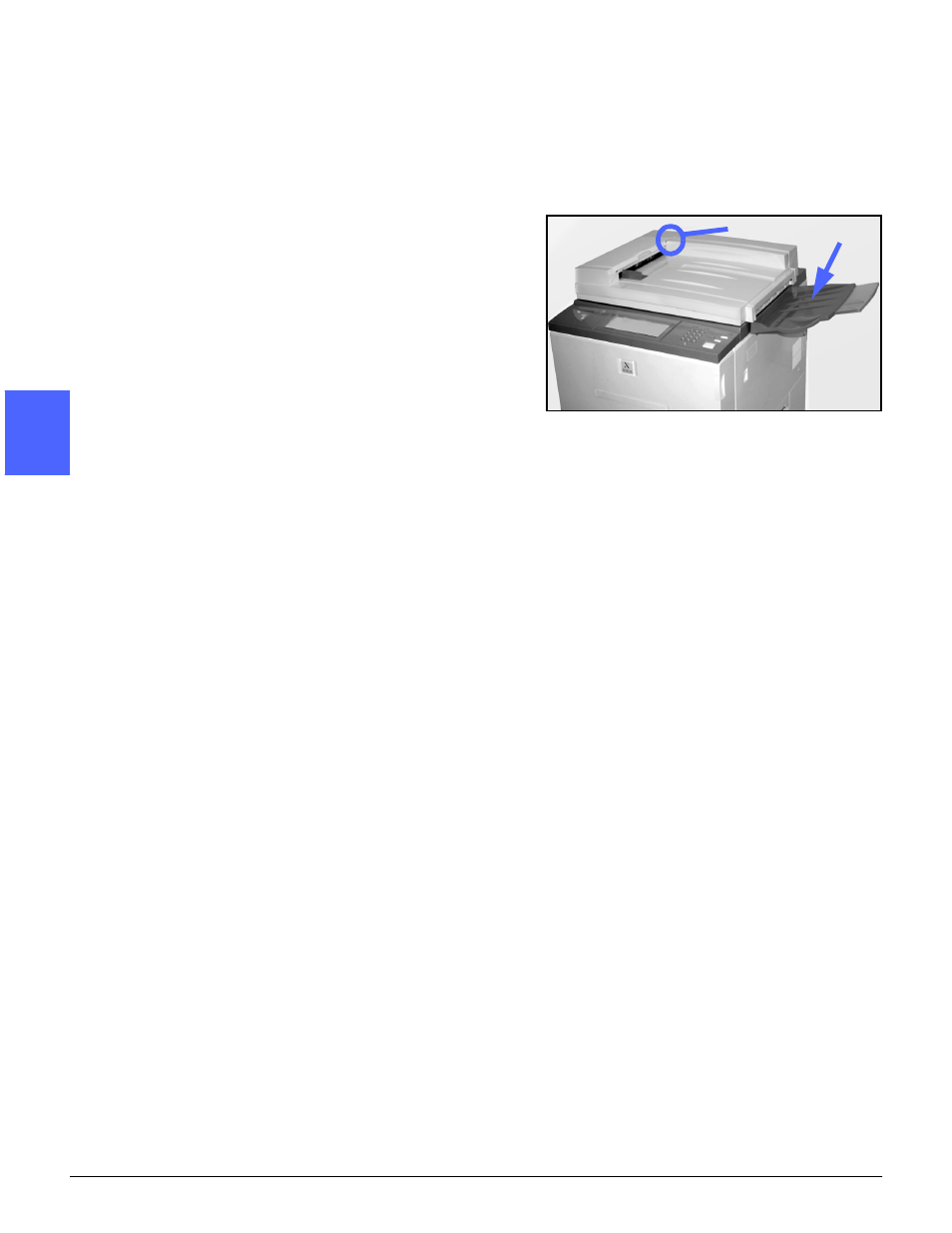

Figure 2: Duplex Automatic Document
Feeder components
2
3
1
