PRIMERGY RX200 S2 User’s Guide
1
Overview
1.3 Component Names and Functions
This section explains the component names and functions of the server.

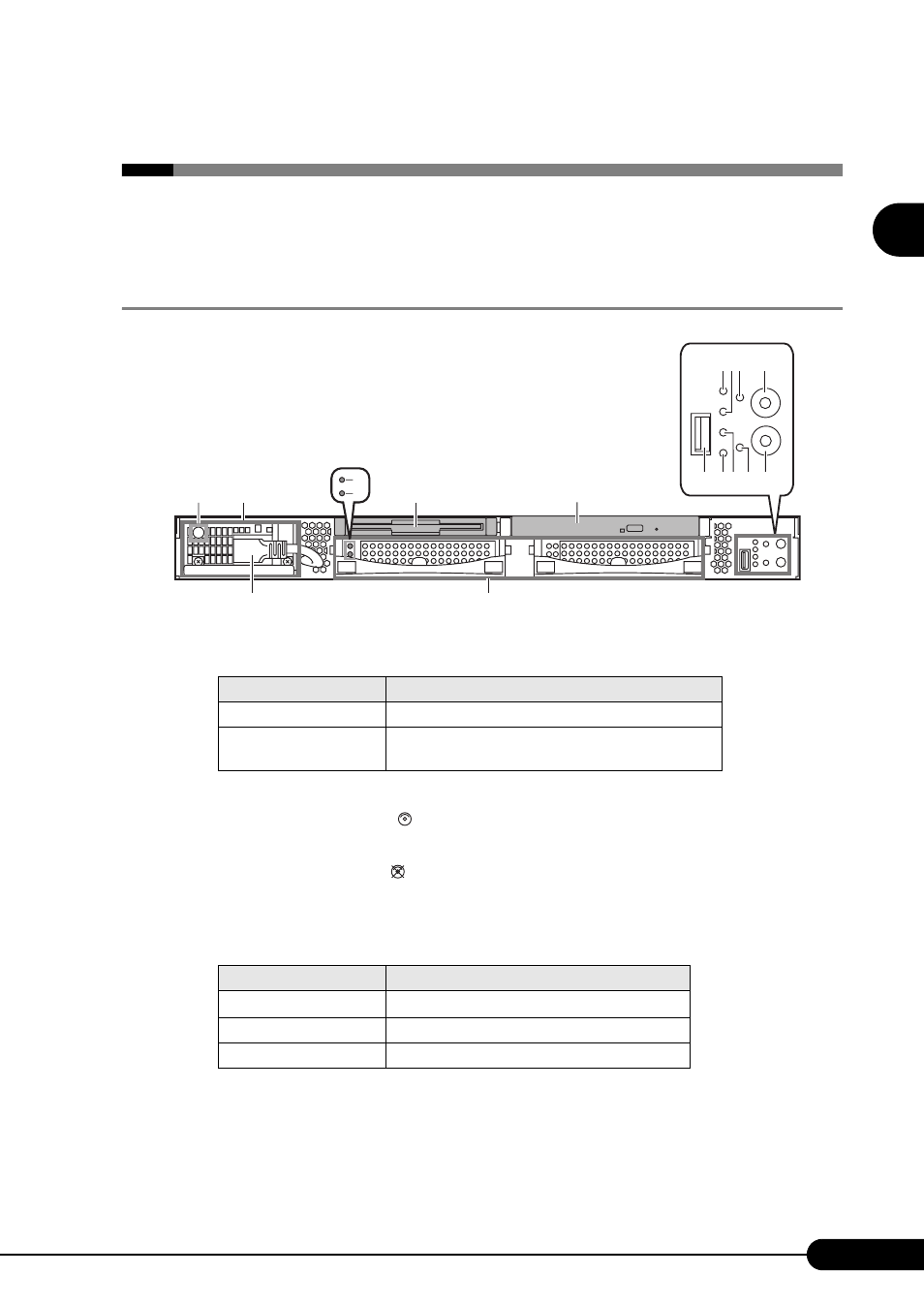

1.3.1 Server (Front View)
a Power supply unit LED
b Power supply unit (optional)
c Hard disk access LED ( )
This LED lights green when data is being written to or read from the hard disk.
d Hard disk failure LED ( )
This LED lights or blinks when the internal hard disks configure an array. It does not light or
blink when the OS is not running (during POST).
e Floppy disk drive
Writes/reads data to/from a floppy disk.
f CD-ROM drive (optional)
Reads data or programs from a CD-ROM.
table: Power supply unit status
LED status Power supply unit status
Lights green The unit is operating normally.
Lights amber An AC power supply is connected or an error is
detected in the power supply unit.
table: Hard disk status
LED status Hard disk status
Off In normal mode or hot spare mode
Lights amber Error detected in a hard disk
Blinks amber During initialization or rebuilding
b e f
gh i j
k m n o
p
a
c
d
l
q
