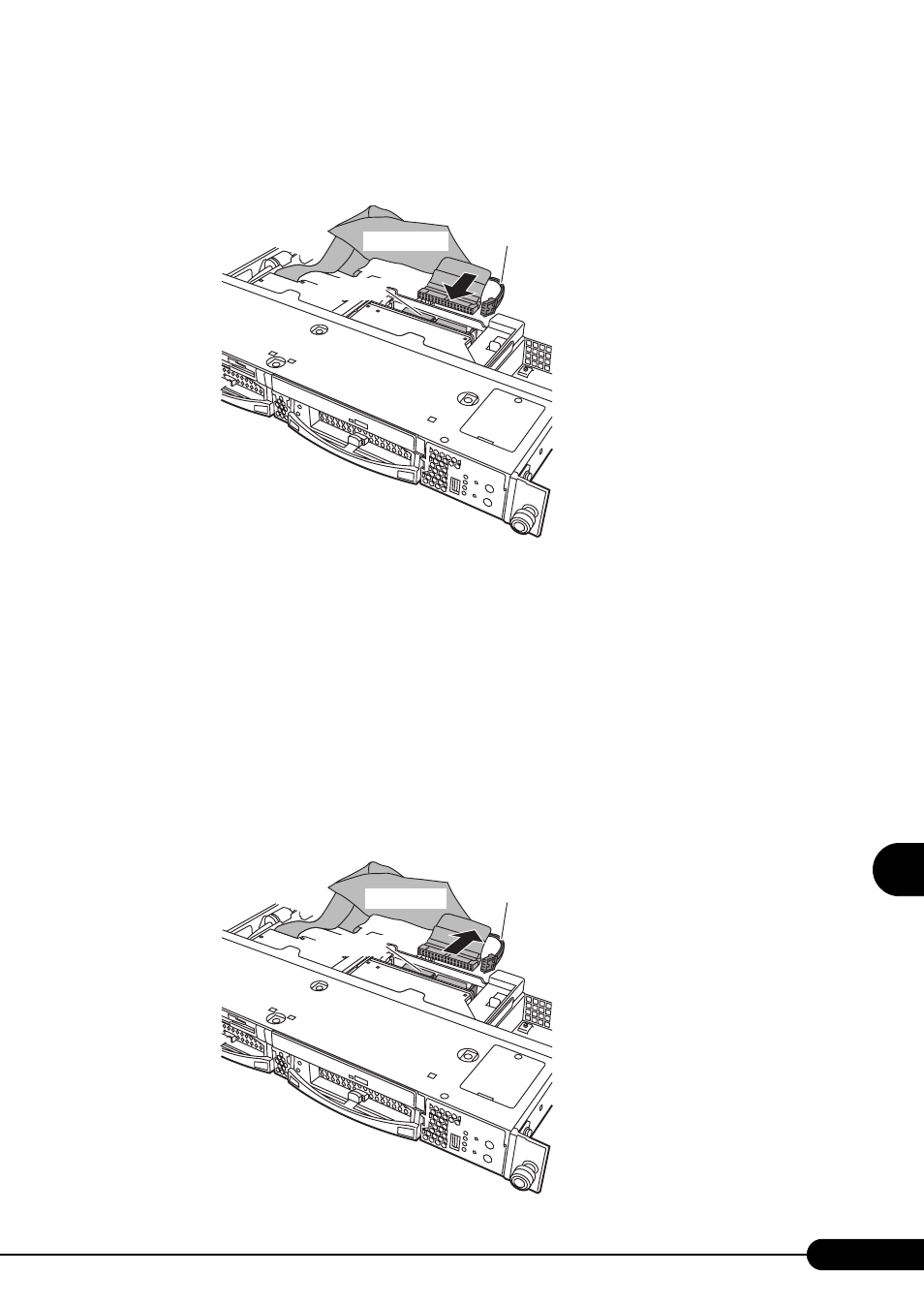

Connect the IDE and power cables.
Connect the IDE and power cables in the server into the connectors on the rear of the CD-ROM
drive.
6
Attach the top cover and return the server back into the rack.
"7.2 Removing and Attaching the Top Cover" (pg.166)
■ How to Remove an Internal CD-ROM Drive Unit
1
Turn the power off and remove the top cover.
"7.2 Removing and Attaching the Top Cover" (pg.166)
2
Touch a metal part of the server to discharge static electricity.
3
Remove the IDE and power cables.
Remove the IDE and power cables connected to the connector on the rear of the CD-ROM drive.
IDE cable
Power cable
Connector
IDE cable
Power cable
Connector
