179
PRIMERGY RX200 S2 User’s Guide
Inst
allin
g I
nte
rn
al O
pti
ons
7
7.5 Installing Expansion Cards
This section explains the types of expansion card, installation procedures, and notes
on expansion cards.
7.5.1 Where to Install an Expansion Card
This server has two PCI slots. Up to two PCI cards can be installed.

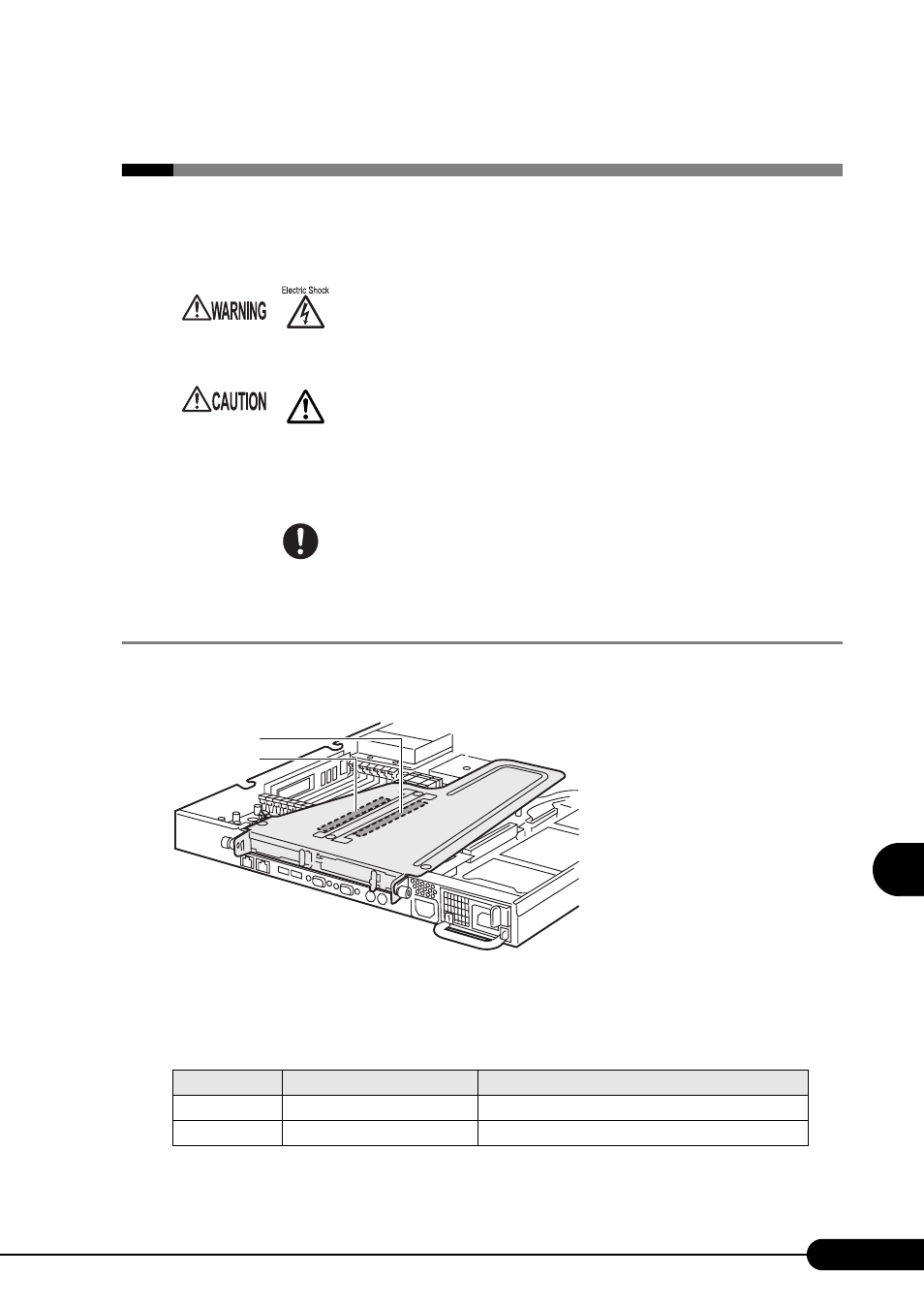

The figure below shows the slot locations.
■ PCI Slot Specifications
The table below shows the PCI slot specifications.
The PCI slots conform to the PCI local bus specifications (Rev. 2.2).
• Before installation, turn off the server and peripheral devices. Unplug the
power cables from the outlets. Failure to do so may cause electric shock
( "1.4.3 Turning Off the Server" (pg.32)).
• The circuit boards and soldered parts of internal options are exposed. They
can be damaged by static electricity.
Before handling them, first touch a metal part of the server to discharge static
electricity.
• Do not touch the circuitry on boards or soldered parts. Hold the metallic areas
or the edges of the circuit boards.
• Expansion cards are susceptible to static electricity. Place them on conductive
pads or keep them in their packaging as long as they are not necessary.
table: PCI Slot Specifications
PCI slot Specifications Remarks
1 64-bit 133MHz, PCI-X For a full height, half length, or low profile PCI card
2 64-bit 66MHz For a low profile PCI card
PCISlot1
PCISlot2
[Rear]
