BaseStation 3200 Advanced Irrigation Controller Manual
Connecting to BL-5200R Series Wall Mount biCoders
Baseline 5200R Series Powered biCoders are specifically intended for retrofit applications and make
combining several old controllers into a single BaseStation 3200 easy and affordable.

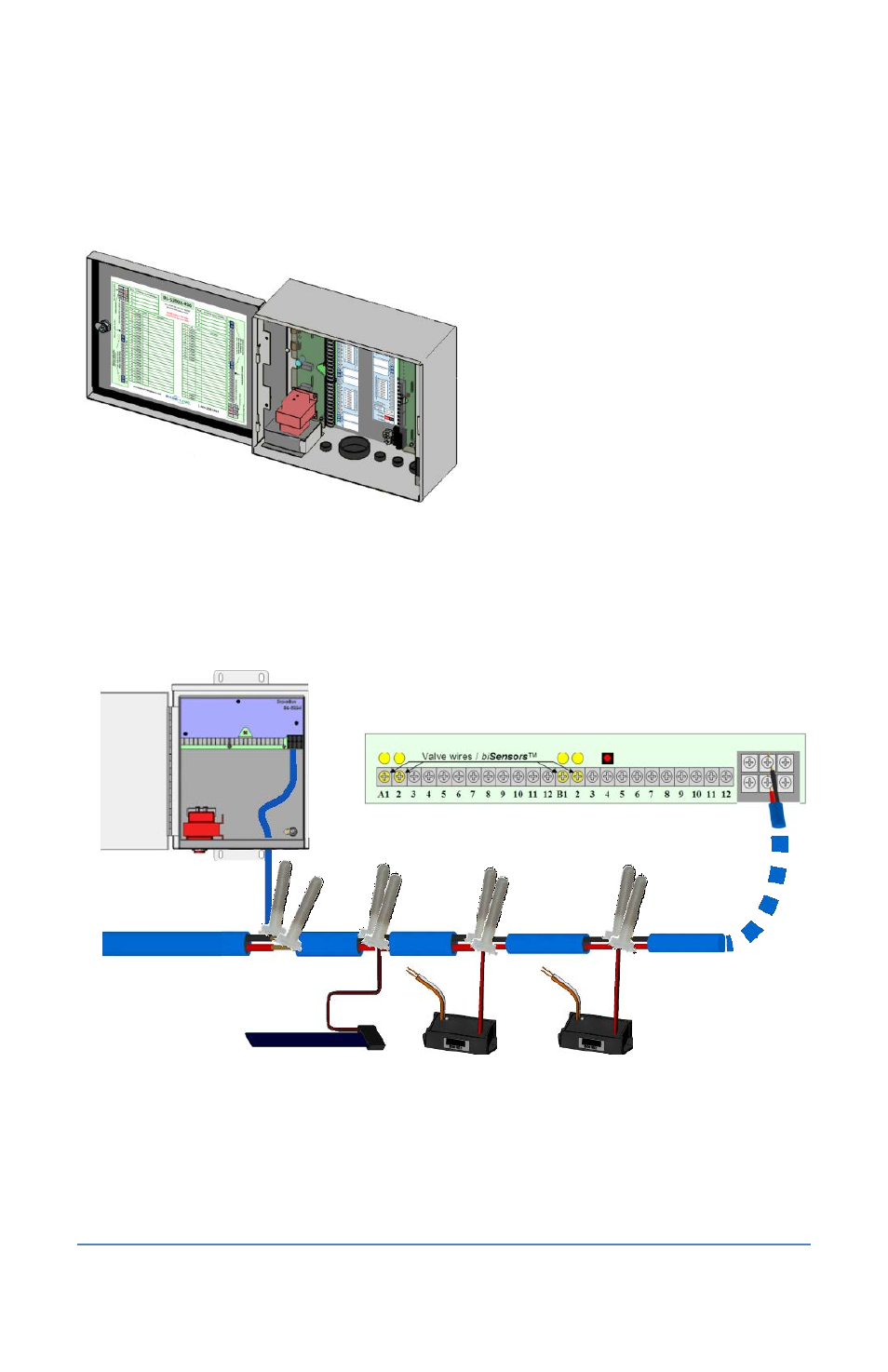

BL-5200X-R48 – 48 Zone Wall Mount biCoder in X-Series Cabinet
5200R Series Powered biCoders require 110 VAC power (240 VAC for –INT versions) and are
available in C-series and X/XS-series wall mount cabinets, or P-series pedestals.
Example Wiring Diagram
You can connect up to 20 5200R Series Powered biCoders to a single BaseStation 3200, which
enables you to retrofit a large site with multiple controllers into a single BaseStation 3200
controller.
BaseStation 3200R
BL-5200C-R24
Two-wire Path
biSensor Valve biCoders
Page 21
