Baseline Systems BaseStation 3200 in X/XS Cabinet - Manual

BL-3200WF-X Wi-Fi Module for X/XS Cabinet
Installation Guide
1-866-294-5847
Rev 9.30.2014
www.baselinesystems.com
Required Tools
 Phillips screwdriver
 Needle-nose pliers
 Crescent wrench
Installing the Wi-Fi Module
1. Remove all parts from the packaging.
2. Power down the controller.

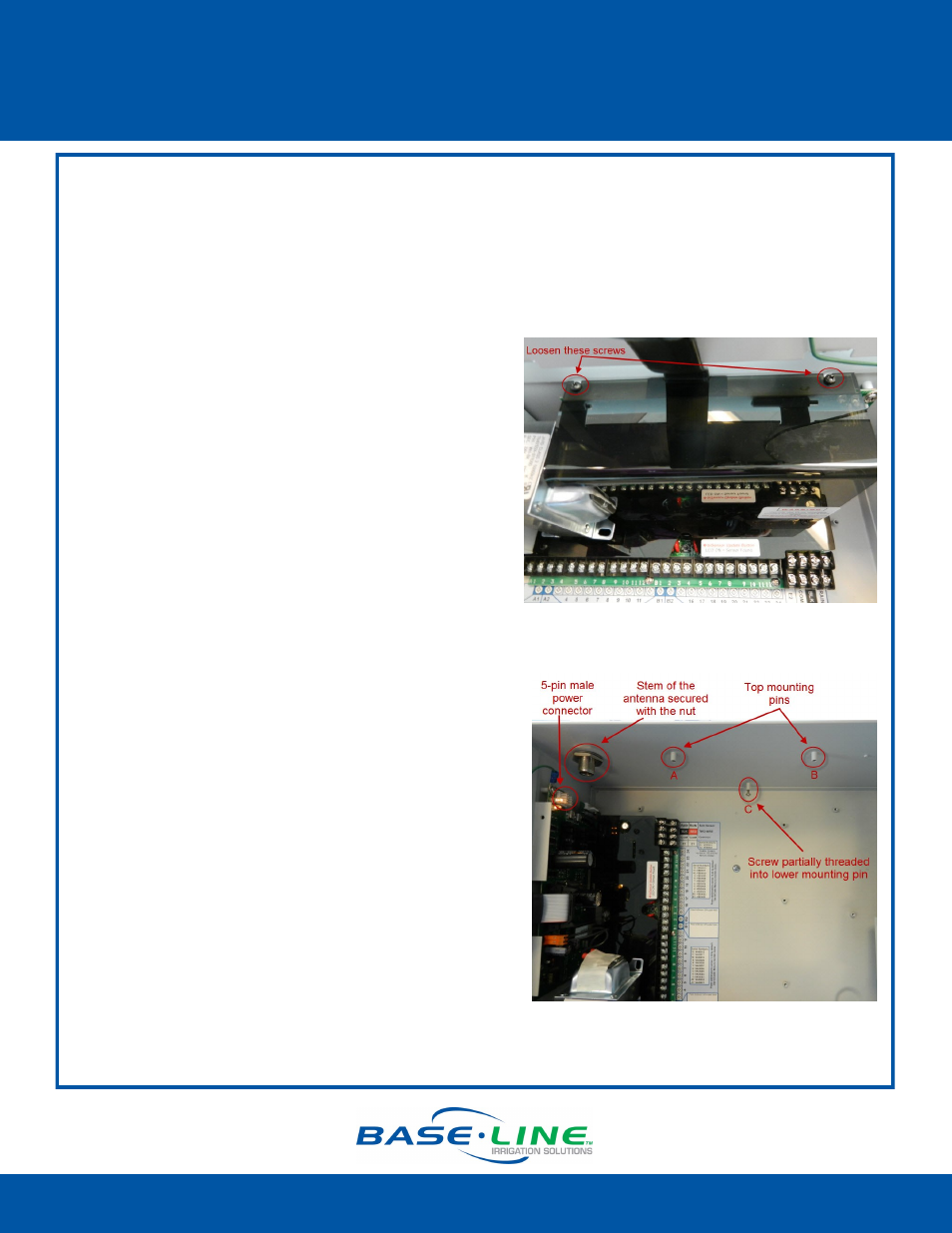

3. Loosen the two screws on the top of the control
board cover.
4. Carefully remove the cover and set it aside.
5. Use needle-nose pliers to remove the rubber
plug from the antenna port on the top of the
cabinet.
6. Remove the nut and the lock washer from the
bottom of the antenna, and then insert the stem
of the antenna into the port on the top of the
cabinet.
7. From the inside of the cabinet, place the lock
washer on the stem of the antenna, and then
thread the nut onto the stem. Use a wrench to
tighten the nut sufficiently to ensure that the
antenna makes good contact with the outside
of the cabinet.
8. Partially thread one of the provided mounting
screws into the lower mounting pin ( C ) on the
inner top of the cabinet.
9. Connect the end of the antenna cable onto the
stem of the Wi-Fi module and hand-tighten it.
10. Position the notch on the edge of the Wi-Fi
module mounting plate on the partially
threaded screw (
C ). Tighten the screw so it holds
the mounting plate in place.
11. Align the holes on the Wi-Fi module mounting
plate with the mounting pins ( A & B ). Use the
screws provided to securely attach the module
inside the cabinet.
Continued 
