The purpose of this tutorial is to explain the use of the display section. The other
sections and their use are described later in this manual.
The display section is used primarily for setting the plotter’s configuration, so,
before the tutorial, print the current configuration. You can then return to this
afterwards.
1
Make sure that media is loaded. See page 3-10 for loading information.
2
Print the
Current Configuration
plot, by pressing the
°
and
± keys
simultaneously.
STATUS
Ready
Keep the plot for later reference.

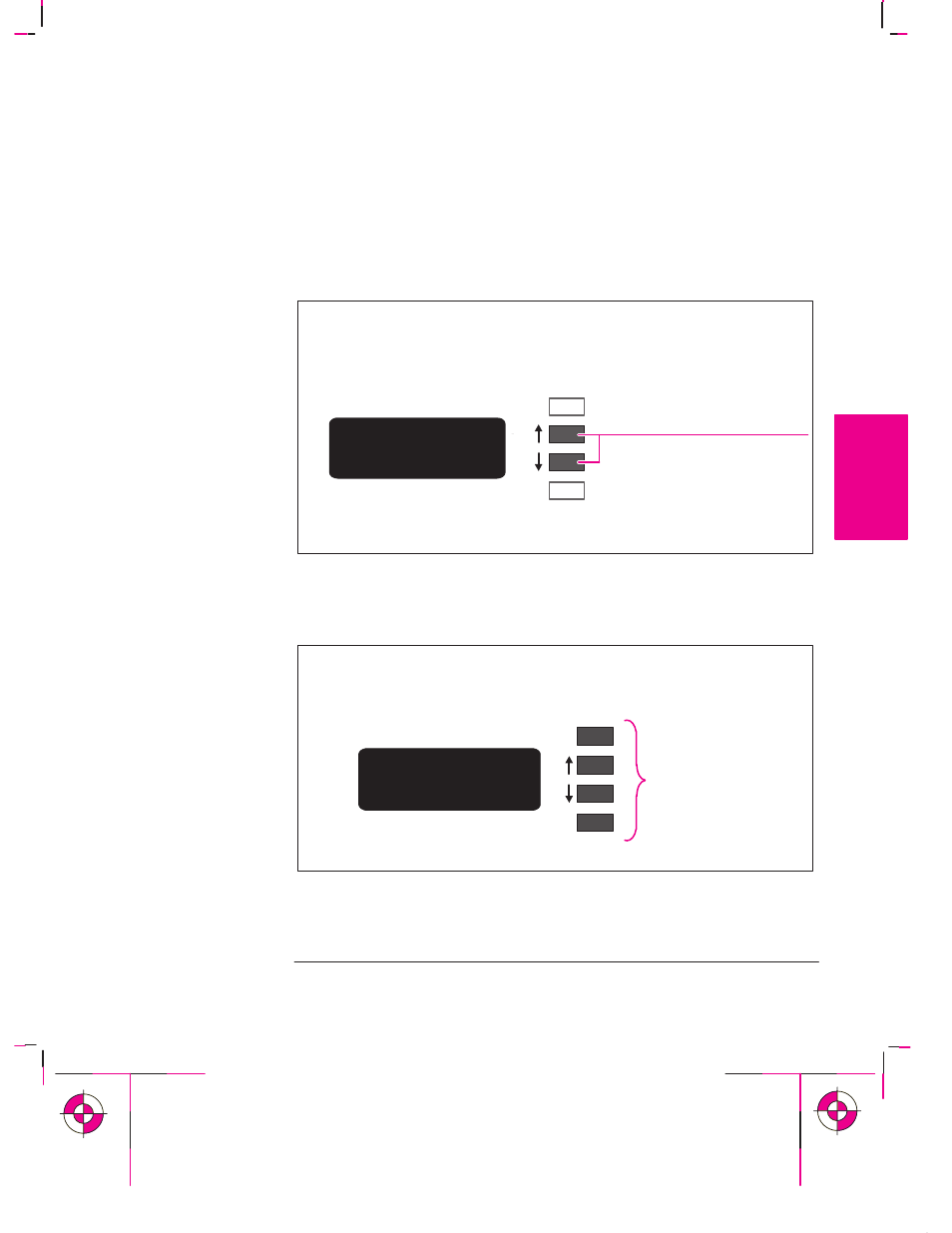

Press these two
simultaneously
Previous
Enter
The Display Section
STATUS
Ready
The display section of the front panel consists of the display itself and the four
display keys to its right (
Previous
,
↑
,
↓
and
Enter
).
Previous
Enter
Display keys
Learning How To Use the Front-Panel Display
