Full menu mode
Default: 0
Affects next plot sent
Stays after power off
Page format
Rotate
4-7
Company confidential. Murillo/Ravillo User’s Guide. Final Freeze Status: Frozen
This is the cyan on page 4-7 (seq: 113)
This is the black on page 4-7 (seq: 113)
Rotating a Plot
Rotating a Drawing from the Front Panel
Your Drawing can only be rotated from the Page format / Rotate option in the front
panel if:
Queueing and Nesting are off (see page 6-10), and
the file contains no raster data.
If you are using the Microsoft Windows driver supplied with this plotter, your files
do contain raster data and therefore you cannot use this
Rotate option. The normal
line drawings of most CAD software do not contain raster data, and can use this
Rotate option.

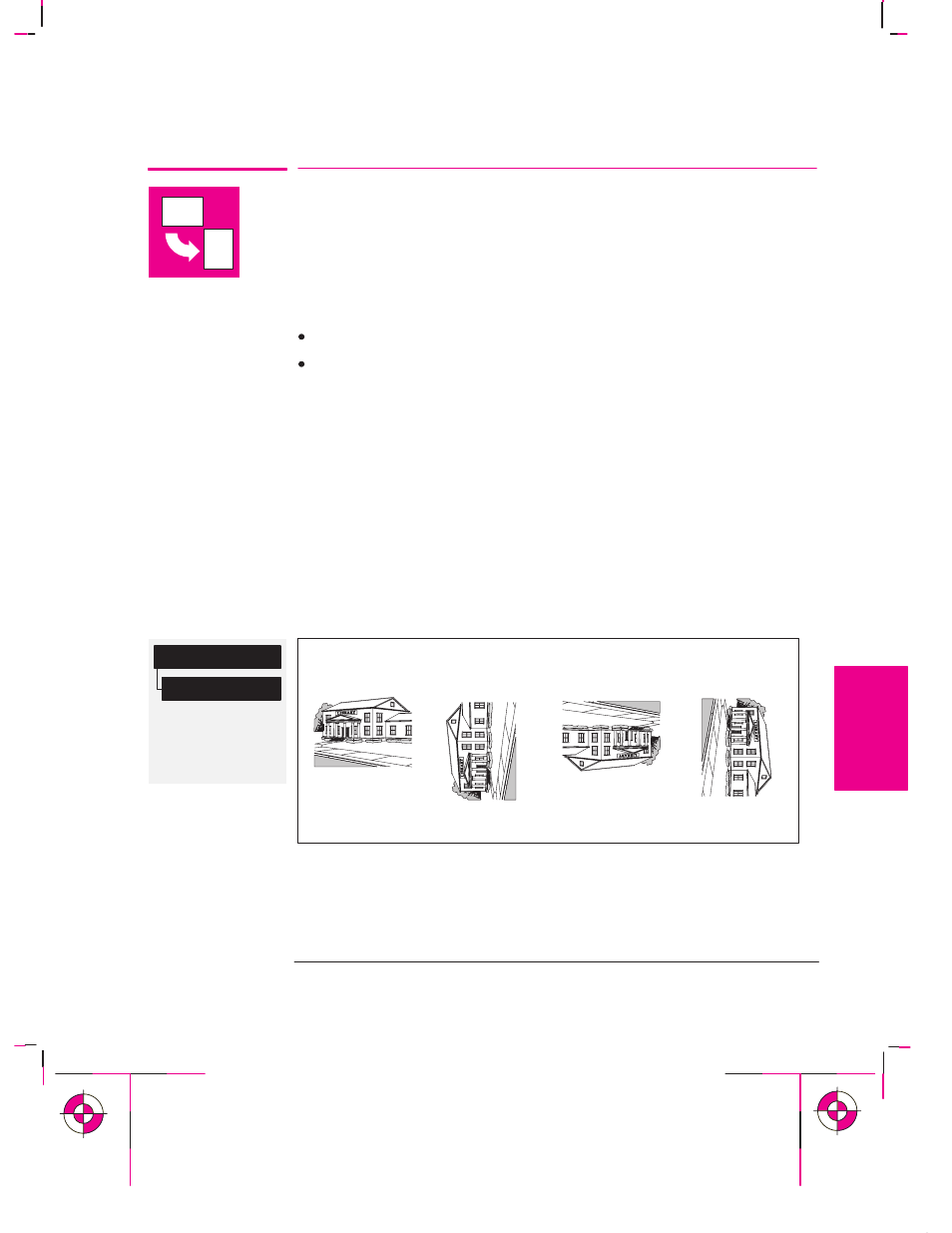

To Rotate a Plot from the Front Panel
Except in the circumstances stated above, you can rotate a plot from the plotter’s
front panel, without changing the drawing in your software. The options are 90,
180 or 270 degrees relative to the drawing’s orientation in your software. The
rotation is counterclockwise, as shown below.
0 _ 90 _ 180 _ 270 _
P
AGE
FORMA
T
4
Controlling the Page Format
Rotating a Plot
