Kalypso Machine Control Interfaces Installation Instructions 57
Test Configuration and Operation
Test Configuration and Operation
With VDRCS installed and the Kalypso and Encore systems configured,
you should have machine control from the Kalypso Main panel. Source
buttons mapped to devices should no longer have a
? status indicator.
If control is not working properly, you can use the following procedures to
test whether the problem resides on the Encore system or the Kalypso
system.
Confirm Device Channel Configuration

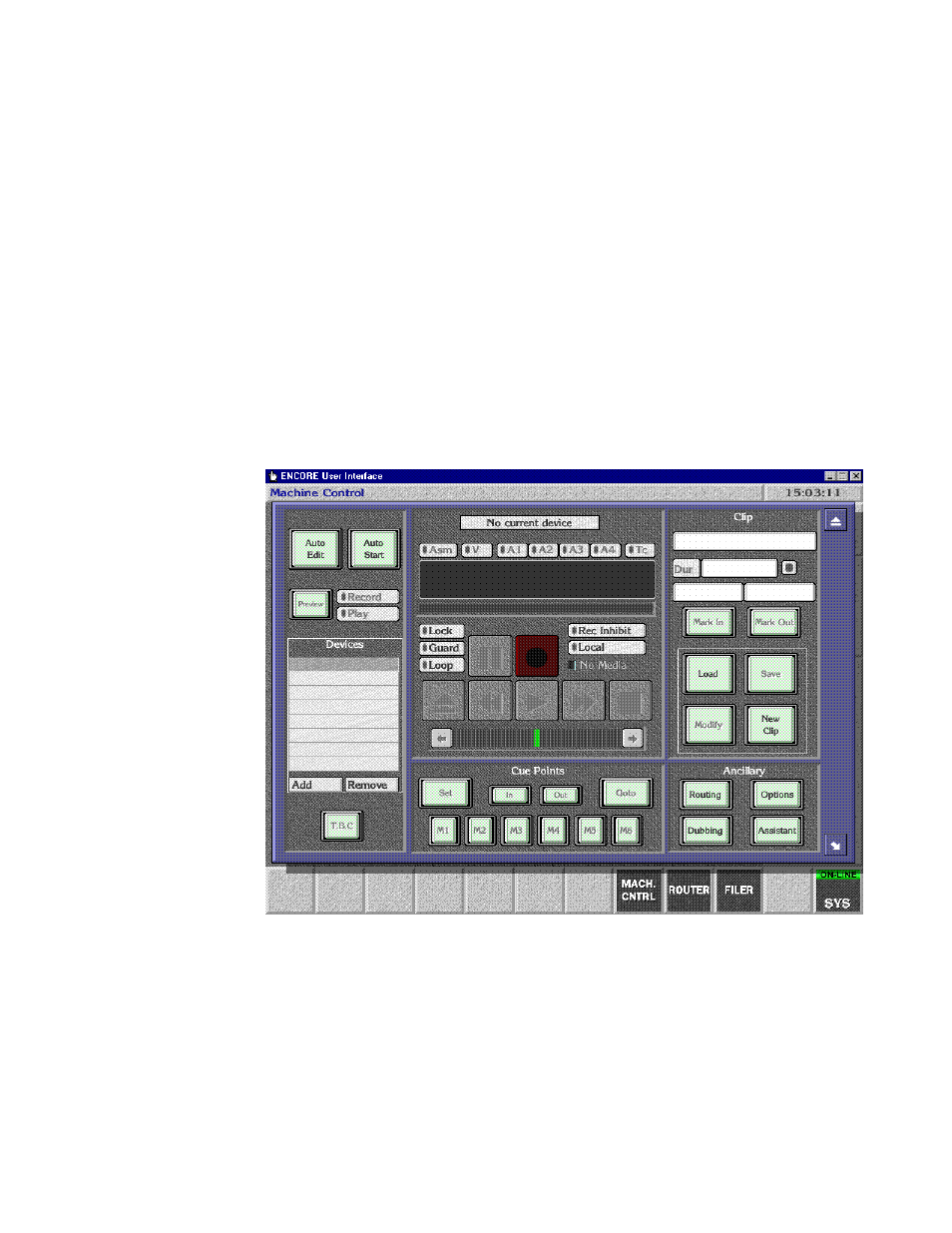

1. Access the Local Machine Control Panel by touching the MACH CNTRL button
on the lower task bar. A screen like Figure 49 will appear.
Figure 49. Encore Local Machine Control
