Section 2 — Profile Interface
9.
Select
Config
on the task bar on the right. A configuration window will
appear (
).

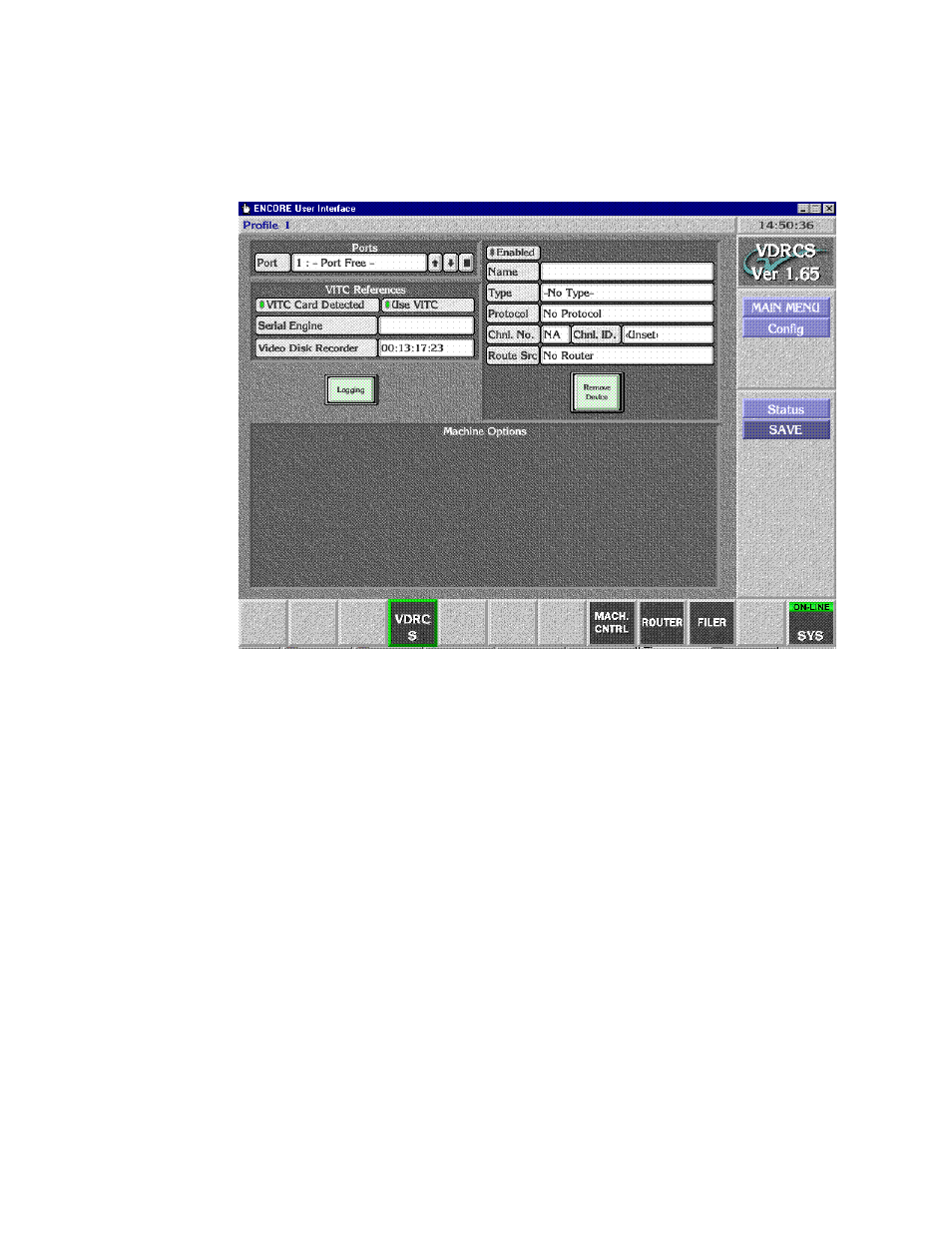

Figure 46. Encore Profile Device Configuration Window
Name Profile Device and Set Device Type
10.
Click on the
Name
field, backspace over any existing characters and type
Profile1
(no space) and then press the
Enter
key.
11.
Set the
Type
field to
Profile PDRx00
(depending on which type of Profile
you are using).
Select Port and Set Profile API
12.
Click on
Port
on the upper left corner of the screen and choose the port
number. Choose
Port 1
to start, then click on the angle arrow Enter
button.
13.
Set the
Protocol
field to
Profile API
.
Set Channel Number and ID, and Enable
14.
Set the
Chnl. No.
field for the Profile channel. Use
1
for the first Profile
channel.
