36 K2 Dyno Controller Operator Manual 14 June 2011
Chapter 3 Playback

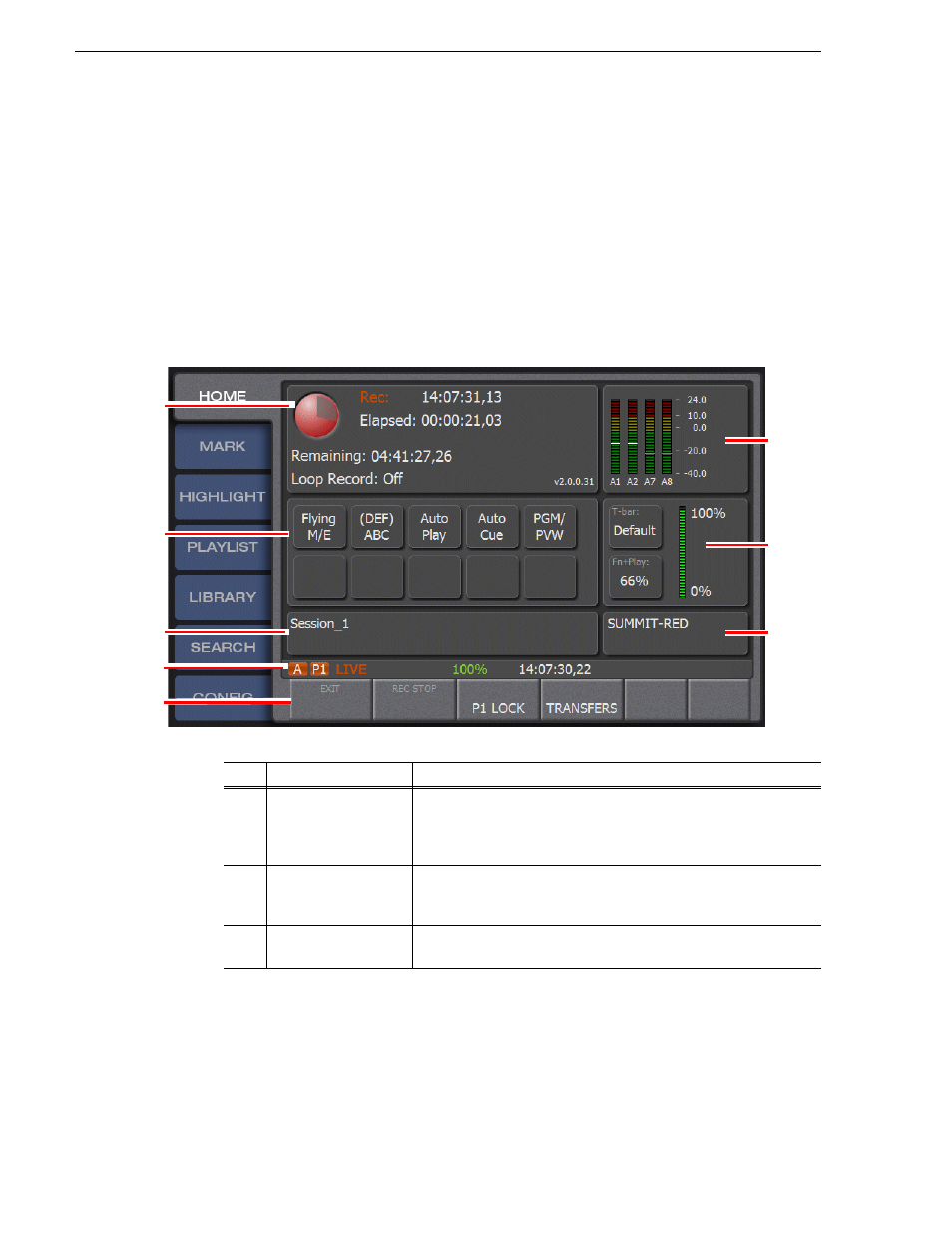

Components in the Home screen
The Home screen is a screen for viewing basic information such as the timecode for
the recording data, playback item remaining time, and selected camera.
1. Touch the Home tab.
The Home screen appears. For more information about the indication meanings
and individual panel functions, see the following table. To perform functions
(indicated by the shaded area in the table) that are displayed at the top of the menu
panels shown at the bottom of the screen, press the
Shift button, and then touch the
desired menu panel. For more information on how to use the Shift button, see
"About Shift button operations" on page 21 .
No. Name Function
(1) Recording panel Shows the free space in the Summit and time display. The remaining
storage time is available in terms of an Event Day. Dyno takes into
account the available time for all Record channels.
Loop length in
channel list This is displayed only if the LoopRec setting is turned on.
The train length for the currently selected camera angle and the train
length for all the angles are displayed.
(2) Audio Meters panel Shows the audio meters. To view or edit audio configuration
selections, touch the panel. If there is no audio, this panel is blank.
(1)
(3)
(7)
(8)
(2)
(4)
(5) (6)
