15 smbus connections, 16 real time clock, 15 smbus connections 5.16 real time clock – Artesyn ATCA-7368 Installation and Use (June 2014) User Manual

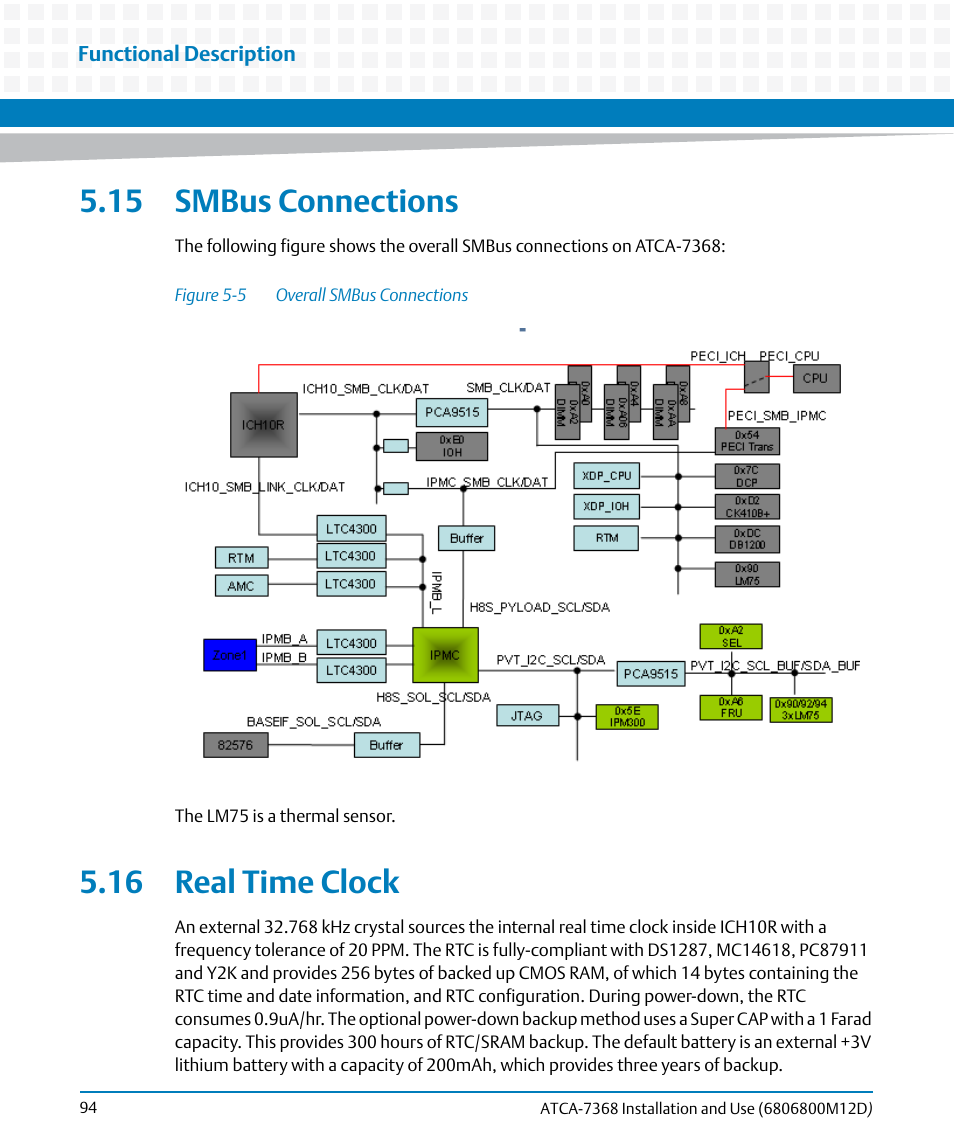

Page 94: Figure 5-5, Overall smbus connections
