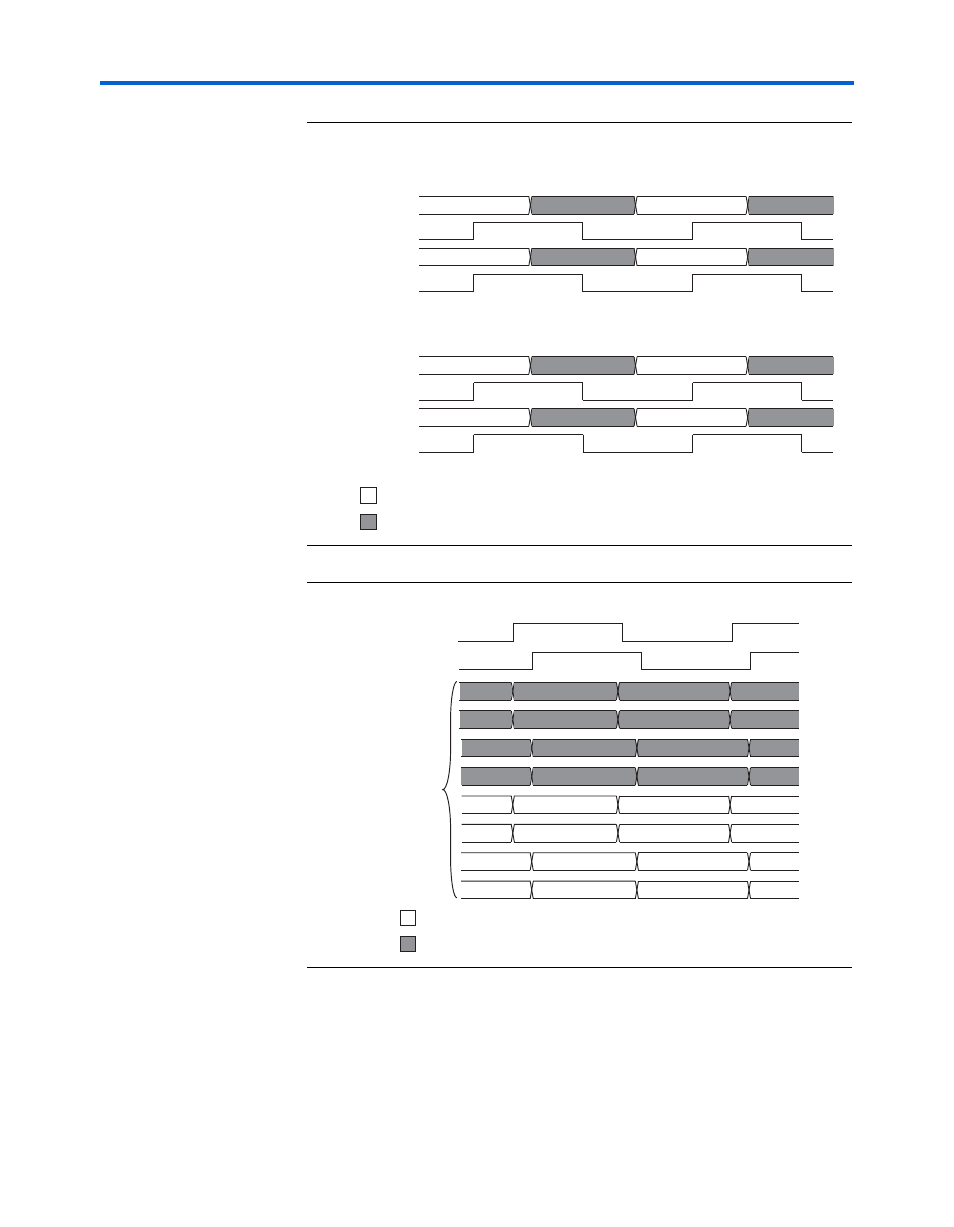

Figure 2–7. Memory Interface

Figure 2–8. Datapath Interface

Figure 2–8

shows that any read data captured on the rising edge of the

delayed rldramii_qk[] signal is located in the lower half-bit locations
of control_rdata[]. Any read data captured on the falling edge of the
delayed rldramii_qk[] signal is located in the upper half-bit locations

rldramii_dq[35:27]

RLDRAM II

Device 1

RLDRAM II

Device 0

rldramii_qk[3]

rldramii_dq[26:18]

rldramii_qk[2]

rldramii_dq[17:9]

Data associated with rldramii_qk[] rising edge

rldramii_qk[1]

rldramii_dq[8:0]

rldramii_qk[0]

N

P

M

N

O

P

I

J

K

L

E

F

G

H

A

B

C

D

Data associated with rldramii_qk[] falling edge

capture_clk[1]

control_rdata[]

Data associated with rldramii_qk[] rising edge

capture_clk[0]

N

P

J

L

F

H

E

G

I

K

M

O

A

C

B

D

Data associated with rldramii_qk[] falling edge
