Section 3: System Menu Programming
33
Additionally there are setups for delta wing type models (Elevon):
2AILE
2AILE+1FLAP
2AILE+2FLAP
5. Once you have selected your wing types, press the jog dial to confirm your selection.

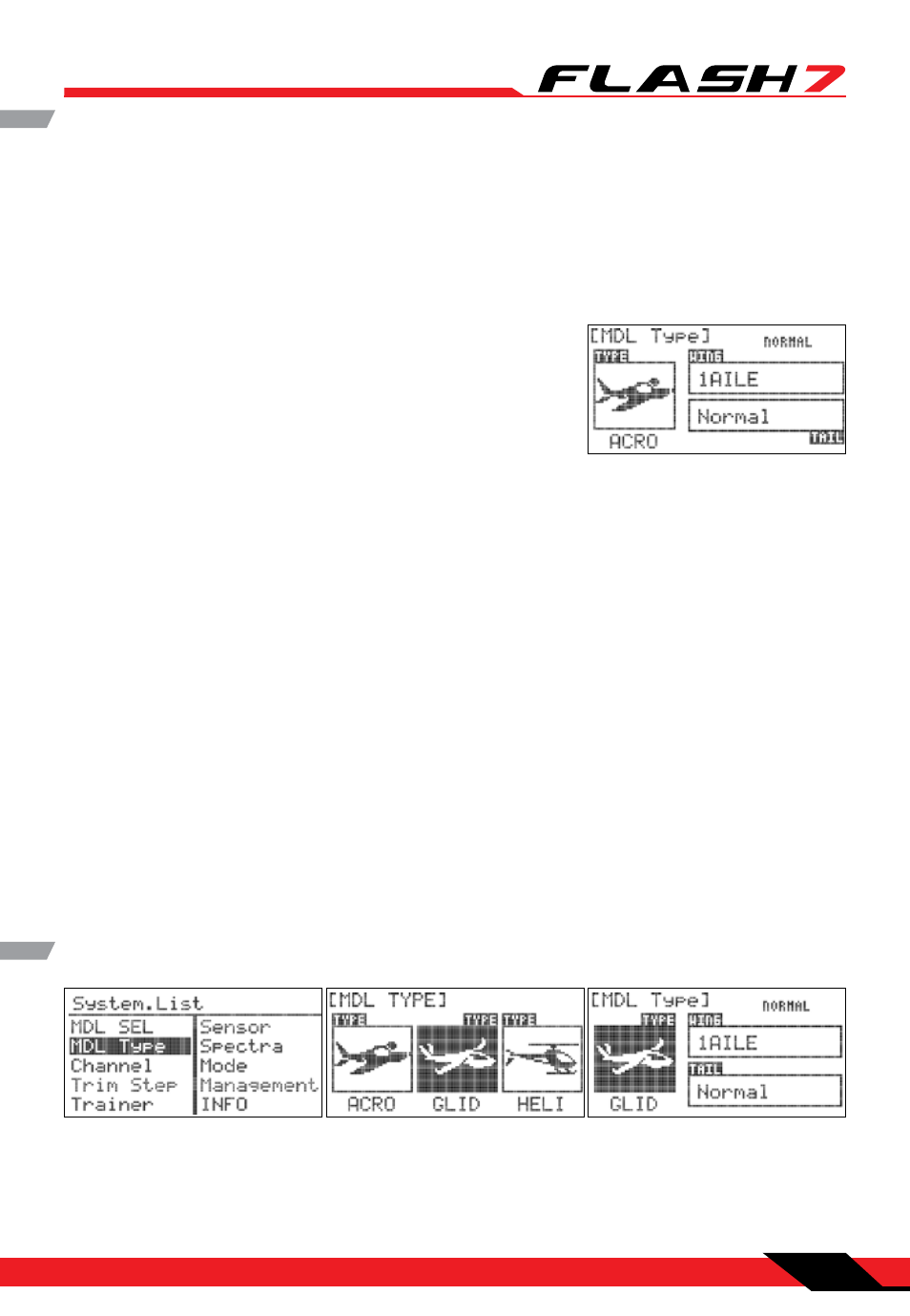

Model Type ACRO Menu Programming cont.
6. Scroll to “TAIL” and press the jog dial to activate the menu. The
choices for tail type are dependent on the type of wing you
selected.
The tail types you may choose with the basic ACRO wing types are:
7. Select the tail type that your model has and press the jog dial to confirm your selection.
8. Use the back button to return to the system menu.
Model Type GLID Menu Programming
1. From the System Menu select
MDL TYPE. 2. Press the jog dial once to enter
the Model Type Selection Menu.
Scroll to model type GLID. 3. Press the jog dial again to enter
the GLID setup menu.
NORMAL:
Rudder is located on a vertical stabilizer and elevator is on a horizontal stabilizer.
V-TAIL:
Two control surfaces in a V-configuration operate together providing both yaw (rudder) and pitch
(elevator) control.
Ailevator:
Each half of the elevator is controlled by a dedicated servo to provide pitch (elevator), and roll (aileron) control.
The tail choices if you chose one of the Delta Wing types are:
None: For Delta Wing Models without a rudder.
1Servo: For Delta Wing Models with a single rudder servo.
2Servo: For Delta Wing Models with dual rudder servos.
