9-4 Installing the AO-10 Analog Output
Module

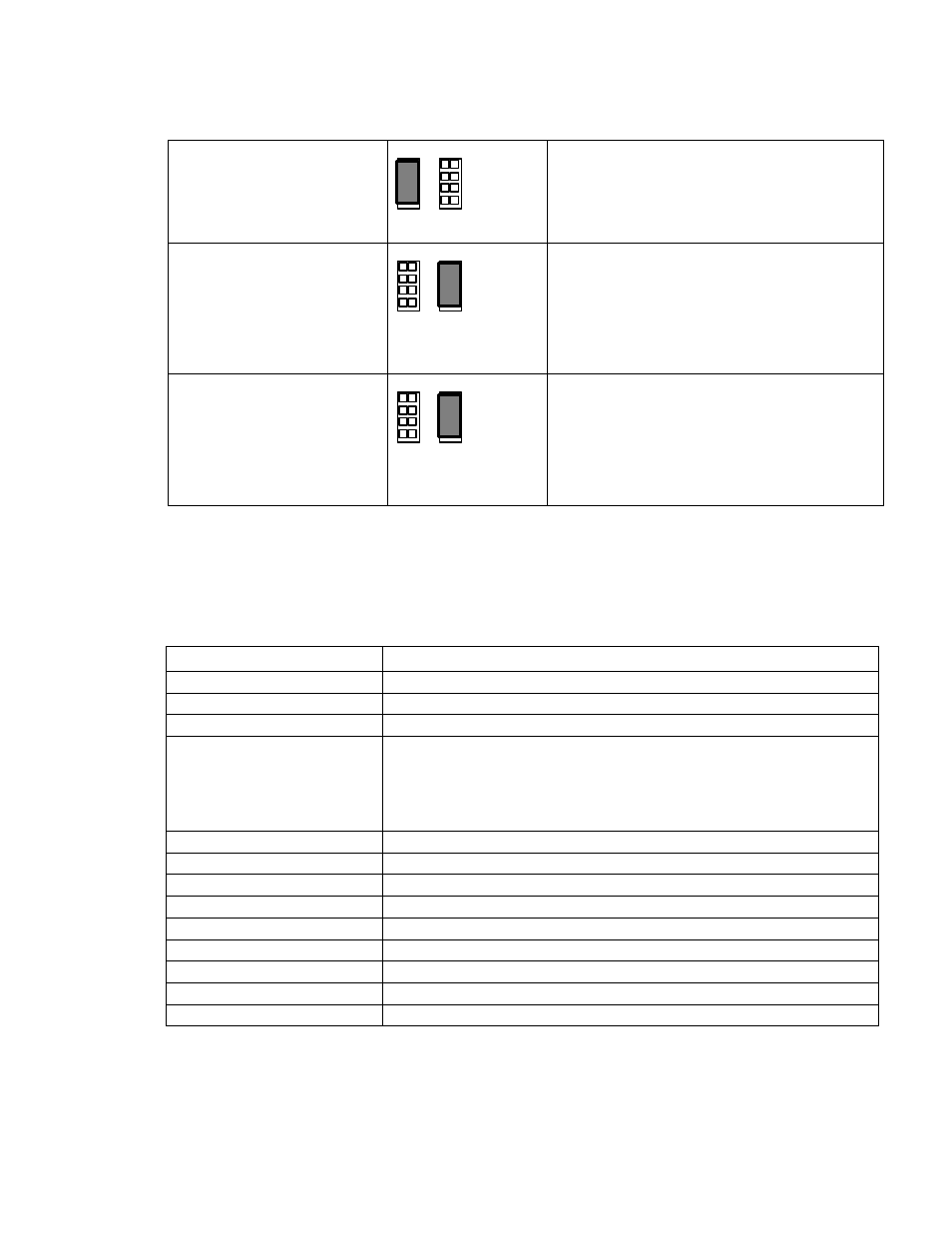

Output 2
0-10V Output
O
u
tp
u
t
#
2
0-10V 4-20mA
This setting is used for generating a 0-10V
output from the 12-bit D/A converter via a
voltage amplifier. Output load may be as low
as 1K Ohms.
Output 1
Programmable range within
0-20mA
O
u
tp
u
t
#
1
0-10V 4-20mA
This setting is used for generating any output
range from 0-20mA (software
programmable), i.e., 4-20mA from the 12-bit
D/A converter via a current amplifier. The
AO-10 sources current only - it cannot
function as a current sink. Output load may
be as low as 1K Ohms.
Output 2
Programmable range within
0-20mA
O
u
tp
u
t
#
2
0-10V 4-20mA
This setting is used for generating any output
range from 0-20mA (software
programmable), i.e., 4-20mA from the 12-bit
D/A converter via a current amplifier. The
AO-10 sources current only - it cannot
function as a current sink. Output load may
be as low as 1K Ohms.
The AO-10 module is installed in a Type 1 or Type 1D Base Plate. Wiring
connections to the AO-10 module are presented in table 9.2. Specifications for the
AO-10 module are shown in table 9.3.
Table 9.2 AO-10 Analog Output Module Wiring Connections
Screw Terminal Wiring Connection
1 and 2 Incoming network wiring, TP/FT-10 channel, polarity-insensitive
3 and 4 Outgoing network wiring, TP/FT-10 channel, polarity-insensitive
5 Unused
6 and 7 Incoming power wiring, 16-30VAC or VDC @4.2VA, polarity-
insensitive. If using DC power it is good practice to maintain
continuity of the power polarity throughout the network. Terminals 6
and 8 should be the same polarity, and terminals 7 and 9 should be
the same polarity.
10 + input of analog output 1
11 - input of analog output 1
12 + input of analog output 2
13 - input of analog output 2
14 Unused
15 Unused
16 Unused
17 Unused
18 Unused
Table 9.3 LonPoint AO-10 Analog Output Module Specifications
