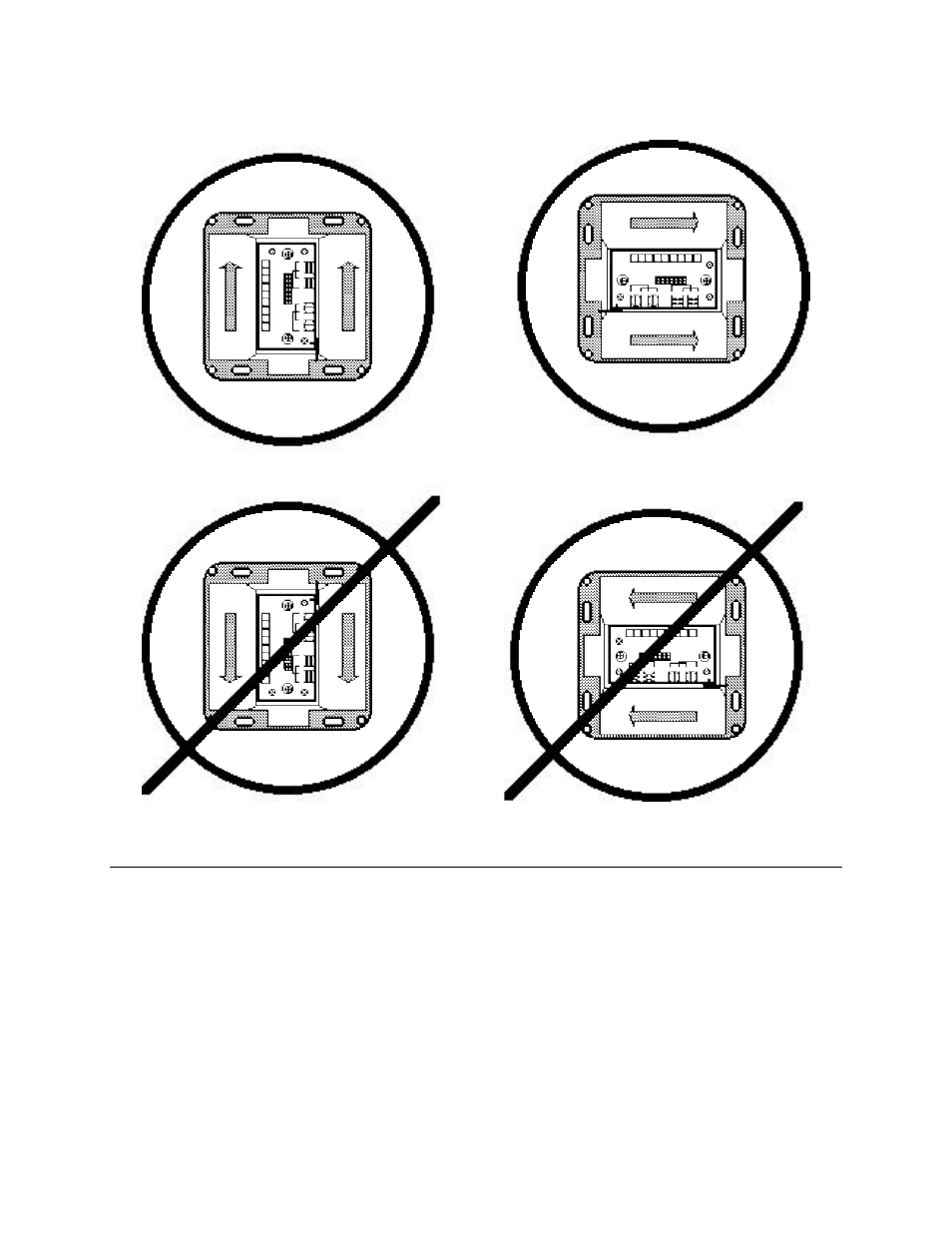

Figure 4.3 LonPoint Type 1 Base Plate Mounting Orientations
Installing A Compatible Electrical Box
Compatible electrical boxes that will accept a Type 1 Base Plate include a 4” square
electrical enclosure (Raco model No. 232, 236, 7232, 7054 or equal), two-gang PVC
switch box (Raco 7834 or equal), and Echelon’s Model 48001 EuroBox for wall or
electrical box applications.
A 4” square electrical enclosures should be either affixed to a wall or to equipment
using suitable mounting screws, or recessed using a suitable mounting clamp (figure
4.4). Due to variations in the location of knock-outs, care must be taken to ensure
that 3/4” conduit fittings do not interfere with the Base Plate when it is installed in
the electrical box; 1/2” conduit fittings have not been found to cause an interference
problem.
