4-26 Installation and Wiring of Base Plates
The base plate contains two integral DIN rail locks which securely grab a 35mm
DIN rail onto which the base plate is mounted. The Base Plate may be used on both
35mm x 7.5mm and 35mm x 15mm DIN rails. To release the Base Plate from the
DIN rail, sequentially insert a flathead screwdriver into each DIN rail release tabs
and gently pull away from the DIN rail (figure 4.24).
Four keyhole slots are provided for affixing the Type 2D DIN Base Plate to a wall or
panel (figure 4.25).
The 2D Base Plate is supplied with a Jumper Plug that connects the power and
network connections between adjacent base plates. The Jumper Plug is shipped
inserted into the main cavity of the Base Plate, and can be removed by gently
pulling the plug handle in the direction of the mounting arrow. The Jumper Plug
must be removed before a LonPoint Router can be inserted into the Base Plate.

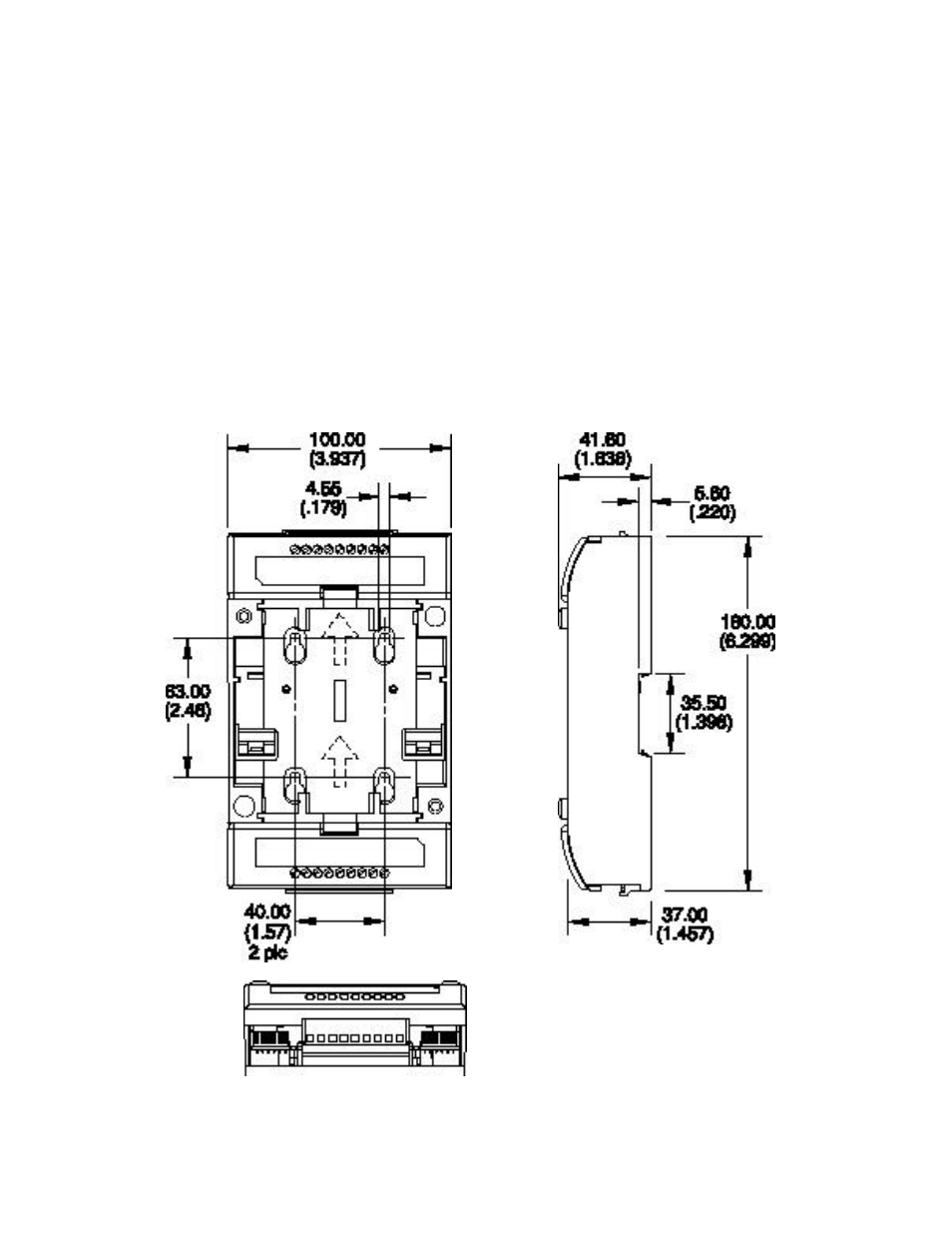

Figure 4.24 DIN Rail Base Plate Dimensions (Dimensions are in mm (inches).)
