Echelon LonPoint Module - Manual (Page 45)

LonPoint Hardware Guide 4-9
1 2 3 4 5 6 7 8 9
Network 16-30VAC or VDC

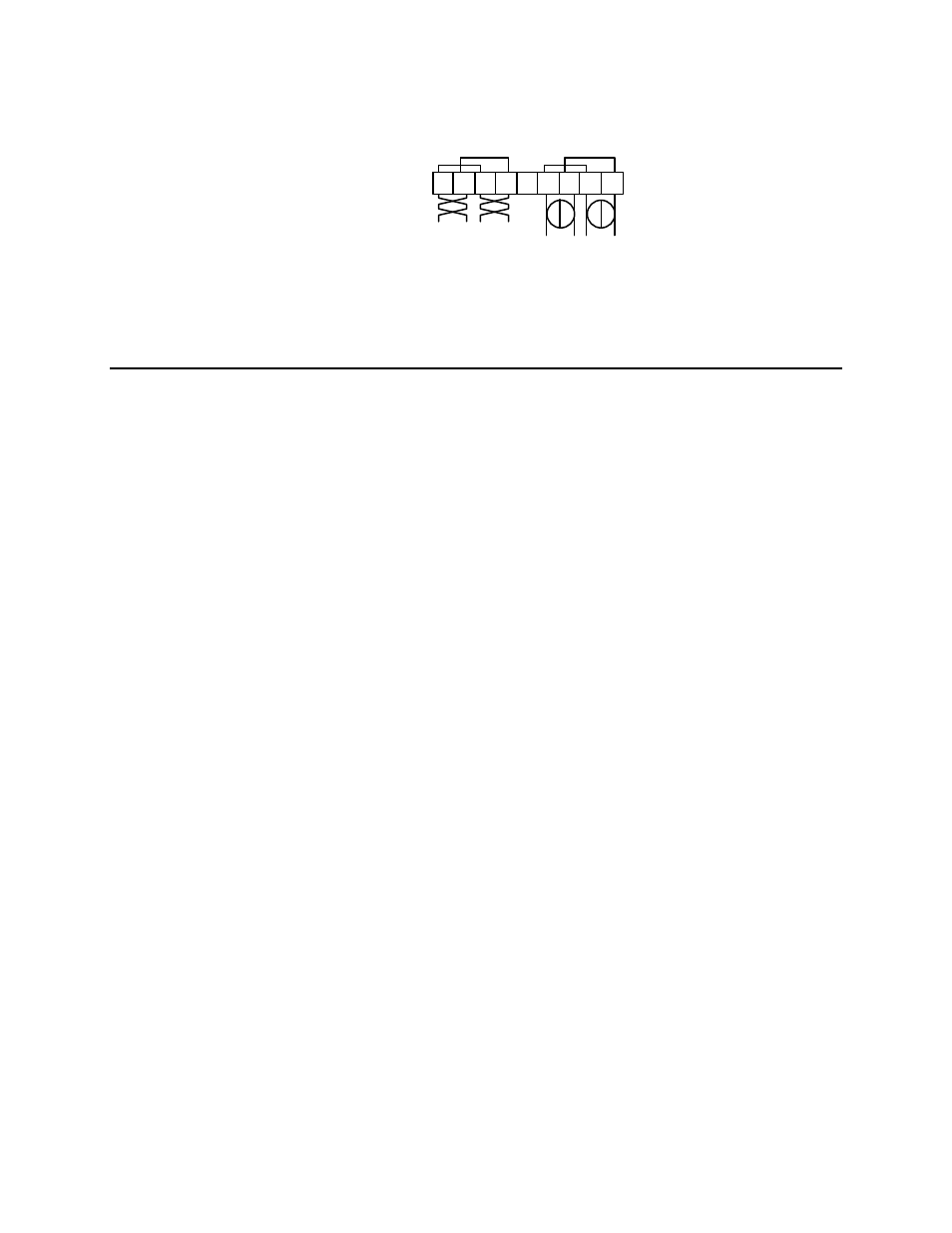

Figure 4.8 Base Plate Power and Network Wiring Connections
See chapters 5 through 9 for specific I/O wiring connections.
LonPoint Type 1D DIN Base Plate Installation
Figure 4.9 presents a detailed view of the front side of the base plate. The circuit
board inside the Type 1D DIN Base Plate includes an arrow with the designation
"1A," designating it as a Type 1 Base Plate with a Revision A circuit board. The 1D
Base Plate is intended to be installed either on a 35mm DIN rail, or using the
integral keyhole slots, on a wall or panel. Two arrows indicates the vertical
orientation of the Base Plate that will provide the best viewing of the front panel
legends.
