For continental applications, a third mounting option is to affix the EuroBox to a
recessed 6.5cm diameter plastic DIN box (Kaiser or equal). Two keyhole slots are
provided in the EuroBox to accommodate DIN box mounting, as shown in figure 4.6.
Use the screws provided with the DIN box and ensure that suitable cabling holes are
drilled in the EuroBox prior to mounting.

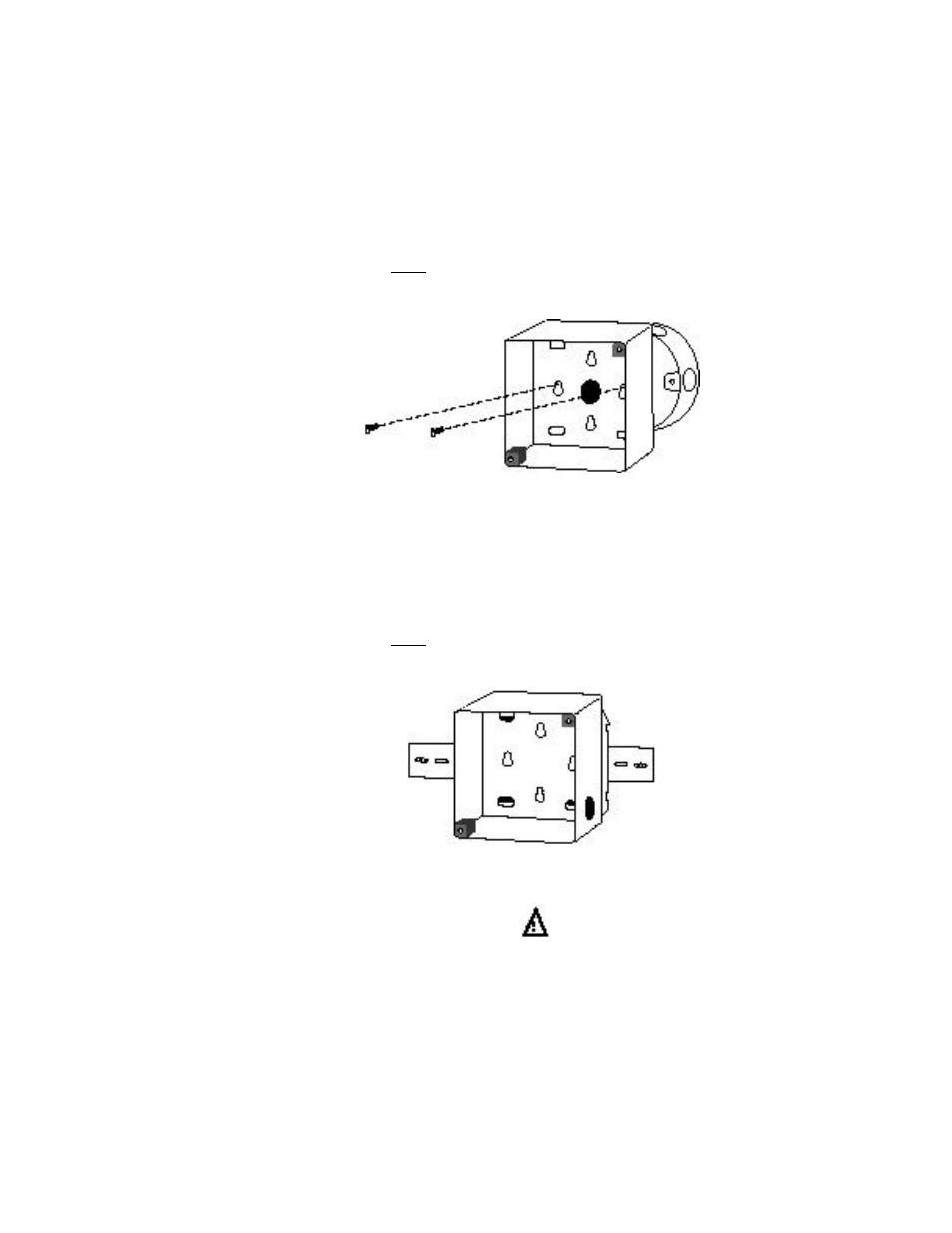

Figure 4.6 DIN Box Mounting the EuroBox
A fourth mounting option is to affix the EuroBox to 35mm DIN rail using DIN Clips
(one pair included). Two sets of rectangular slots are provided for the DIN clips.
Ensure that the clips provided with each EuroBox lock in place on the box and then
snap them onto the DIN rail (figure 4.7). Ensure that suitable cabling holes are
drilled in the EuroBox prior to mounting.
Figure 4.7 DIN Rail Mounting the EuroBox
The Type 1D DIN Base Plate offers a lower profile and easier access to
wiring terminals for DIN rail applications.
