10-2
Installing the SCH-10 Scheduler
Module
LonPoint SCH-10 Scheduler Module
The front panel of the SCH-10 module is shown in figure 10.1. There are no user-
configured jumper blocks or other adjustable controls on the SCH-10 module.
Lo
nP
oi
nt
™
S
ch
ed
ul
er
Network Access Jack; Use
With Echelon PCC-10 Cable
Model 78303
Peel-Off Code 39
Format Bar Code of
LonPoint Interface
Neuron Chip ID
Number
LonPoint Interface
Model and Software
Revision Numbers
Service LED
Service Switch
Power/Wink LED:
Power ON: Illuminated Continuously
Wink: Flashing
SCH-10
MODEL 43100 976
SW VERSION 3.0
ID NUMBER
I/O: 0-5 VDC
LISTED 178K
ENERGY MANAGEMENT
EQUIPMENT SUBASSEMBLY
SCH-10 MODEL 43100 ID NUMBER
SCH-10 MODEL 43100 ID NUMBER
E
c
us
m
L
U
®

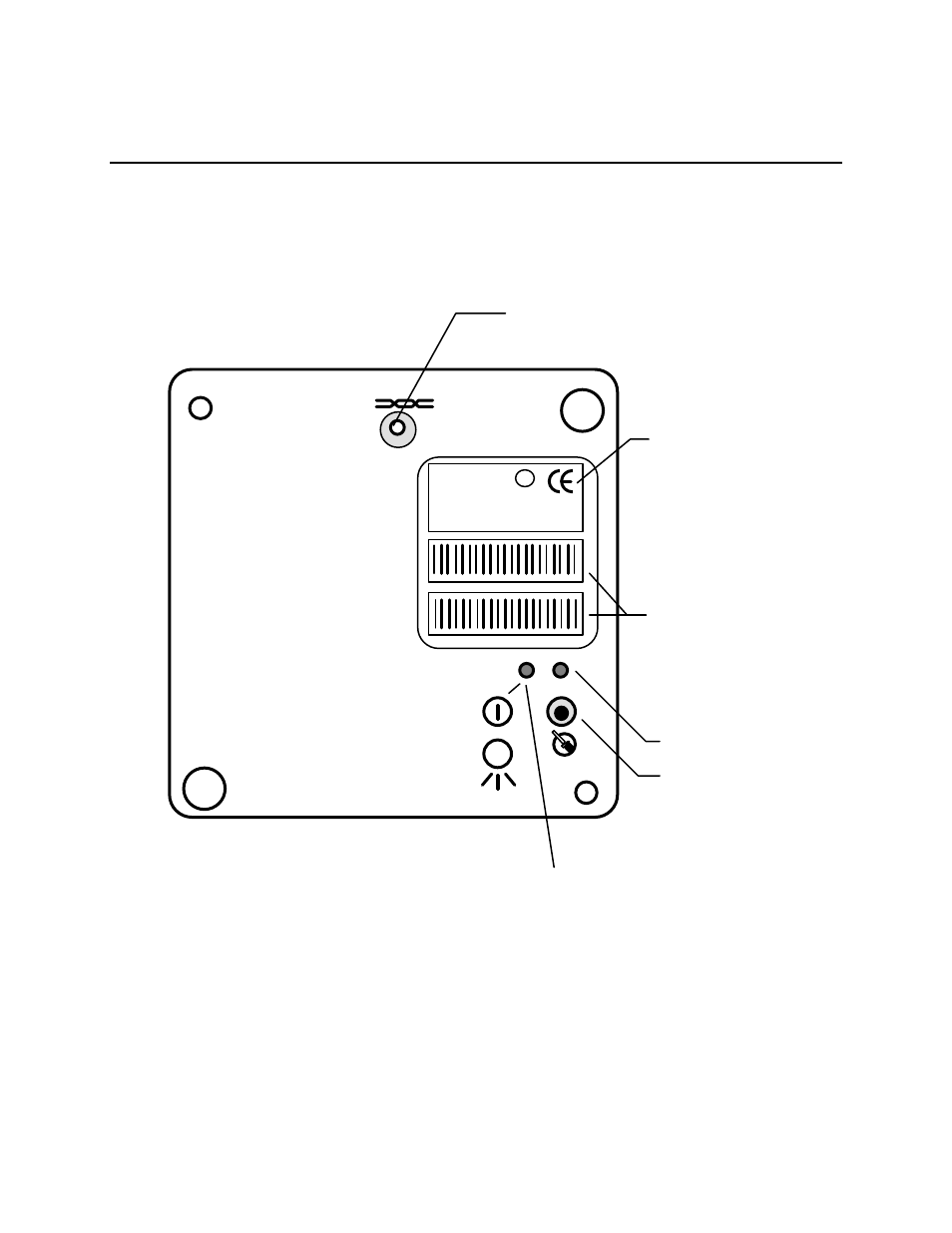

Figure 10.1 LonPoint SCH-10 Scheduler Module - Front Panel
The SCH-10 module is installed in a Type 1 or Type 1D Base Plate. Wiring
connections to the SCH-10 module are presented in table 10.1. Specifications for the
SCH-10 module are shown in table 10.2.
