4-6 Installation and Wiring of Base Plates

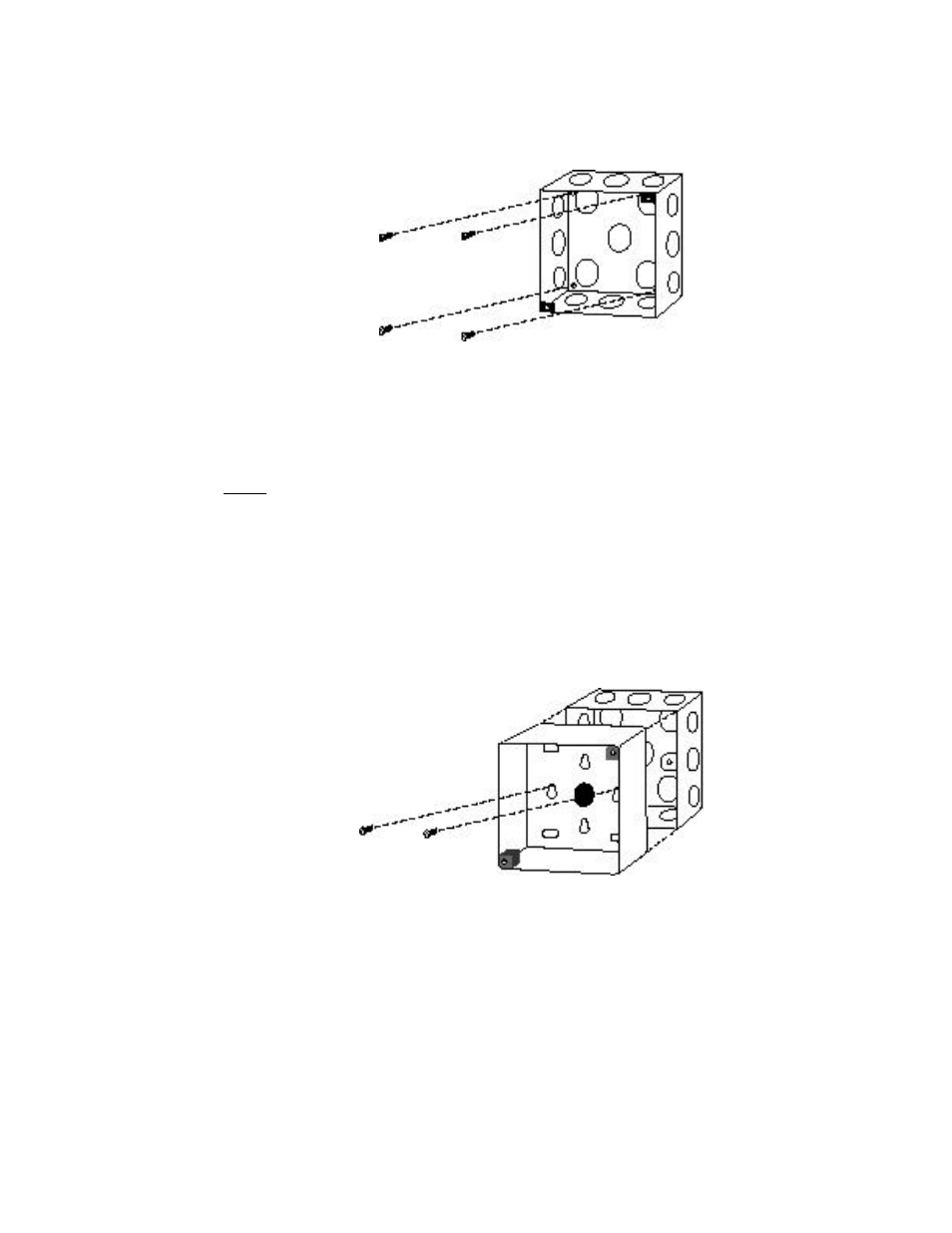

Figure 4.4 4” Square Electrical Box Mounting
There are four mounting options if Echelon’s EuroBox is used. The Eurobox
requires the installer to drill cabling holes: ensure that suitable holes are drilled
prior to mounting. In order to avoid interference with the Base Plate enclosure
walls, all glands and conduit fittings must be located within 1.4”/35cm of the bottom
of the box (as measured from the outside of the box). Wire glands and conduit
fittings must not extend more than 0.63”/16mm into the EuroBox in order to prevent
associated cabling from interfering with the Base Plate screw terminals.
For UK applications, a second mounting option is to affix the EuroBox to a single
gang 25mm BS4662 flush mounting box (MK 866ZIC or similar). Two keyhole slots
are provided in the EuroBox to accomodate the flush mounting box as shown in
figure 4.5. Use screws with flush mounting and ensure that suitable cabling holes
are drilled in the Eurobox prior to mounting, as discussed above.
Figure 4.5 MK Electrical Box Mounting the EuroBox
