LonPoint Hardware Guide 9-3
configured differently. Table 9.1 presents the correct jumper position for different
types of analog outputs.
The AO-10 sources, but does not sink, current. For wiring simplicity, 4-20mA actuators
attached to the AO-10 module should be operated in 2-wire mode, provided that they can
operate at 12V or less. Actuators that require >12V across their terminals should be
operated in a 4-wire mode and powered from a separate power supply.

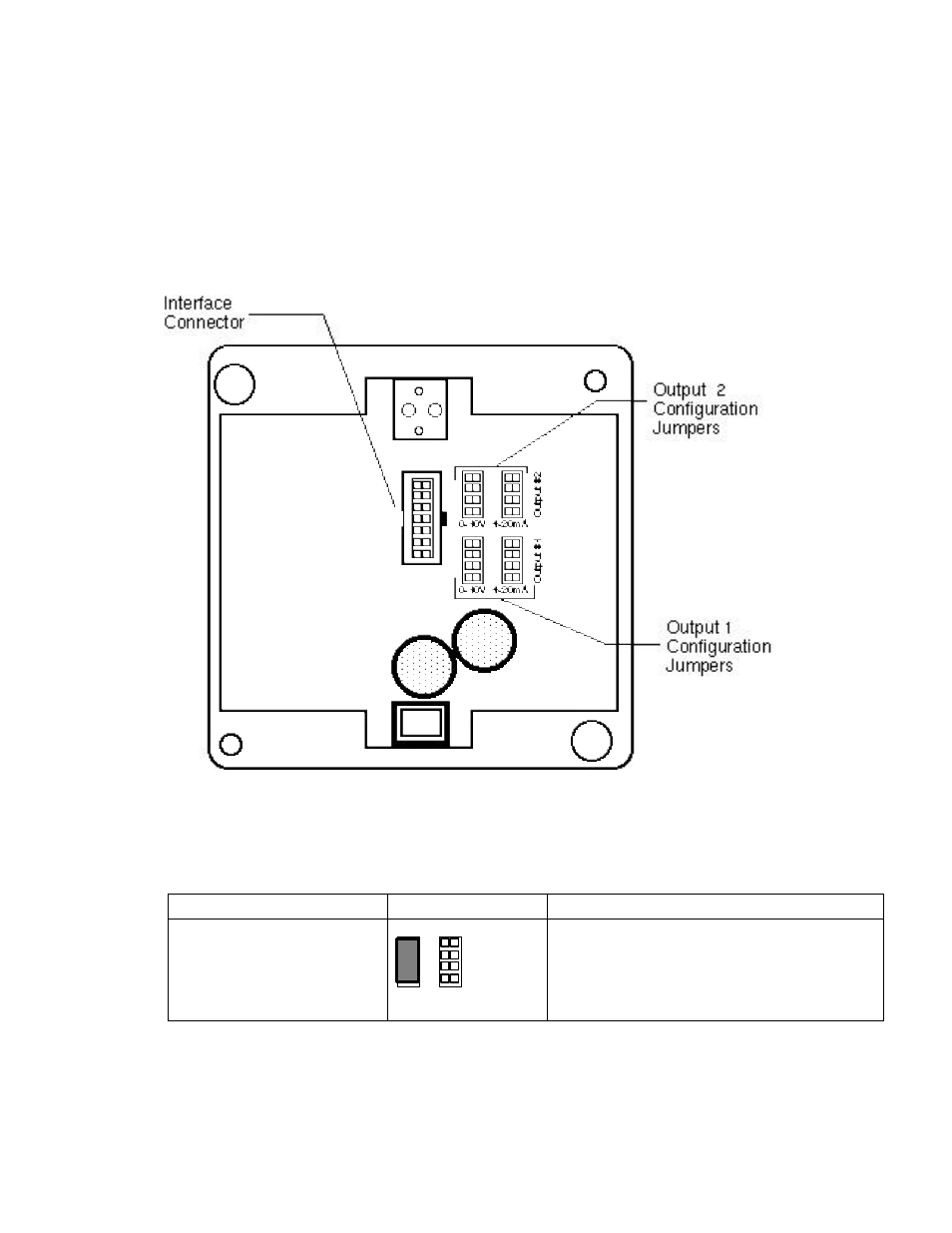

Figure 9.2 LonPoint AO-10 Jumper Block Settings - Rear Panel
Table 9.1 AO-10 Analog Output Module Wiring Connections
Function Jumper Position Description
Output 1
0-10V Output
O
u
tp
u
t
#
1
0-10V 4-20mA
This setting is used for generating a 0-10V
output from the 12-bit D/A converter via a
voltage amplifier. Output load may be as low
as 1K Ohms.
