LonPoint Hardware Guide 2-7
The Type 1 Base Plate is mounted to either a suitable US 4” square, 2” deep (10.16cm x
5.08cm) electrical box, US double gang electrical box, plastic Echelon EuroBox (figures
2.5-2.7), or an IP-65 (NEMA 4) enclosure.

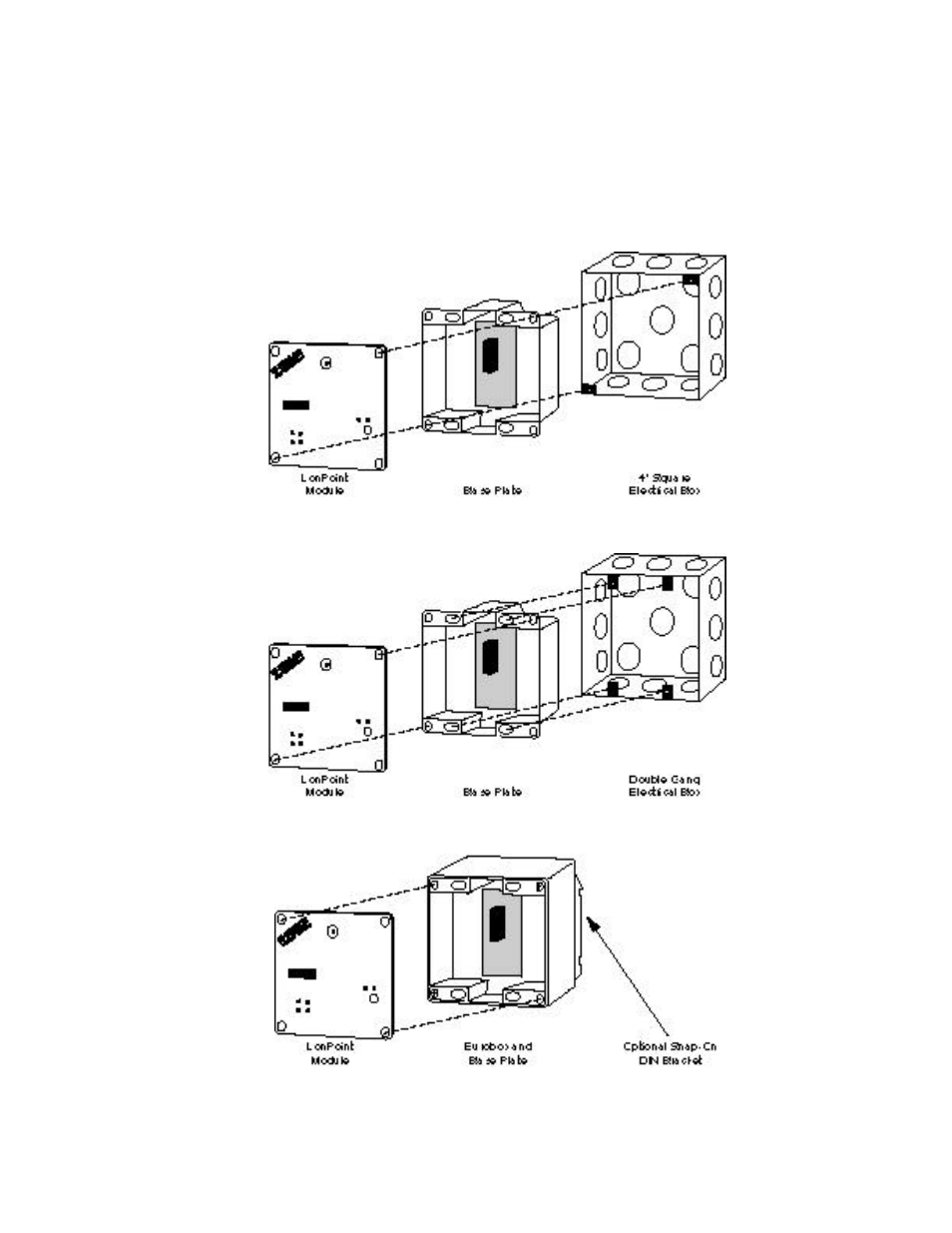

Figure 2.5 LonPoint Interface Module 4” Square (2” Deep) Electrical Box Mounting Configuration
Figure 2.6 LonPoint Interface Module Double Gang (2” Deep) Electrical Box Mounting Configuration
Figure 2.7 LonPoint Interface Module Eurobox Mounting Configuration
