4-22 Installation and Wiring of Base Plates
A third mounting option is to affix the EuroBox to a recessed 6.5cm diameter plastic
DIN box (Kaiser or equal). Two keyhole slots are provided in the EuroBox to
accommodate DIN box mounting, as shown in figure 4.21. Use the screws provided
with the DIN box and ensure that suitable cabling holes are drilled in the EuroBox
prior to mounting.

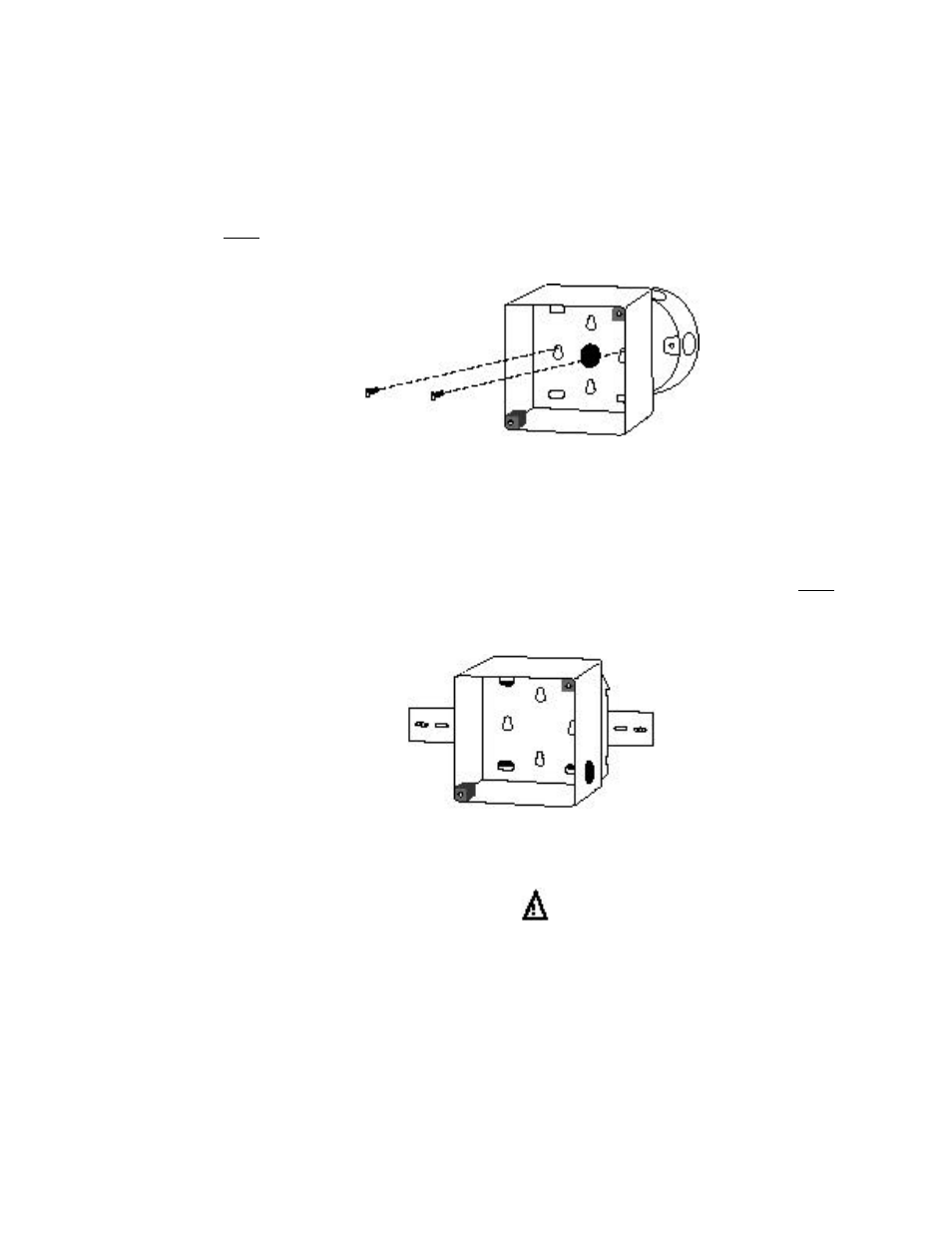

Figure 4.21 DIN Box Mounting the EuroBox
A fourth mounting option is to affix the EuroBox to 35mm DIN rail using DIN Clips
(one pair included). Two sets of rectangular slots are provided for the DIN clips.
Ensure that the clips lock in place on the EuroBox and then snap them onto the DIN
rail (figure 4.22). Ensure that suitable cabling holes are drilled in the EuroBox prior
to mounting.
Figure 4.22 DIN Rail Mounting the EuroBox
The Type 2D DIN Base Plate offers a lower profile and easier access to wiring
terminals for 25mm DIN rail applications.
