AMT Datasouth Documax A6300 User Manual
Page 17
Dual tractor path (straight and 45º alternate path) with top roller set and sound
reduction access cover.
Straight tractor path and cut sheet (Friction Feed) path with top roller set and
sound reduction access cover.
Use the following illustrations to locate the major printer parts for each model. The
standard model is used to illustrate most of the procedures in this manual.

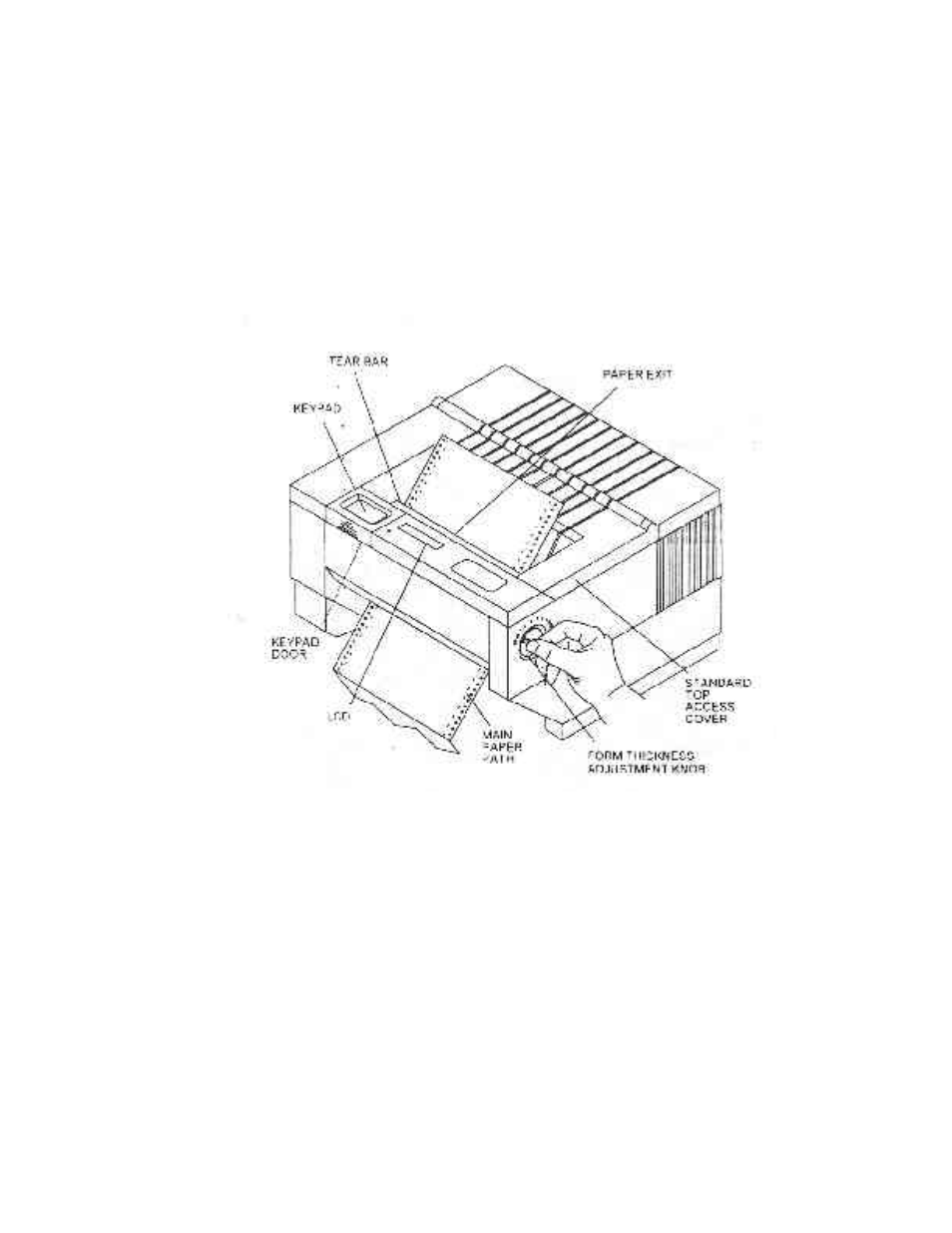

Figure 1-1.
External Printer Parts (Standard Model)
1-6
