11. Move the ribbon guide down between the platen and the printhead until the
snaps on the ribbon guide lock into place. To prevent the ribbon from
bunching in the ribbon guide, move the printhead left and right turning the
ribbon advance knob. See Figure 1.6.

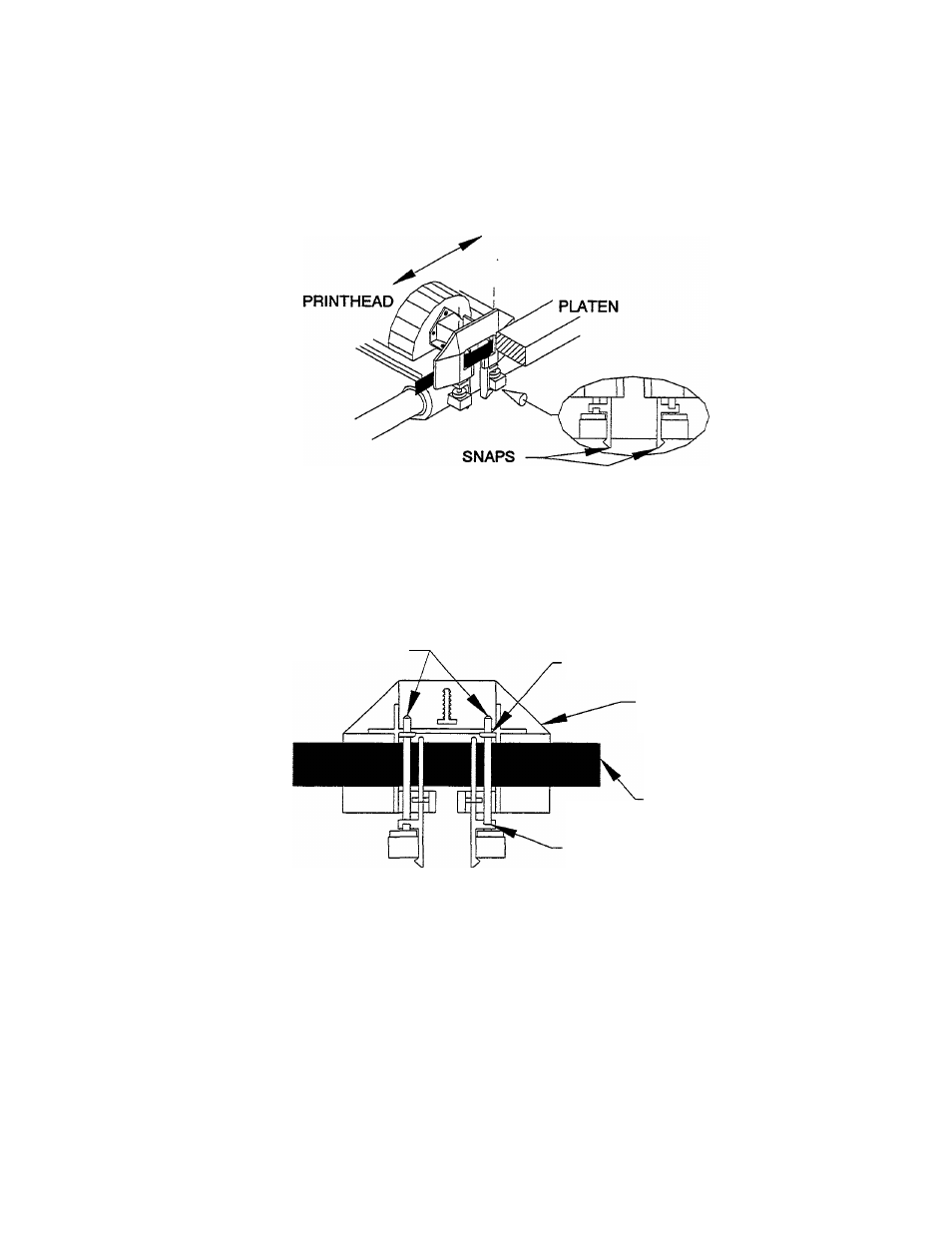

Figure 1.6 Ribbon Guide And Platen
12. Check to ensure that the ribbon guide snaps are locked, the pins pass through
the top ribbon guide holes, and the ribbon is in front of the pins, as shown
in Figure 1.7.
PINS
TOP HOLE
RIBBON
GUIDE
RIBBON
BOTTOM HOLE
(REAR VIEW OF RIBBON GUIDE)
Figure 1.7 Ribbon Guide Tool
13. Adjust printhead-to-platen gap before operating printer as described in
Paragraph 1.7.
