6. Perform a default reset (as explained in Chapter 5, Paragraph 5.3).
Result:
A default reset loads a known set of parameters (default values)
into the non-volatile memory.
1.5 HOW TO INSTALL THE RIBBON CARTRIDGE
1.
Press Off line key to take printer off line.
2.
Raise access cover.
3.
Use the printhead adjustment lever to move the printhead away from platen.
4.
Remove ribbon cartridge from box and polyethylene bag.
5.
Remove rubber band from ribbon guide to release it from the cartridge body.
See Figure 1.3.

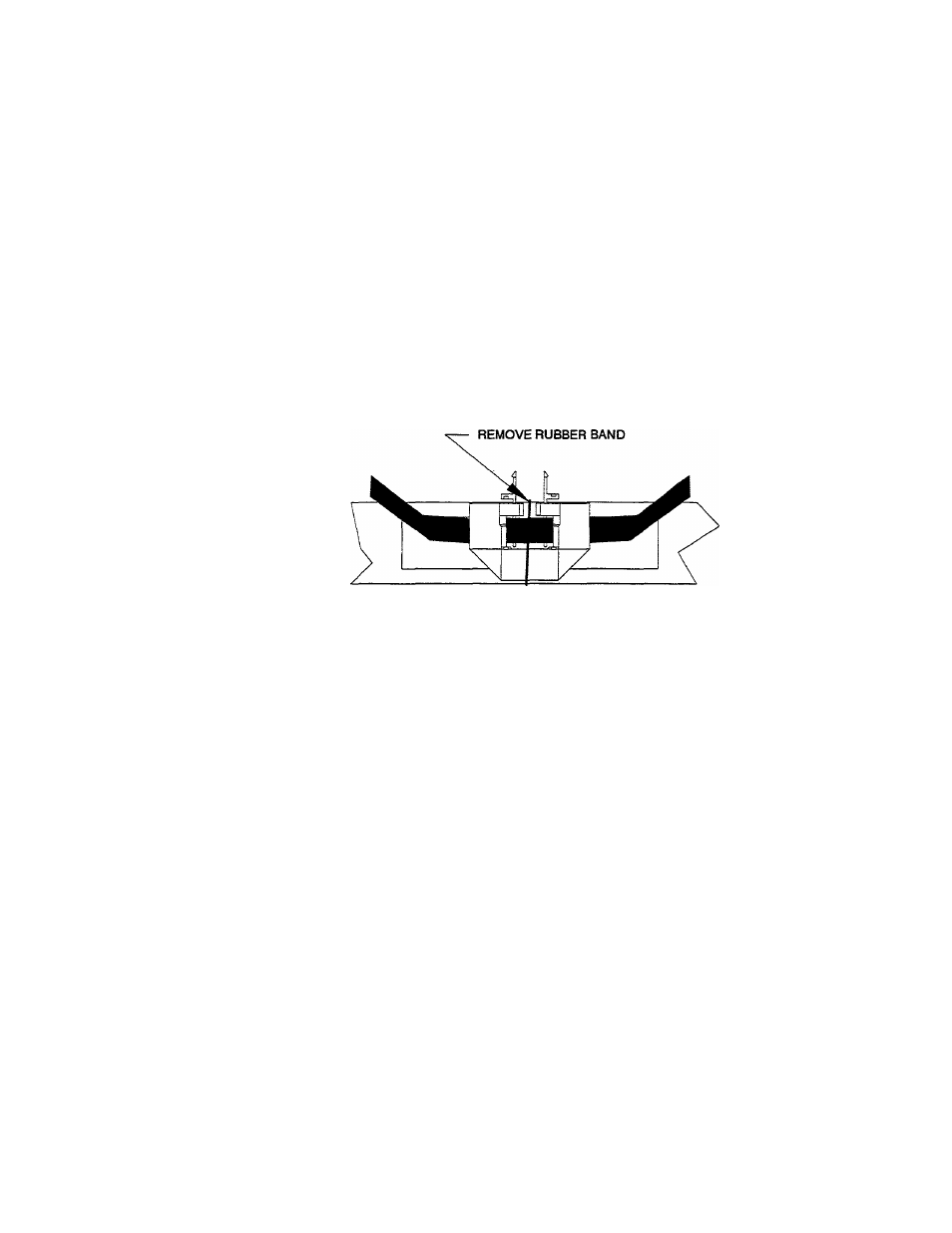

Figure 1.3 Ribbon Guide
6.
Turn the ribbon advance knob in the direction of the arrow on the ribbon
cartridge to take up slack in the ribbon.
7.
Move the printhead to the center of the printer away from the paper tractors.
8.
Lower the ribbon cartridge into the printer.
1-6
