Section 3.4- CARBURETOR
Carburetor Removal
To remove the carburetor from the engine, proceed as follows:
1. Disconnect the carburetor fuel Inlet line.
2. Loosen the clamp and disconnect the carburetor
air Inlet hose.
3. Remove the two M6-1.00 x 90mm screws that
retain the carburetor.
4. Remove the carburetor air Inlet adapter, the air
inlet adapter gasket, carburetor and carburetor to
skirt gasket.
5. Remove the sheet metal carburetor skirt.
6. Remove two gaskets and the carburetor spacer.
SPACER GASKETS
/
.
\
-t
SPACER

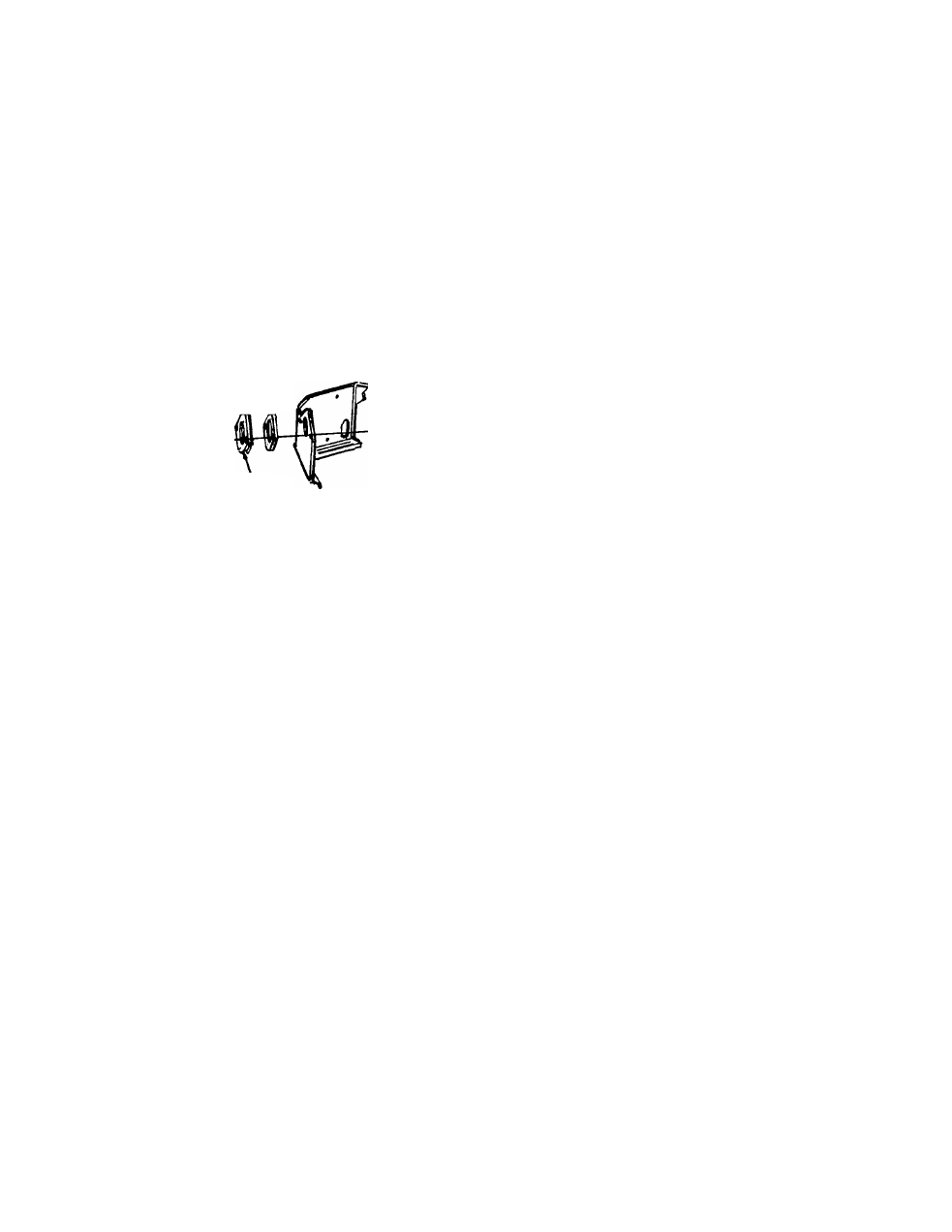

Figure 7. Carburetor Removal
INLET ADAPTOR
CARBURETOR
HOSE CLAMP
GASKET
iT ------- TO REGULATOR
MOUNTING BOLT
CARBURETOR
SKIRT
Page 3.4-4
