Part 8- SPECIFICATIONS & CHARTS

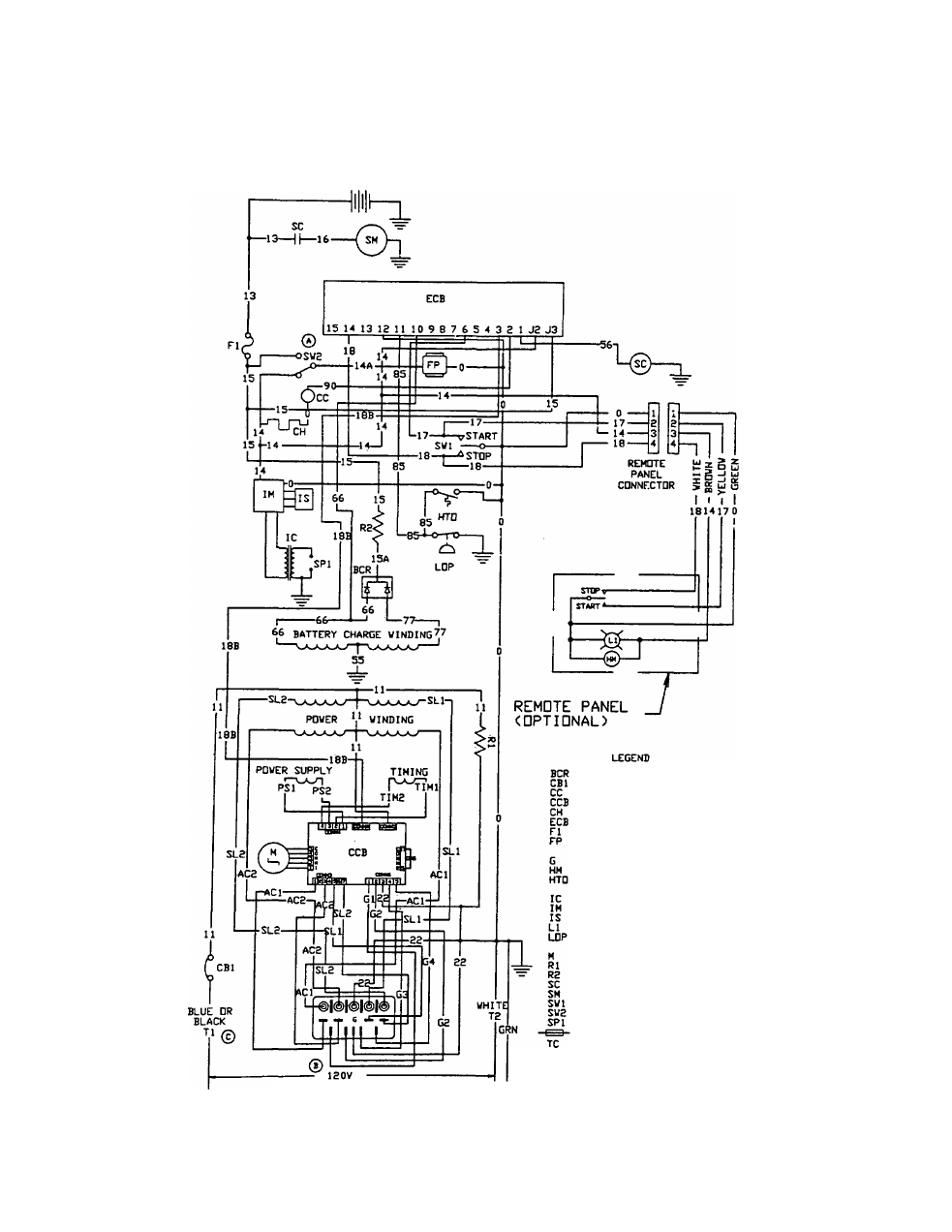

Electrical Schematic (Drawing No. 88928)
CUSTDMER SUPPLIED
BATTERY
BATTERY CHARGE RECTIFIER
CIRCUIT BREAKER
CHOKE COIL (GASOLINE ONLY)
COMPUTER CONTROL BOARD
CHOKE HEATER (GASOLINE ONLY)
ENGINE CONTROL BOARD
FUSE, 15A
FUEL PUMP ON GASOLINE
SHUT-OFF VALVE ON L/P
CENISTOR
HOUR METER (OPTIONAL)
SWITCH, HIGH TEMPERATURE OIL
(a OSES ON HIGH TEMPERATURE)
IGNITION COIL
IGNITION MODULE
IGNITION SENSO?
LICDU, RUN (OPTIONAL)
SWITCH, LOW OIL PRESSURE
(OPENS ON HIGH PRESSURE)
STEPPER MOTOR THROTTLE CONTROL
RESISTOR, 500 OHM, 50 WATTS
1 Dt«, 50 WATTS
STARTER CONTACTOR
STARTER MOTOR
SWITCH, START/STDP
SWITCH, FUEL PUMP PRIME
SPARK PLUG
LUG, BARREL
TERMINAL, CDNICCTDR 4
TAB
CUSTDMER AC CONNECTION
Page 8-2
