4-3. Panel Keys
CHAPTER 4 Functions and Controls
7
4
1
0
8
5
2
.
9
6
3
+/-
1
1
1
1
1 Numeric Keys
2
2
2
2
2 SET Key
3
3
3
3
3 CLR Key

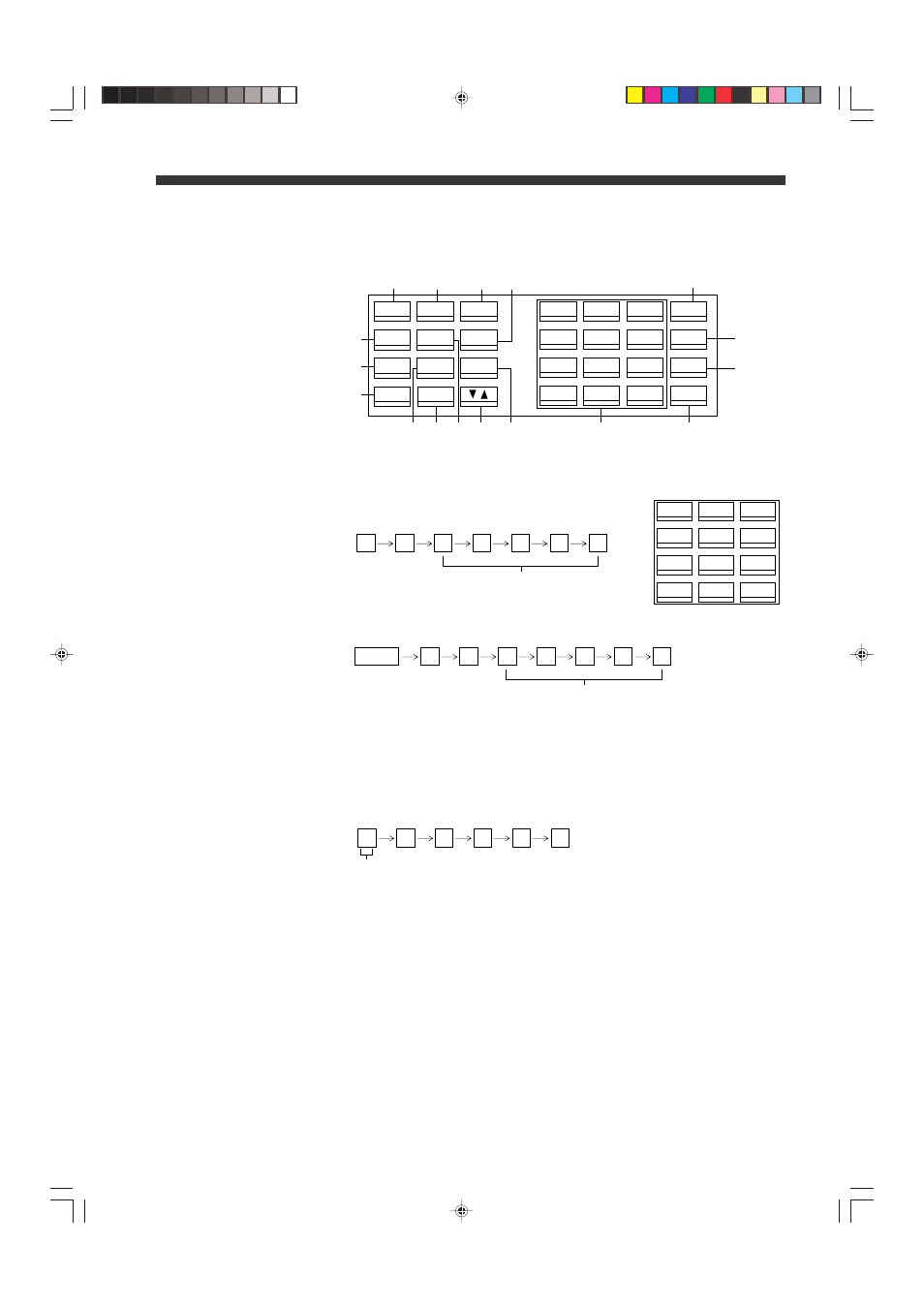

Enter numbers, a decimal point, and + or - sign. See the following examples:
• Entering +10.0000
• Entering -10.0000
"+" and "-" alternate each time +/- is pressed. Note that the "+" sign is not
displayed. This key can be pressed to select a positive or negative number
as long as you have only up to 3-digit integers.
• Entering 0.1234
• When you first enter any number by using numeric keys, [ ] appears
on both sides of this number. This indicates that the key input can be
accepted. Any incorrect entry can be deleted using CLR only in this mode.
Changes parameter, setting, and ON/OFF status.
Deletes the desired number. Press ENT to regain the initial data.
