12

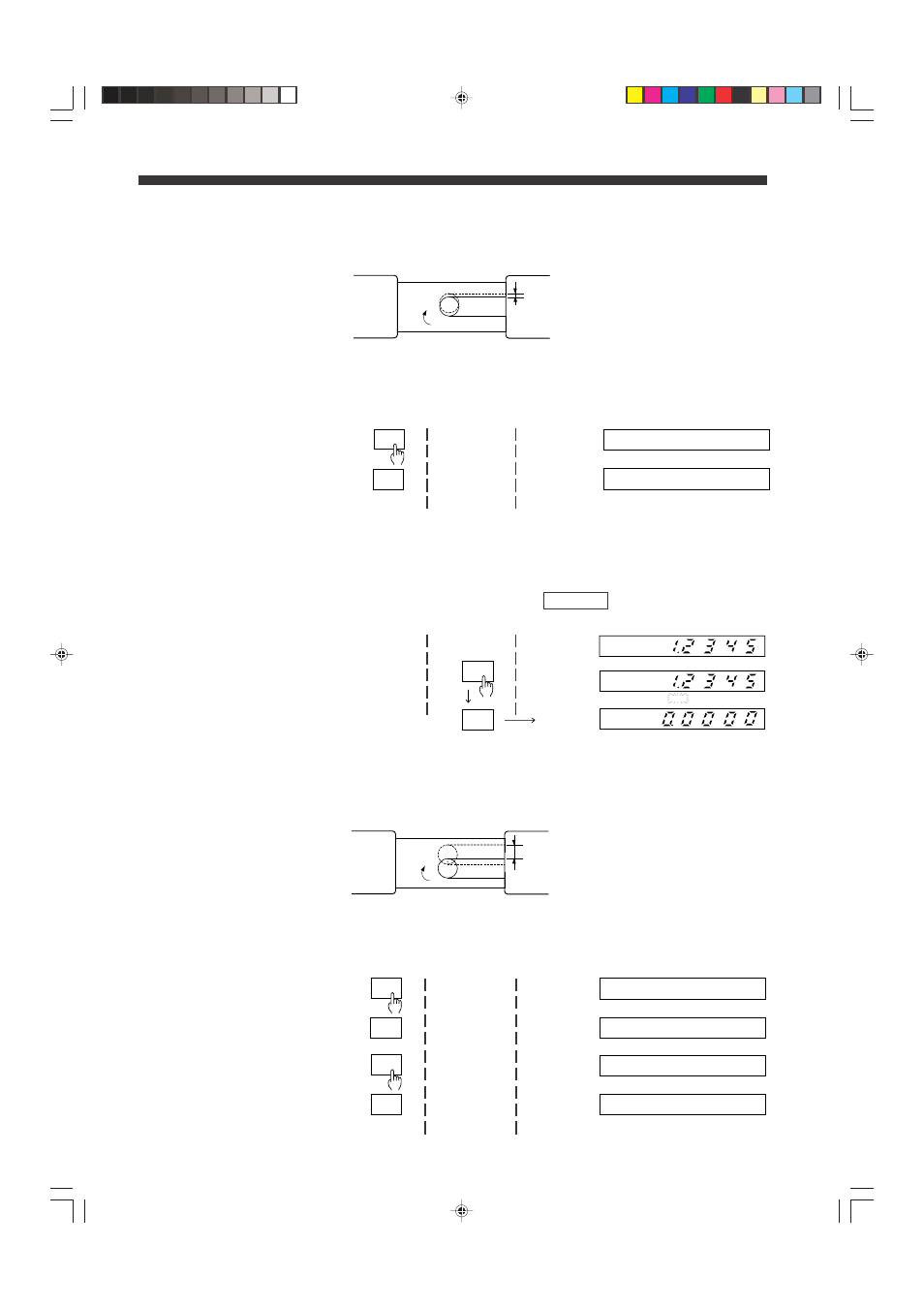

CHAPTER 3 Quick Setup Procedures
Measuring
Roundness
(When target is rotating)
■ Applications
• Detecting uneven rubber roller in a copying machine
• Detecting uneven rubber roller on a printer
■ Setting
1. Initialize settings ("MEMORY INITIALIZED" is displayed.)
2.
When the measurement mode is set to "P-P", the displayed value is
retained until HOLD is pressed or until an external signal is input through
the hold synchronous input terminal.
3. Resetting displayed values (When 1. 2 3 4 5 appears on the main
display)
R T
MODE
SET
OK
M O D E N O M A L
M O D E P – P
R
HOLD
HOLD
HOLD
Measuring
Eccentricity
(When target is rotating)
■ Applications
• Measuring eccentricity of rubber rollers
• Measuring shaft eccentricity for automobile
■ Setting
1. Initialize settings ("MEMORY INITIALIZED" is displayed.)
2.
Main display
The displayed
value is reset
to "0".
R T
SEG
MODE
SET
OK
SET
M O D E N O M A L
M O D E P – P
S E G D I A
S E G E D G E 1
