5

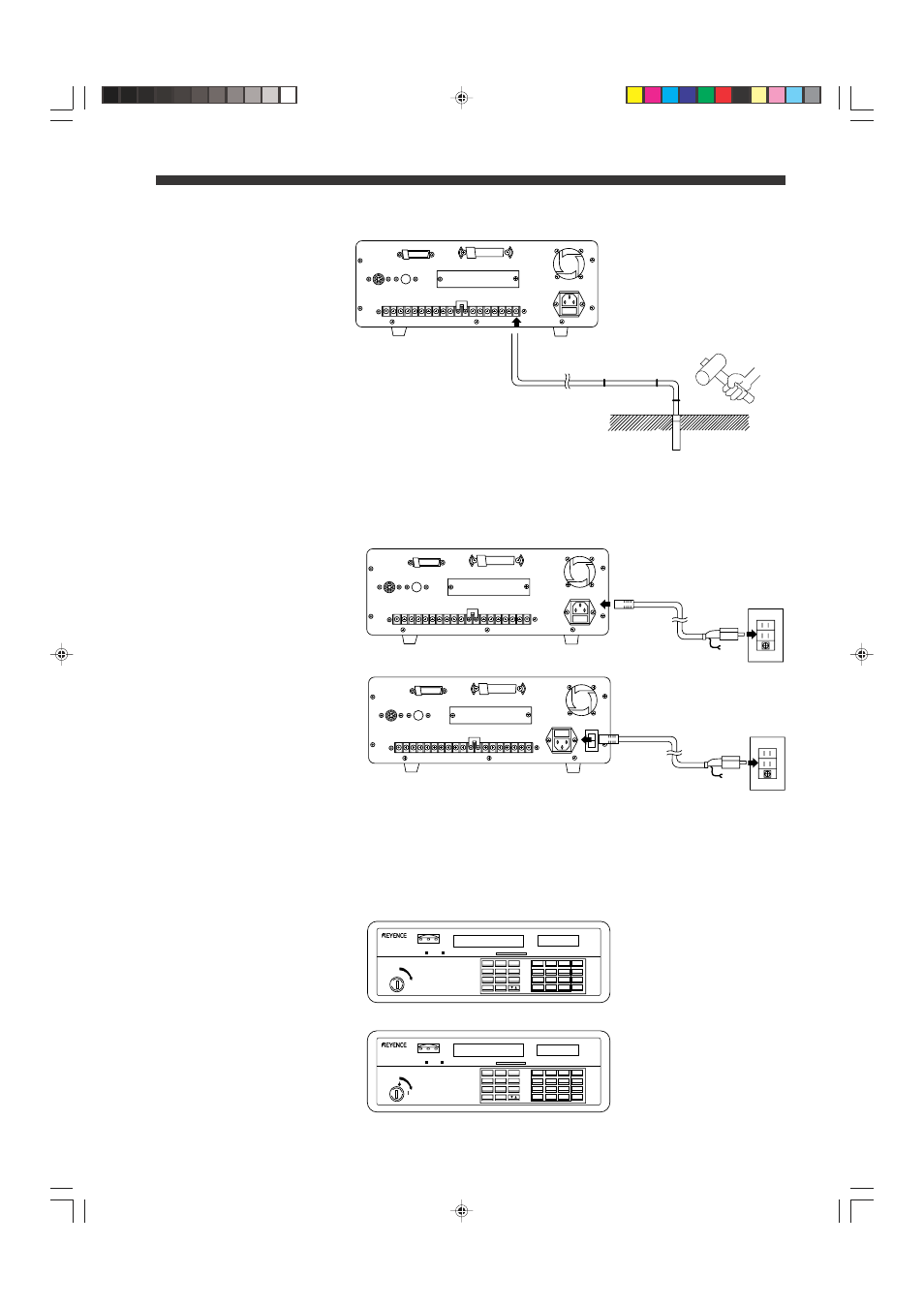

2. Ground the controller. (Except for models followed with “W”.)
Grounding the controller to the
grounding bar
3. Check first that the power switch of the controller is OFF, then connect it to
the outlet using the supplied power cable.
Controller (rear view)
LS-3100 Series
LS-3100(W) Series
4. Check that laser can be safely emitted, then turn the power switch ON.
Allow the controller to warm-up for approximately 30 minutes after the
laser emission indicator LED has lit.
With the LS-3100(W) series, first turn on the POWER switch (at the rear),
and then turn on the LASER switch (on the front panel).
Controller (front view)
LS-3100 Series
LS-3100(W) Series
CHAPTER 1 Preparation for Measurement
Grounding the
controller through the
grounding outlet
I
O
LIMT
HIGH GO LOW
LASER LASER 1 2
LASER SCAN DIAMETER
OFFSET ZERO HOLD LOCK POSITION
mm
inch
SEG SET MODE
AVE LIMIT OFS
PRM FNC CAL
PROG DISP
7
4
1
0
8
5
2
.
9
6
3
+/-
ZERO
HOLD
CLR
ENT
•
•
LASER
LS
LIMT
HIGH GO LOW
LASER LASER 1 2
LASER SCAN DIAMETER
OFFSET ZERO HOLD LOCK POSITION
mm
inch
SEG SET MODE
AVE LIMIT OFS
PRM FNC CAL
PROG DISP
7
4
1
0
8
5
2
.
9
6
3
+/-
ZERO
HOLD
CLR
ENT
• OFF
• ON
POWER
LS
08.10.1, 10:49 AM 5
