Controller
Model: LS-3100(W)/3100D(W)
Front Panel
LS-3100 Series
CHAPTER 4
F
UNCTIONS AND
C
ONTROLS

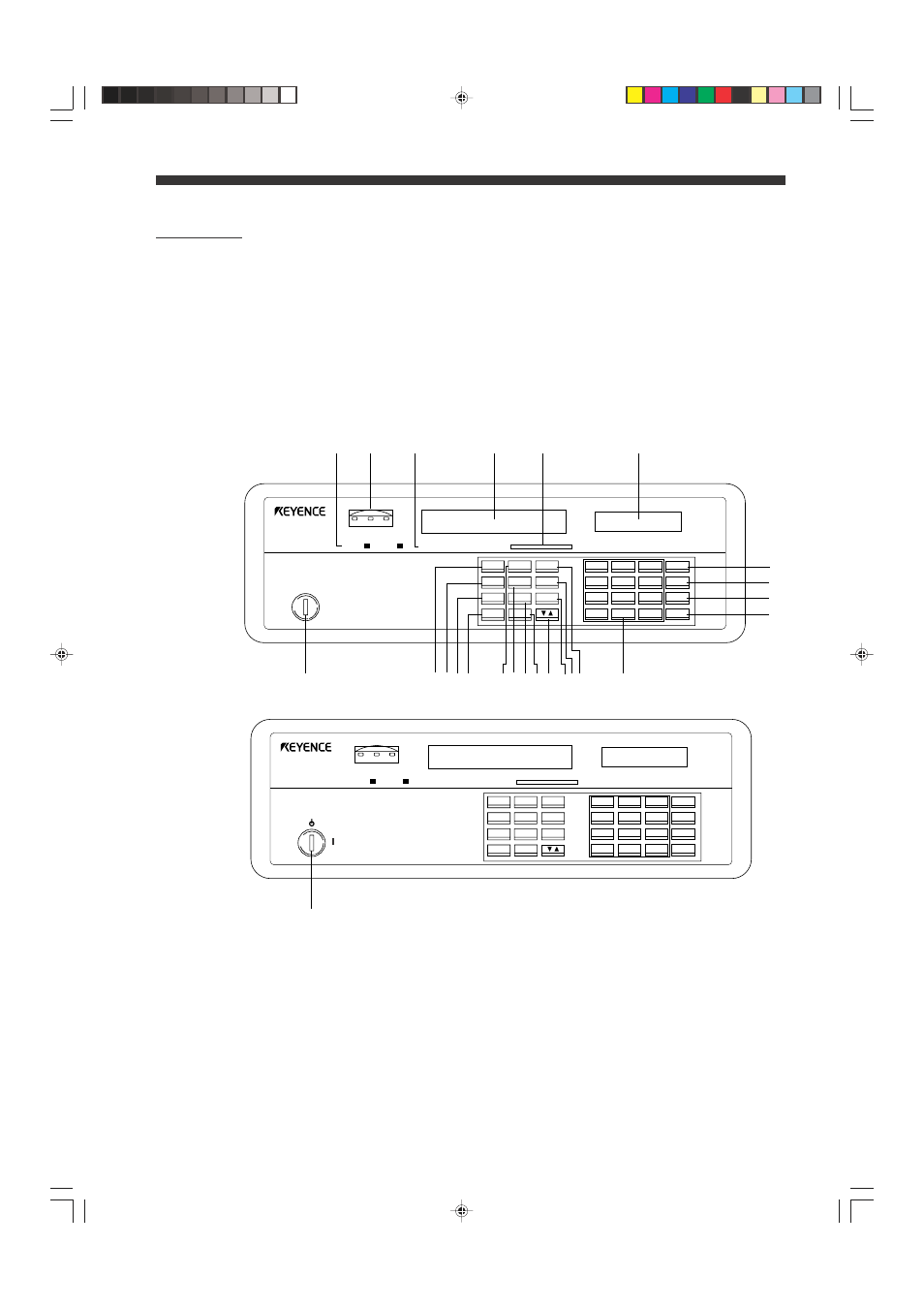

4-1. Part Names
LIMT
HIGH GO LOW
LASER LASER 1 2
LASER SCAN DIAMETER
OFFSET ZERO HOLD LOCK POSITION
mm
inch
SEG SET MODE
AVE LIMIT OFS
PRM FNC CAL
PROG DISP
7
4
1
0
8
5
2
.
9
6
3
+/-
ZERO
HOLD
CLR
ENT
K
L
M
N
J I H G F E D C B A 0 9 8
1 2 3 4 5 6
7
• OFF
• ON
POWER
LS
LS-3100(W) Series
LIMT
HIGH GO LOW
LASER LASER 1 2
LASER SCAN DIAMETER
OFFSET ZERO HOLD LOCK POSITION
mm
inch
SEG SET MODE
AVE LIMIT OFS
PRM FNC CAL
PROG DISP
7
4
1
0
8
5
2
.
9
6
3
+/-
ZERO
HOLD
CLR
ENT
7
•
•
LASER
LS
B MODE key
C LIMIT key (for 3-level
comparator output only)
D FUNCTION key
E SUBDISPLAY key
F UP/DOWN key
G CALIBRATION key
H OFFSET key
I SET key
J Numeric keys
K AUTO ZERO key
L HOLD key
M CLEAR key
N ENTER key
1 Laser emission indicator LED
2 Comparator output LEDs
3 Current setting indicator
4 Main display (CH1)
5 Target position indicator
6 Subdisplay (CH2)
7 Key-operated power switch
(LS-3100(W) Series: Key-operated
laser switch)
8 SEGMENT key
9 AVERAGE key
(for number of measurements)
0 PARAMETER key
A PROGRAM key
