3-4 Message Communication
3-31
3
Communi
cat
in
g wit
h the
L
J
-V700
0 Ser
ies
- EtherNet/IP Network Unit CB-EP100 User’s Manual (LJ-V7000 Edition) -

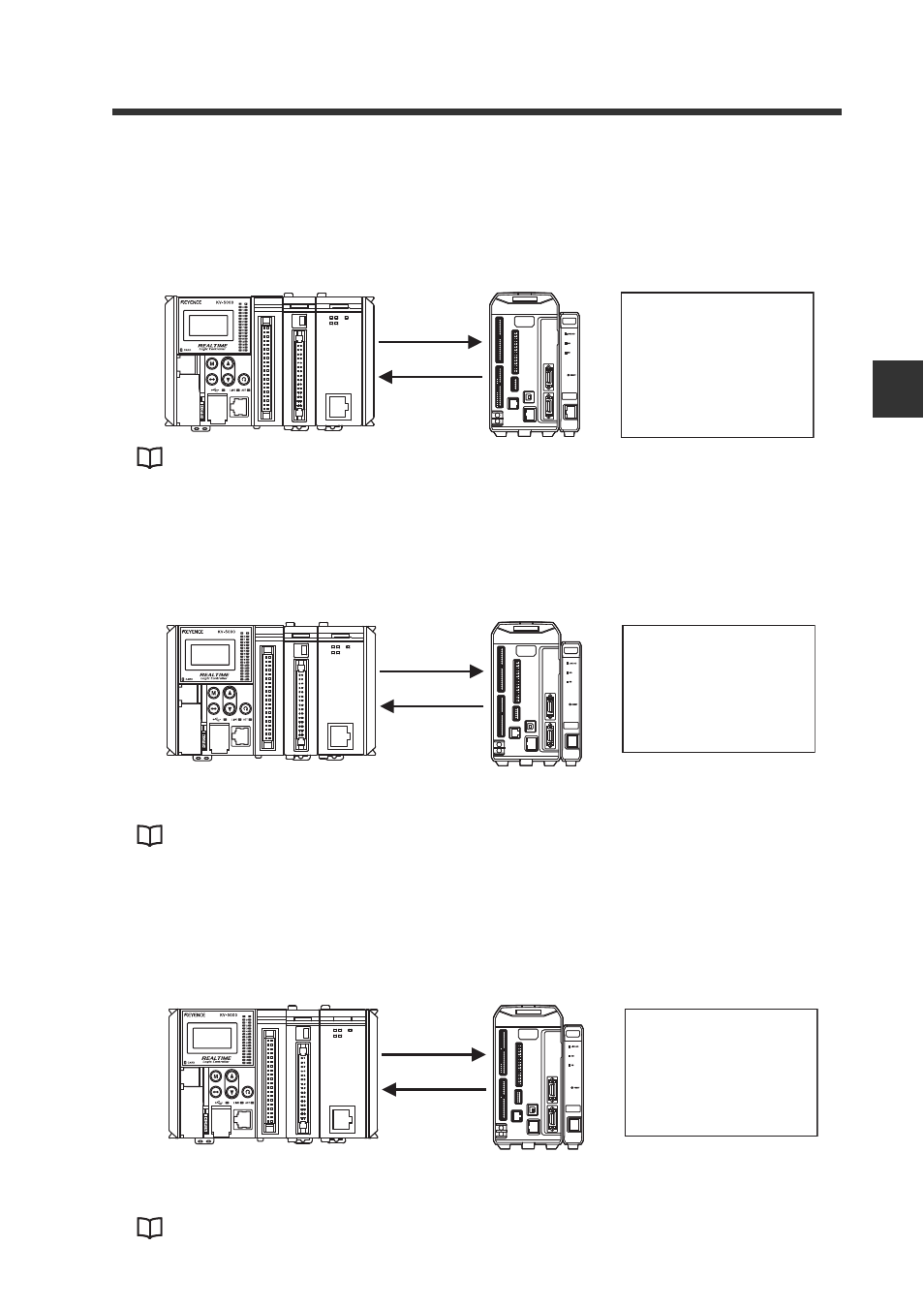

(5) Inputting control data
Message communication implements control input for a measuring instrument
connected to the CB-EP100.
In the following example, the auto-zero operation is performed.
"(5) Control input to a measuring instrument" (Page 3-78)
(6) Requesting to reflect setting write area
Message communication reflects the setting values of the setting write area of the
measuring instrument connected to the CB-EP100 up to the settings of the
specified hierarchy level.
"(6) Requesting to reflect setting write area" (Page 3-80)
(7) Updating the setting write area
Message communication updates the contents of the setting write area of the
measuring instrument connected to the CB-EP100 with the contents of the
specified hierarchy level.
"(7) Updating setting write area" (Page 3-81)
Command
Response
CB-EP100 Scanner
Measuring
instrument
Command
Response
CB-EP100 Scanner
Measuring
instrument
The setting values of the setting
write area are reflected up to
the settings of save area.
Command
Response
CB-EP100 Scanner
Measuring
instrument
The setting values of the setting write
area are replaced with the settings of
the active measurement area.
