3-3 Cyclic communication
3-23
3
Communi
cat
in
g wit
h the
L
J
-V700
0 Ser
ies
- EtherNet/IP Network Unit CB-EP100 User’s Manual (LJ-V7000 Edition) -
This following describes how to use cyclic communication to communicate from the
scanner to the CB-EP100 (adapter).
"Reading the measuring instrument status" (Page 3-23)
"Reading the OUT measurement values of a measuring instrument" (Page 3-24)
"Inputting control data to a measuring instrument" (Page 3-25)
Reading the measuring instrument status
Measuring instrument status that can be read: REMOTE, LASER_OFF, MEMORY_FULL
Device assignments:
"Monitor Data (156 Words (312 Bytes)) Assembly Instance
(Instance ID): 64H" (Page 3-9)

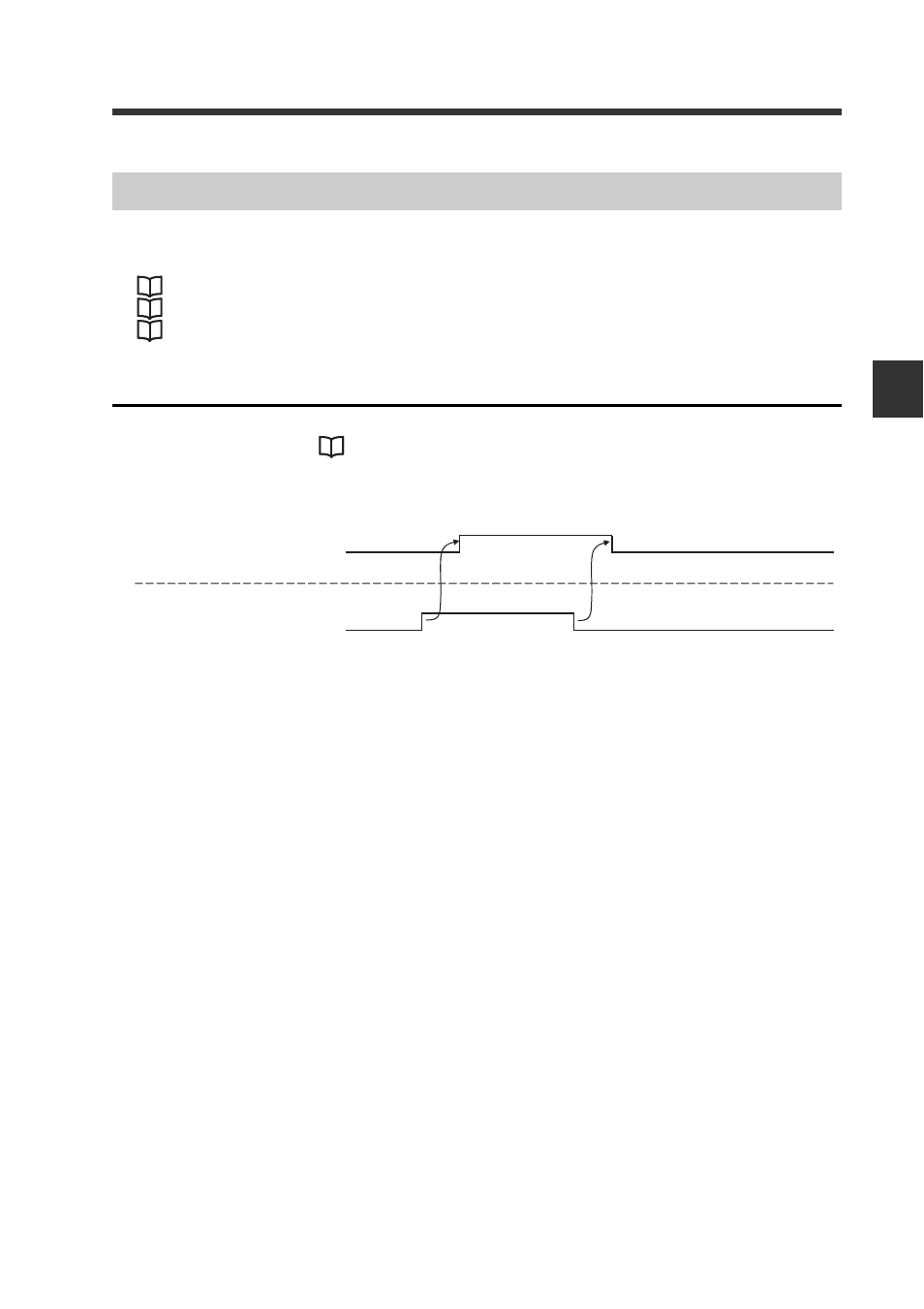

This is an example of reading the control status of the LASER_OFF signal.
(1) The control status of the LASER_OFF signal of the measuring instrument is input
to the IN area using cyclic communication.
Communication Methods
PLC
Measuring instrument status
Bit 0 of IN area [2]
Measuring instrument
Control status of
LASER_OFF signal
1
0
ON
OFF
(1)
