- EtherNet/IP Network Unit CB-EP100 User’s Manual (LJ-V7000 Edition) -
1-3
Part Names and Functions

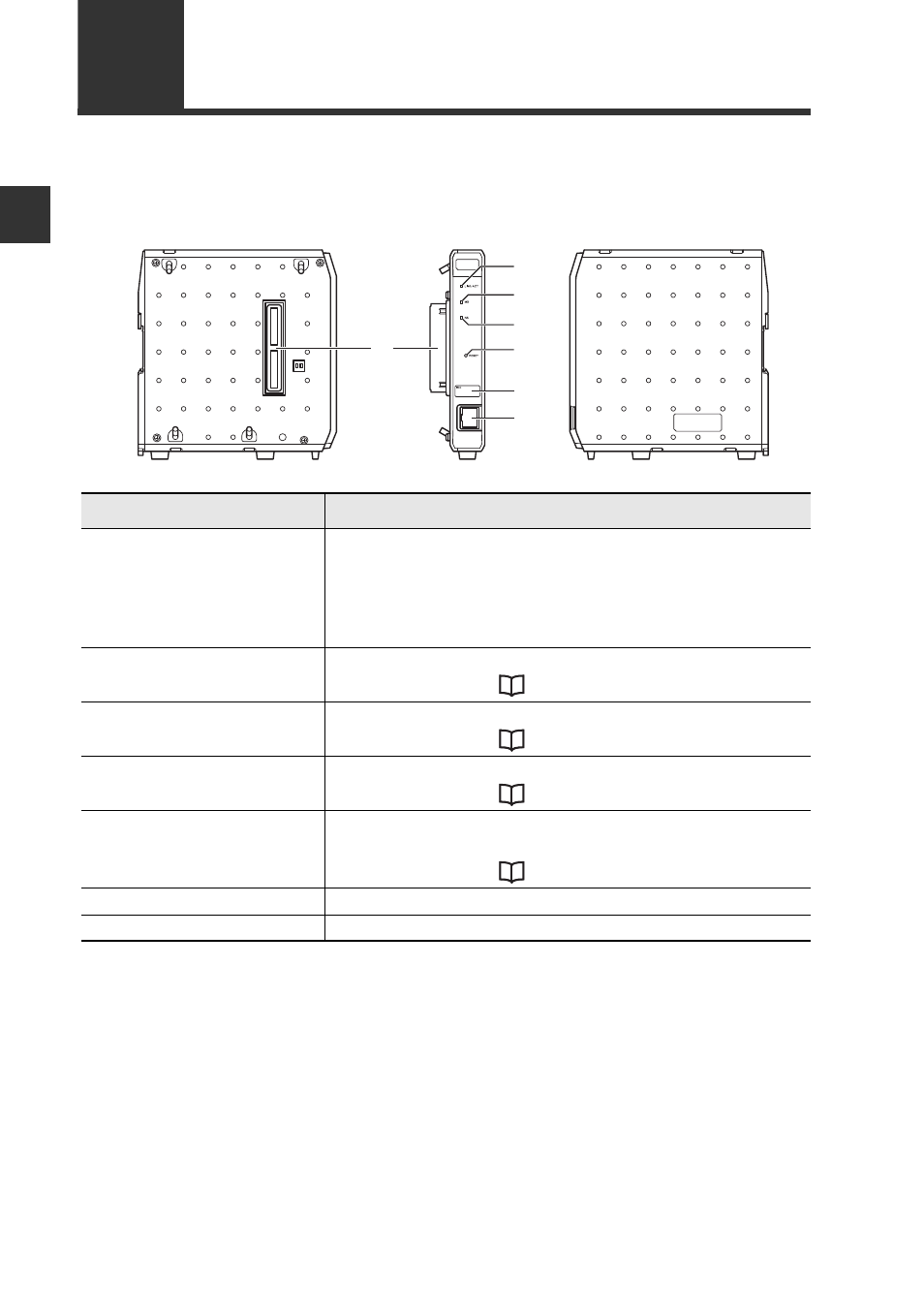

This section describes the part names and functions of the CB-EP100.
Right side Left side
(1)
(3)
(4)
(5)
(6)
(7)
(2)
Name Description
(1) Connector for
connecting controller
Connect the controller to this connector.
However, with instrument like the LJ-V7000 series that
use a display output unit, the display output unit should
be connected to the controller and the CB-EP100 should
be connected to the display output unit.
(2) LINK/ACT LED Normal: Green LED lights up or blinks
For details, Refer to "Troubleshooting" (Page 5-3).
(3) MS LED Normal: Green LED lights up
For details, Refer to "Troubleshooting" (Page 5-3).
(4) NS LED Normal: Green LED lights up or blinks
For details, Refer to "Troubleshooting" (Page 5-3).
(5) RESET button When held down for three seconds or longer, the CB-
EP100 settings will be reset to the default settings.
For details, Refer to "Default Settings" (Page 5-5).
(6) MAC address MAC address (two lines) for the CB-EP100.
(7) Communication port Connector for the Ethernet cable. (RJ-45 connector)
