5-4 Configuration Procedure for Control/Compact Logix Series
5-7
5
Ap
pe
ndi
x
- EtherNet/IP Network Unit CB-EP100 User’s Manual (LJ-V7000 Edition) -

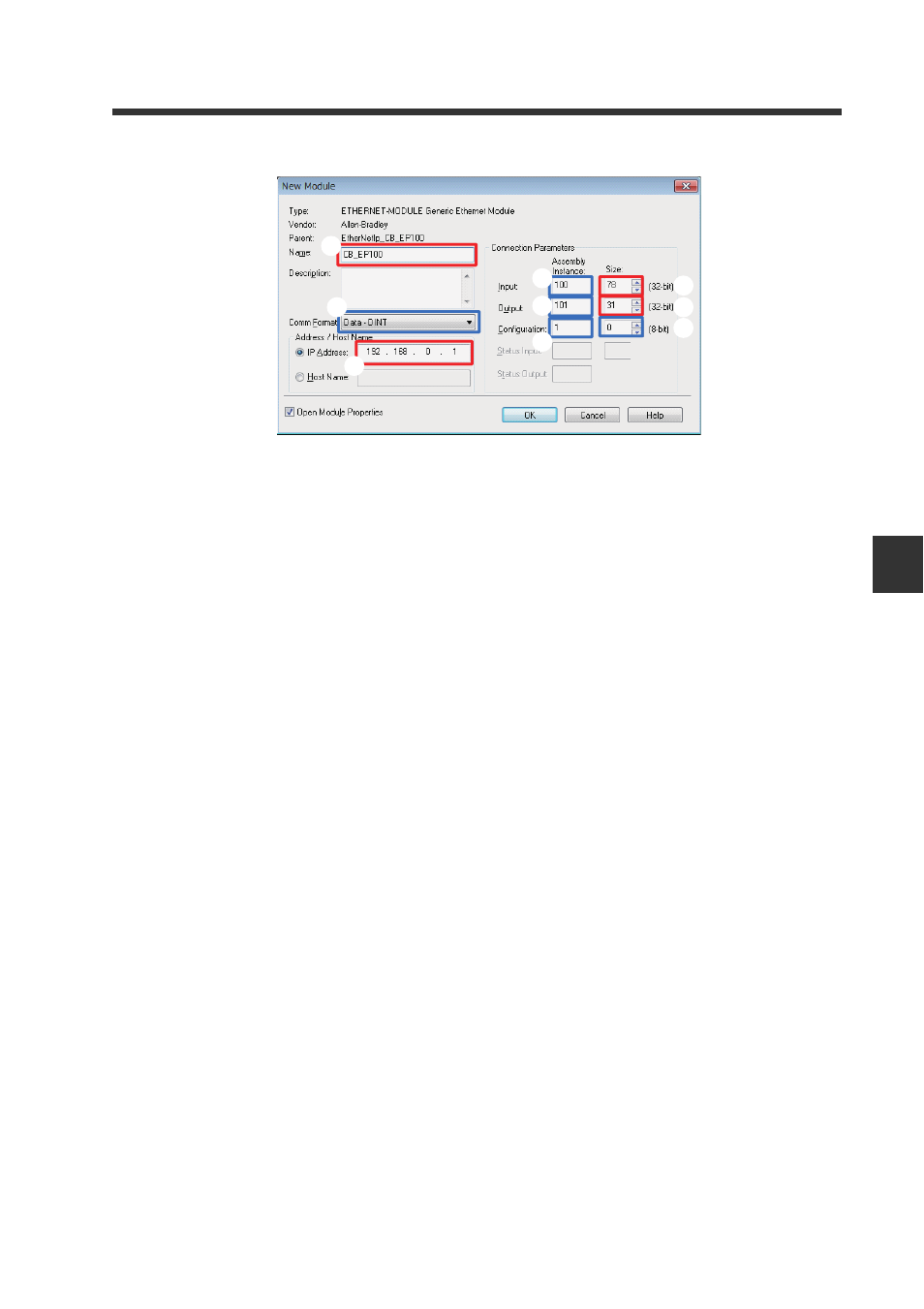

(1) Name Any setting
(2) Comm Format Any setting
*1
(3) IP Address IP address setting of CB-EP100
(4) Input (Assembly Instance) 100 (fixed)
(5) Input (Size) Input assembly size setting of CB-EP100
*4
(6) Output (Assembly Instance) 101
*2
(7) Output (Size) Output assembly size setting of CB-EP100
*2*4
(8) Configuration 1
*3
(9) Configuration Size 0
*3
*1 This can be set to anything, but programming will be easier if you set a format
that allows 4-byte alignment on the assembly object structure.
When connecting with Exclusive Owner, use Data-DINT.
When connecting with Input Only, use with Input Data-DINT.
*2 To perform operation with Input Only, set (6) to 254 and (7) to 0.
*3 Configuration is not used with CB-EP100, but input the value above because
an error occurs if nothing is input.
*4 The assembly size of Input is set in 8-bit (1-byte increments) for CB-EP100, but
it is set in 32-bit (4-byte increments) in RSLogix5000.
Set the assembly size of Input and assembly size of Output for CB-EP100 to
values higher than those of (5) and (7), respectively.
(1)
(2)
(3)
(4)
(5)
(7)
(9)
(6)
(8)
