Operation Manual D-480 ©BÜCH Labortechnik AG
3 - Product description 38

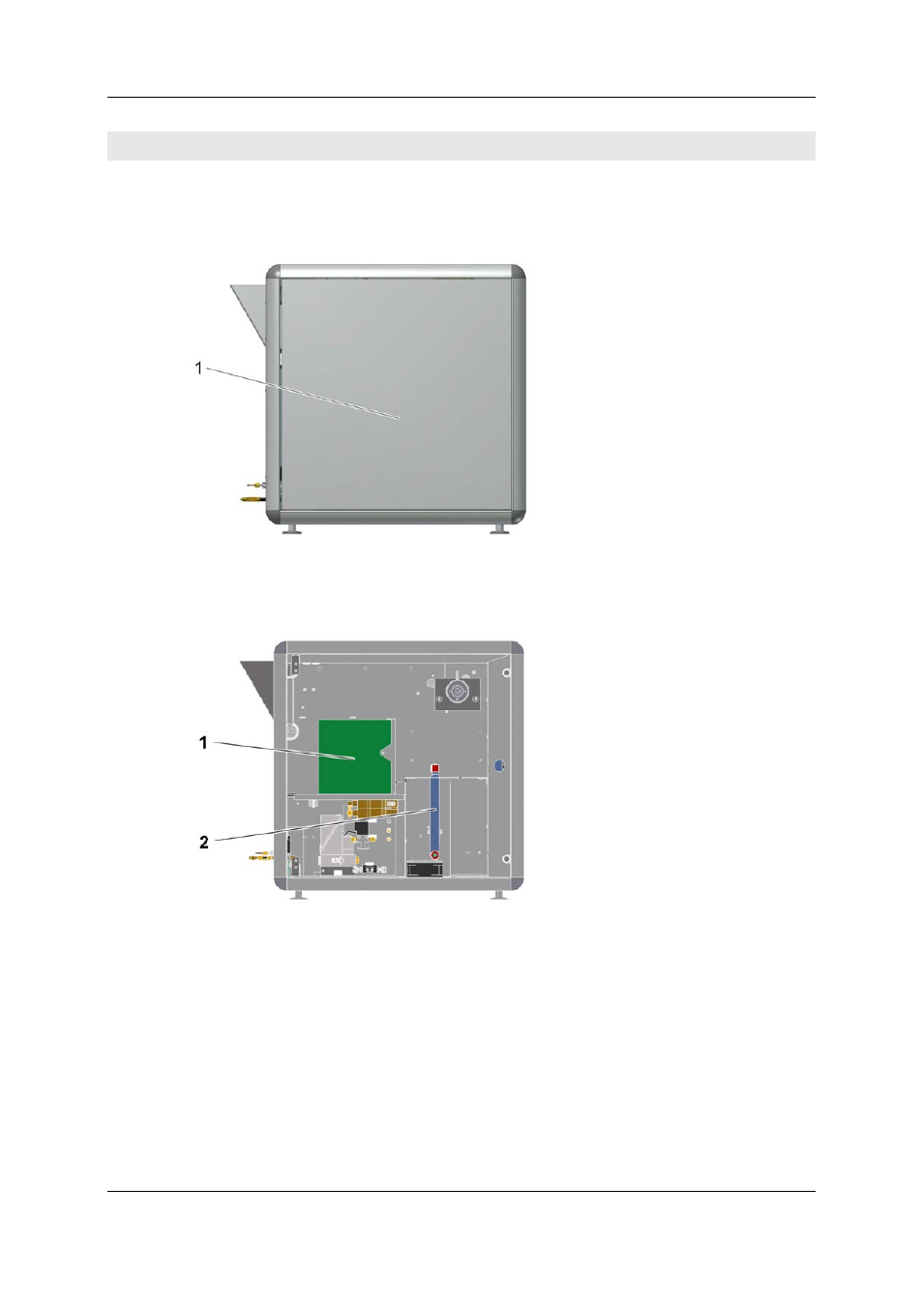

Left side view
Left side view, closed
The following picture shows the left side of the analyzer with the side door closed, as seen from the
front:
Legend:
1 Left side door
Left side view, open
The following picture shows the left side of the analyzer with the side door open, as seen from the
front:
Legend:
1 Thermal conductivity detector (TCD)
2 Water condenser
