Operation Manual D-480 ©BÜCH Labortechnik AG
6 - Starting up and shutting down the instrument 112
Detail of the rear

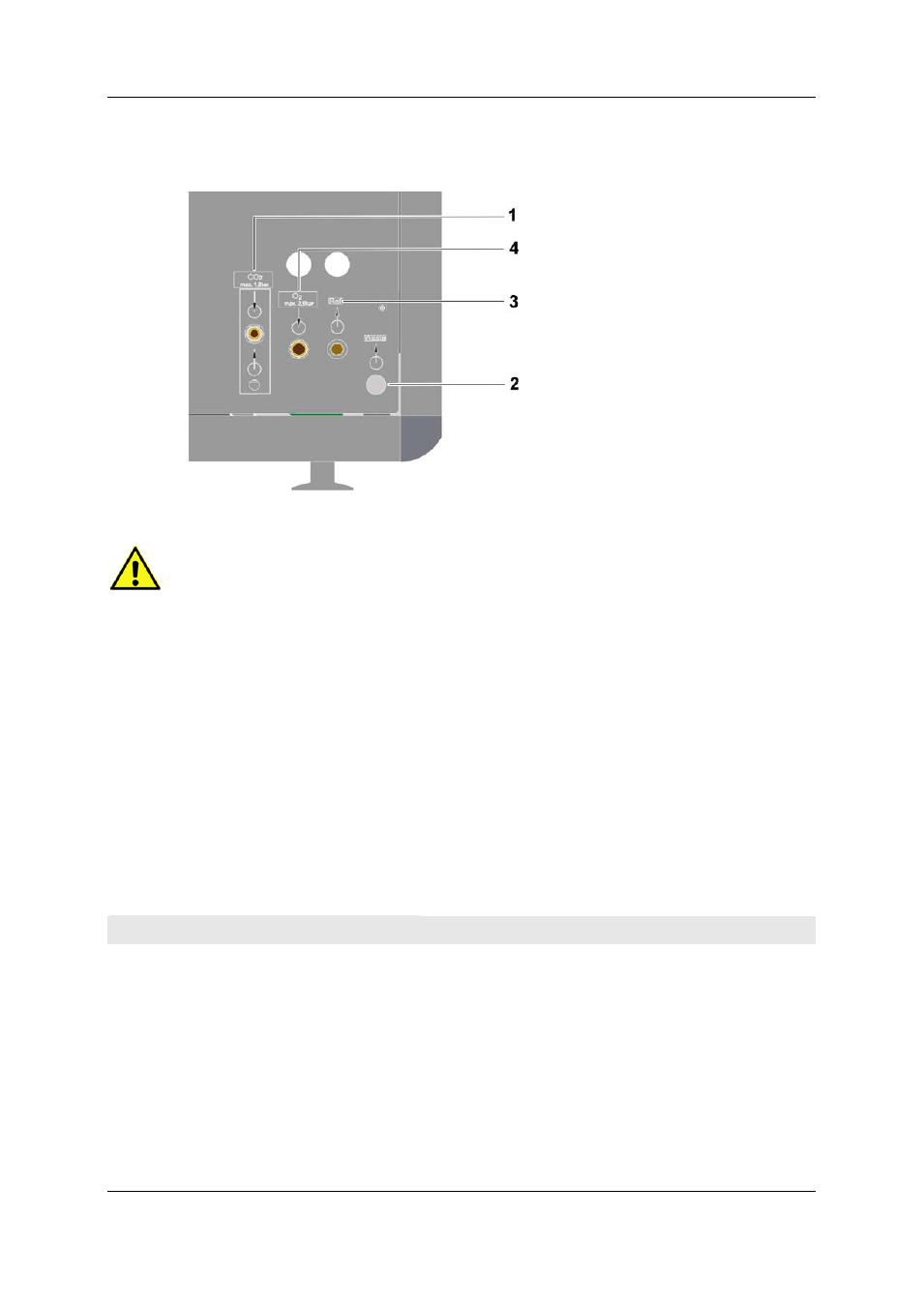

The following picture shows a detail of the rear of the analyzer with the associated gas connections:
Legend:
1 "CO
2
IN" CO
2
gas inlet
2 "WASTE" measuring gas outlet
3 "REF" reference gas outlet
4 "O
2
IN" O
2
gas inlet
Connecting supply lines
Safety instruction
Strictly observe the safety instruction "Mixing up gas inlets" under Warning notes during operation
(on page 24).
Proceed as follows:
 Connect the CO
2
supply tube to the CO
2
gas inlet (1).
 Connect the oxygen supply line to the oxygen gas inlet (4).
Connecting waste gas lines
Proceed as follows:
 Connect the waste gas lines to the gas outlets (2, 3).
 Install the other ends of the waste gas lines so that they discharge into the open or into a vent.
 If the waste gas lines discharge into the open, make sure that the waste gas lines discharge into
the open at a location protected from the wind. Otherwise detector instabilities may occur.
Removing the transport protection
Types of transport protections
There are two types of transport protections:
 Furnace transport protection.
 Water trap transport protection
Purpose of the transport protections
The transport protections prevent...
 ... the furnace section from slipping on its rails while the analyzer is being transported.
 ... the loosely attached water trap from damages while the analyzer is being transported.
