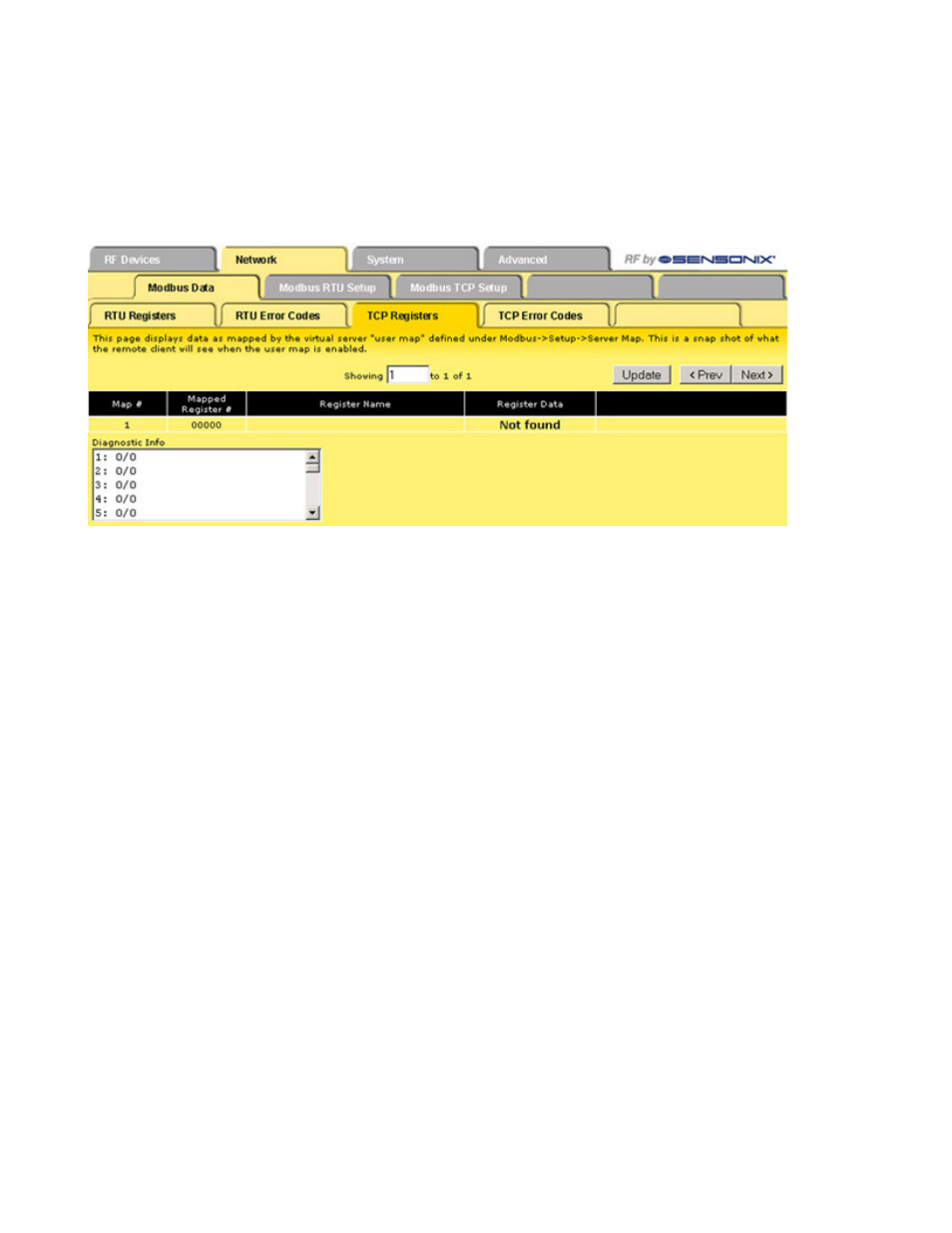

TCP Registers

The TCP Registers page displays data mapped by the virtual server user map defined under Network > Modbus/TCP Setup > Server
Map.

This is a snapshot of what the remote client sees when the user map is enabled. The diagnostic info displays the connection status for
each available connection. A code of A/B where A is zero is an available connection, and B indicates the reason for closing (may be
normal TCP close). A value of A greater than zero and B equal to zero indicates an active connection.

TCP Error Codes

The TCP Error Codes page displays error codes encountered when processing Modbus Client reads and writes via the Modbus/TCP
connection.
