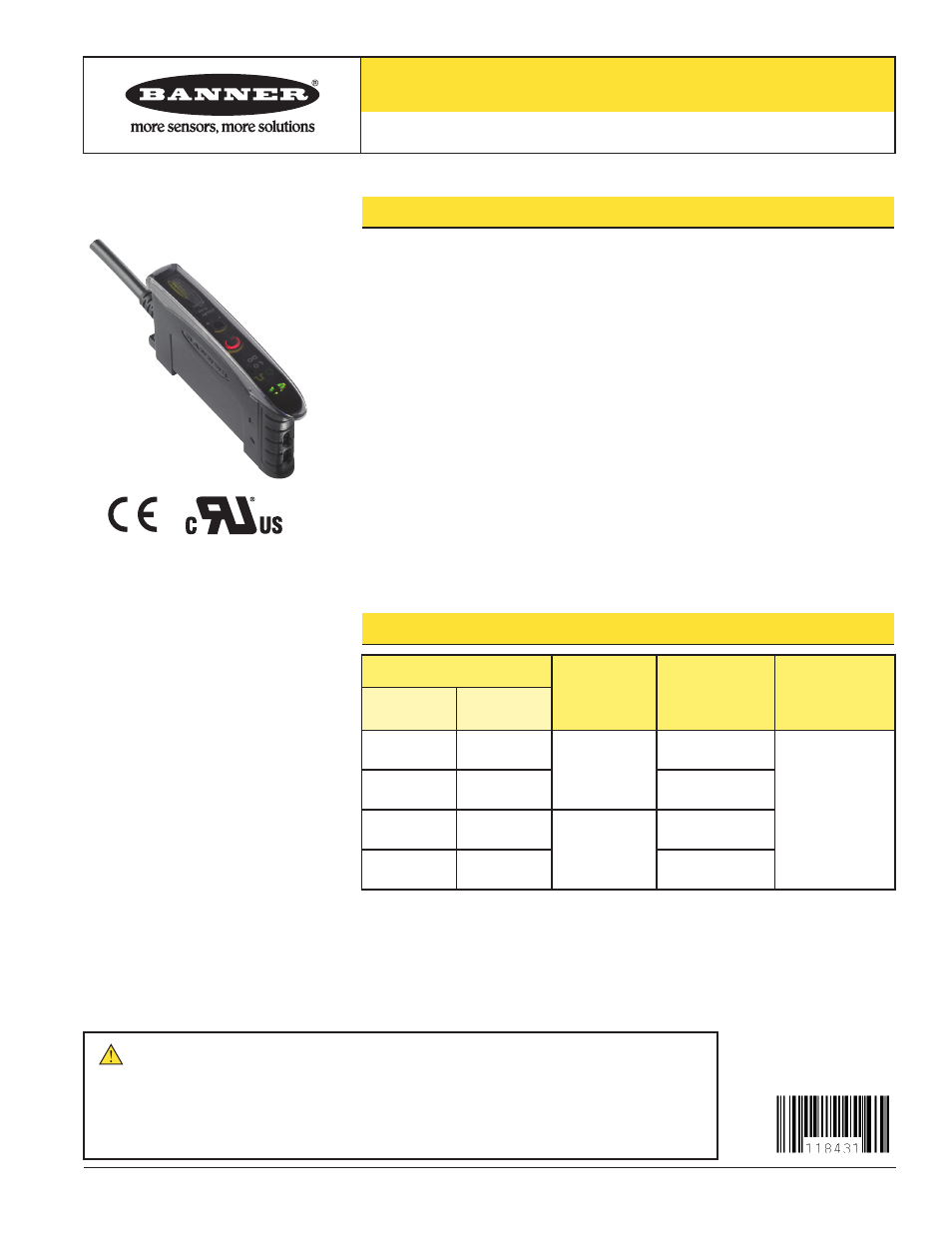

Banner D10—Discrete - Manual

D10 — Discrete Output
Low-cost, 10 to 30V dc Sensor for use with Plastic Fiber Optics
Printed in USA
WARNING . . .
Not To Be Used for Personnel Protection
Never use these products as sensing devices for personnel protection. Doing so could lead to serious injury or death.
These sensors do NOT include the self-checking redundant circuitry necessary to allow their use in personnel safety applications. A
sensor failure or malfunction can cause either an energized or de-energized sensor output condition. Consult your current Banner
Safety Products catalog for safety products which meet OSHA, ANSI and IEC standards for personnel protection.
P/N 118431 rev. A 07/08
Models
Features
Models available with visible red (660 nm) or visible green (525 nm) LED light •
source
Sleek, ultra-slim 10 mm housing, mounts to standard 35 mm DIN rail
•
Solid-state, bipolar discrete outputs: one current sourcing (PNP) and one current •
sinking (NPN)
High-speed models:
• 200-microsecond output response
Standard models: • 500-microsecond output response plus crosstalk-avoidance
circuitry (for applications with multiple sensors)
Selectable Light/Dark Operate and 40 millisecond pulse stretcher (OFF-delay), via
•
two easy-to-operate slide switches
12-turn Sensitivity adjustment with relative position indicator
•
LED status indicators for Power ON and Light Sensed (“AID™”) indication •
Models available with integral cable or Pico-style quick-disconnect •
Models
Response
Time
Cable*
Output
Type Red Beam
(660 nm)
Green Beam
(525 nm)
D10AFP D10AFPG
500
microseconds
4-conductor
2 m (6.5') Cable
Bipolar
NPN/PNP
Solid-state
D10AFPQ D10AFPGQ
4-pin
Pico-style QD
D10AFPY D10AFPGY
200
microseconds
4-conductor
2 m (6.5') Cable
D10AFPYQ D10AFPGYQ
4-pin
Pico-style QD
* 9 m (30') cables are available by adding suffix “W/30” to the model number of any cabled sensor (e.g.,
D10AFP W/30). A model with a QD connector requires a mating cordset (see page 4).
