Using Markers with Recalled Traces
When a trace is recalled, the screen displays both the current trace and the
recalled trace and there is an additional marker option, single / dual mode. In sin-
gle mode, the markers function normally; the site analyzer displays the frequency
and trace magnitude at each marker. In dual mode, the markers show the actual
magnitude of both traces and the difference in magnitude between the recalled
trace and the current reading. All markers follow the current trace only, and only
three markers are available in dual mode, M1, M2, and M3. When dual mode is
selected, the markers move as described in Move Markers, page 53.
1.
Recall a trace. See “Recalling a Saved Setup” on page 63.
2. Press the Marker key.
3. Press the Mode softkey to select single mode or dual mode.
4. Select a marker to move.
5. Press the left or right scroll keys to move the marker.
6. Press the Esc key to return to the test screen.

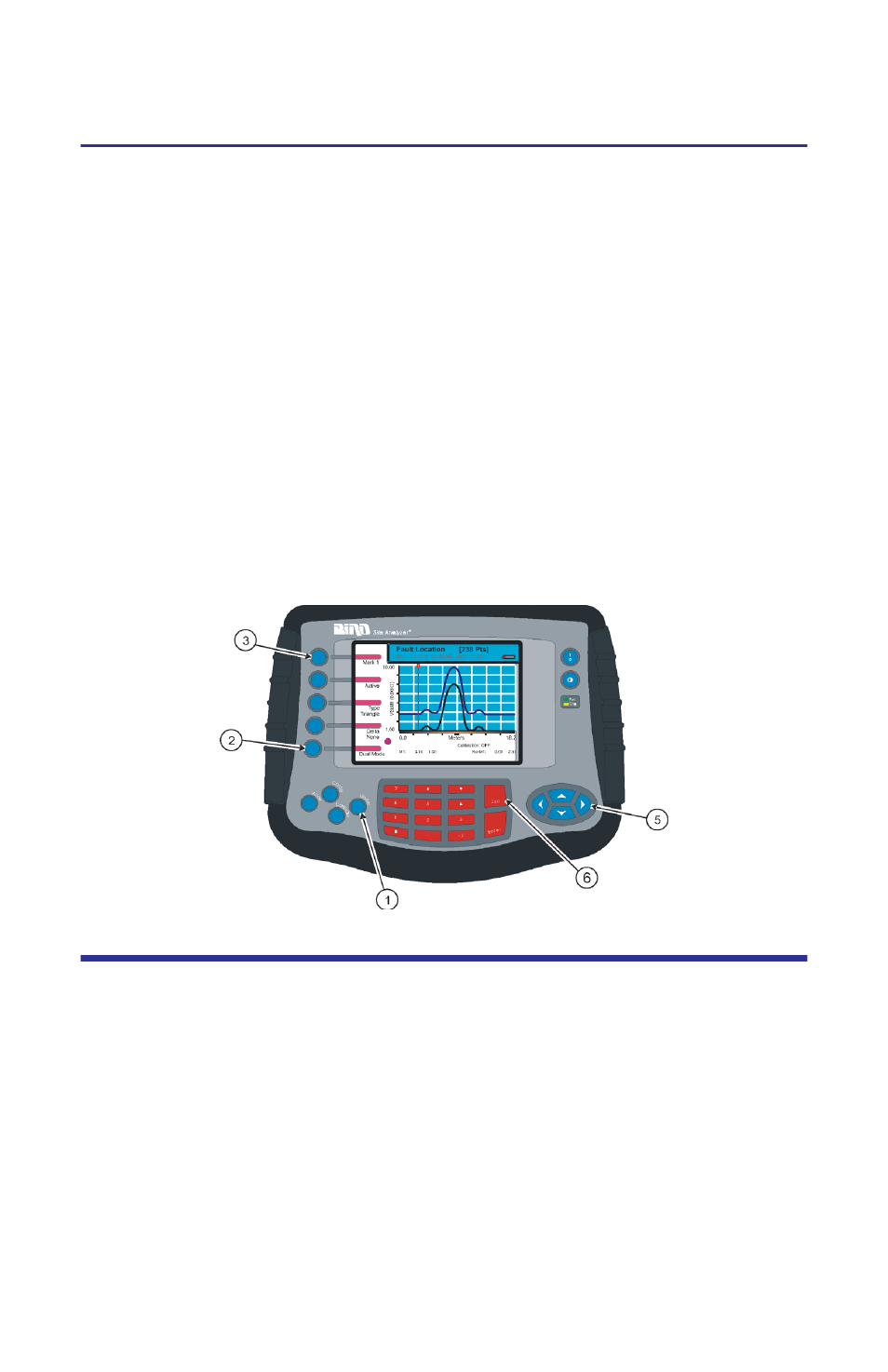

Figure 51 Using Markers with Recalled Traces
Setting Display Smoothing
Smooth is an option that will digitally average the displayed trace. There are
three levels of smoothing: low, medium, and high. Figure 53, page 56 a trace
with high smoothing selected.
1.
Press the Config key
2. Press the Smooth key:

First press - sets smoothing to Low

Second press - sets smoothing to Medium

Third press - sets smoothing to High

Fourth press - sets smoothing to None (off)
3. Press the Esc key to exit the configuration screen
