5

Connectors

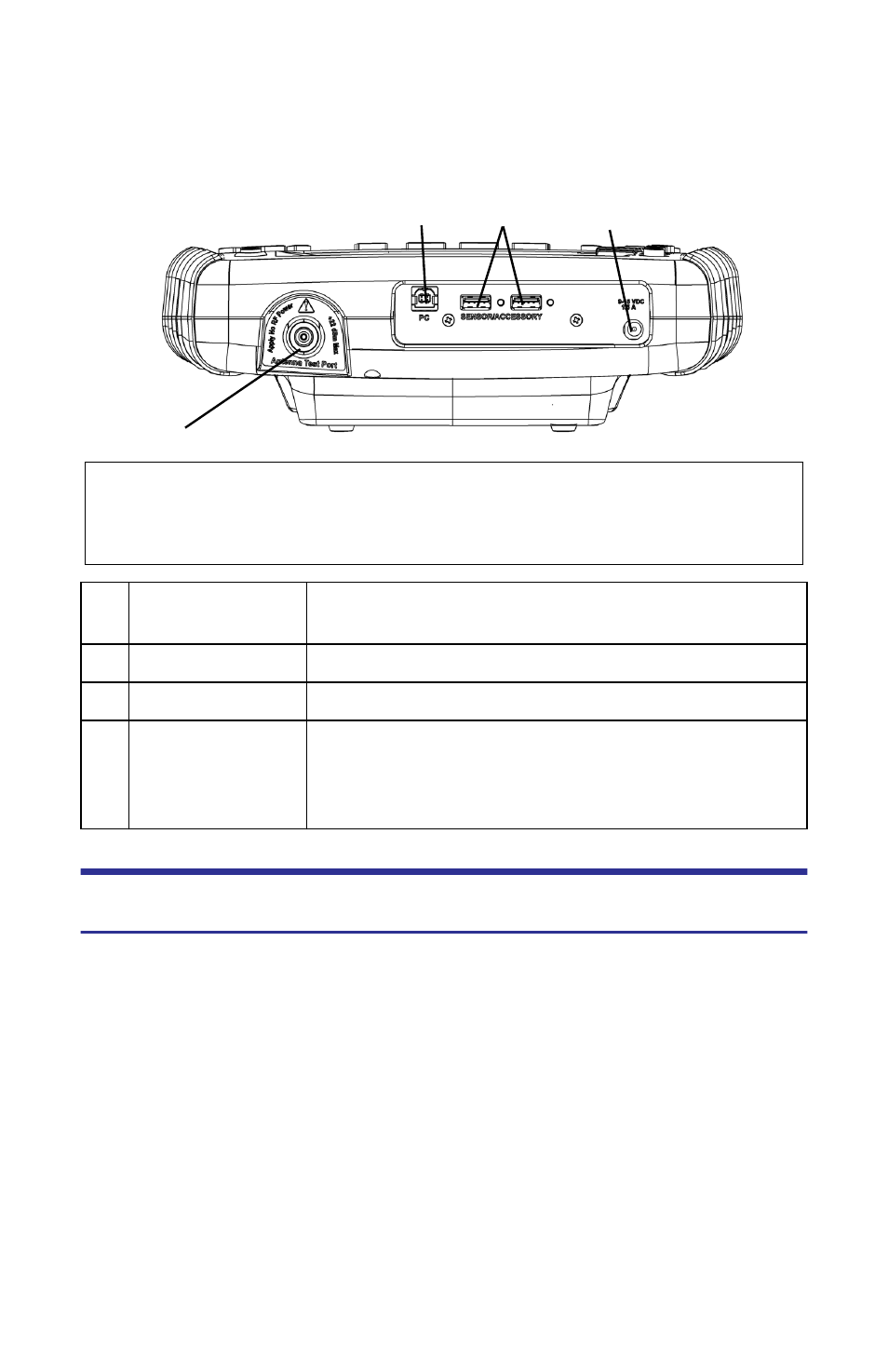

Figure 4 Connector Diagram

Power Supply

Internal Battery

The Bird Site Analyzer has an internal, rechargeable, lithium-ion battery pack. This
will operate the unit for a minimum of 5 hours of continuous usage.

Recharging time, from a full discharge, is approximately 4 hours.

Note: When the unit is received the battery may not be fully
charged. An AC adapter should be used when operating the unit for
the first time.

The battery symbol gauge indicates the approximate battery life
remaining. At ¼ charge the gauge also displays “LO”.

When using an external power source, a power cord symbol replaces
the battery symbol gauge.

CAUTION

+22 dBm max. input

Do not apply RF power to Antenna Test Port. Exceeding the maximum input

will damage the Site Analyzer.

1

Antenna Test

Port

Female N connector for connecting to the antenna.
Use a phase-stable cable for best results.

2

USB 2.0 B Type

There is one USB device port for connection to a PC.

3

USB 2.0 A Type

There are two USB host ports.

4

DC Input

Input for external power supplies. Plug either the AC
power supply or the cigarette lighter adapter into the
DC input. The external supplies operate the unit and
charge the internal battery.

3

4

2

1
