14

Setting the Measurement Frequency

Frequencies can be set manually or chosen from a list of presets (band list). If

the start, stop, center, or span frequency is manually set, the band list will indi-
cate “Custom”. Be sure to set the frequency to a value that is well beyond the

normal range of the antenna.

Example - For a 450 MHz antenna, set the start frequency

at 400 and the stop frequency at 500 MHz, for an 800 MHz

antenna, set the start frequency at 700 and the stop fre-

quency at 1,100 MHz.
Note: Changing the frequency settings will automatically turn calibra-
tion off. Always set the frequency before calibrating the unit.
Note: If a frequency that is outside of the range of the Site Analyzer
is entered, the Site Analyzer will override the entry and set the mini-
mum or maximum frequency of the model.

1.

Enable the Measure Match Mode. See “Selecting the Measure Match
Mode” on page 13.

2.

Do one of the following:

To set a Custom Sweep Frequency: See “Setting a Custom Sweep Fre-
quency” on page 14.

To select a Sweep Frequency: See “Selecting a Sweep Frequency from
a Band List” on page 15.

Setting a Custom Sweep Frequency

1.

Press the Config key.

2.

Press the Freq softkey.

3.

Select Start, Stop, Center, or Span using the left or right scroll keys.

4.

Enter a value.

5.

Press Enter.

6.

Press the Esc key to exit the configuration screen.

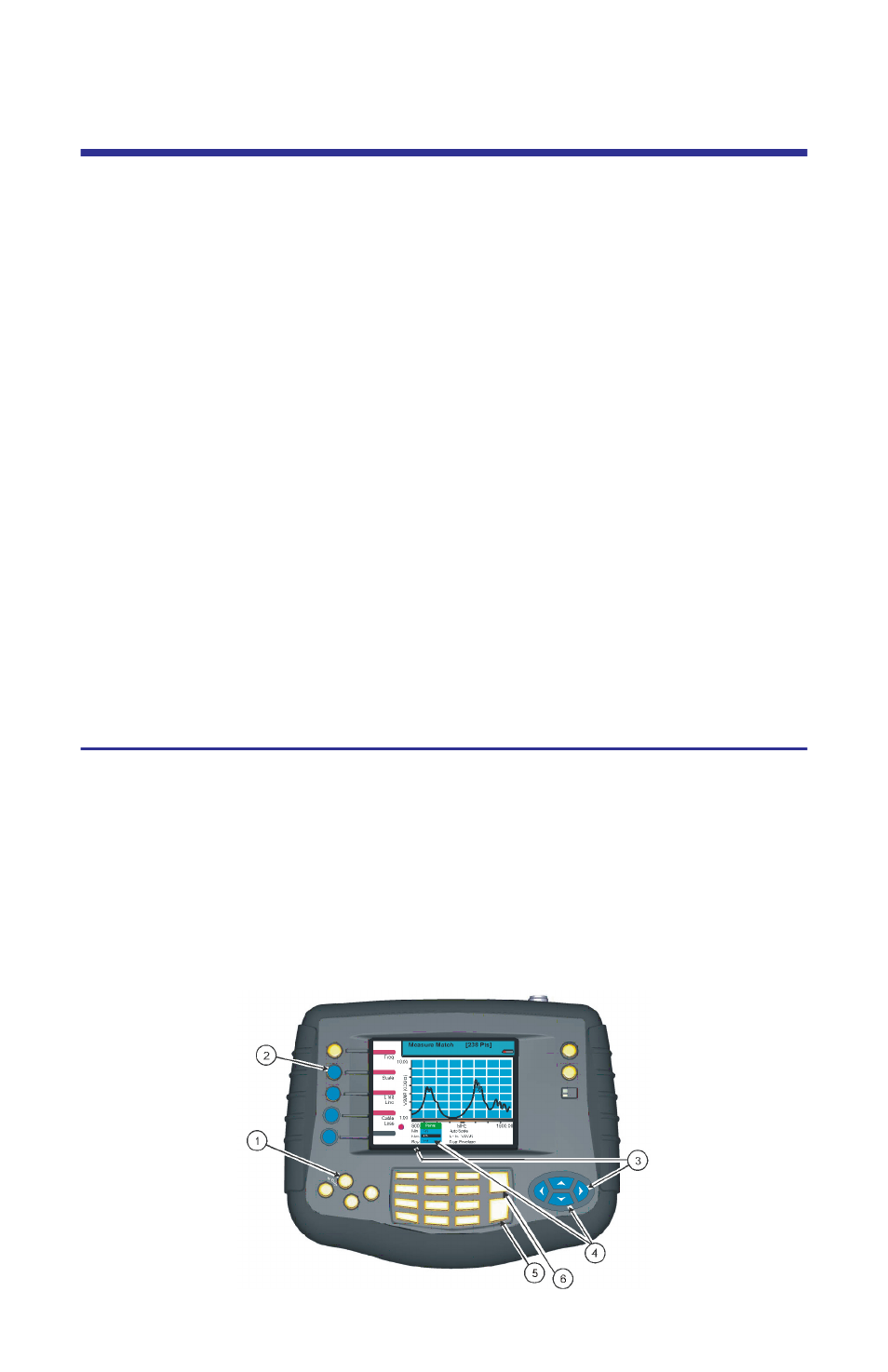

Figure 10 Setting a Custom Sweep Frequency
