Display Description

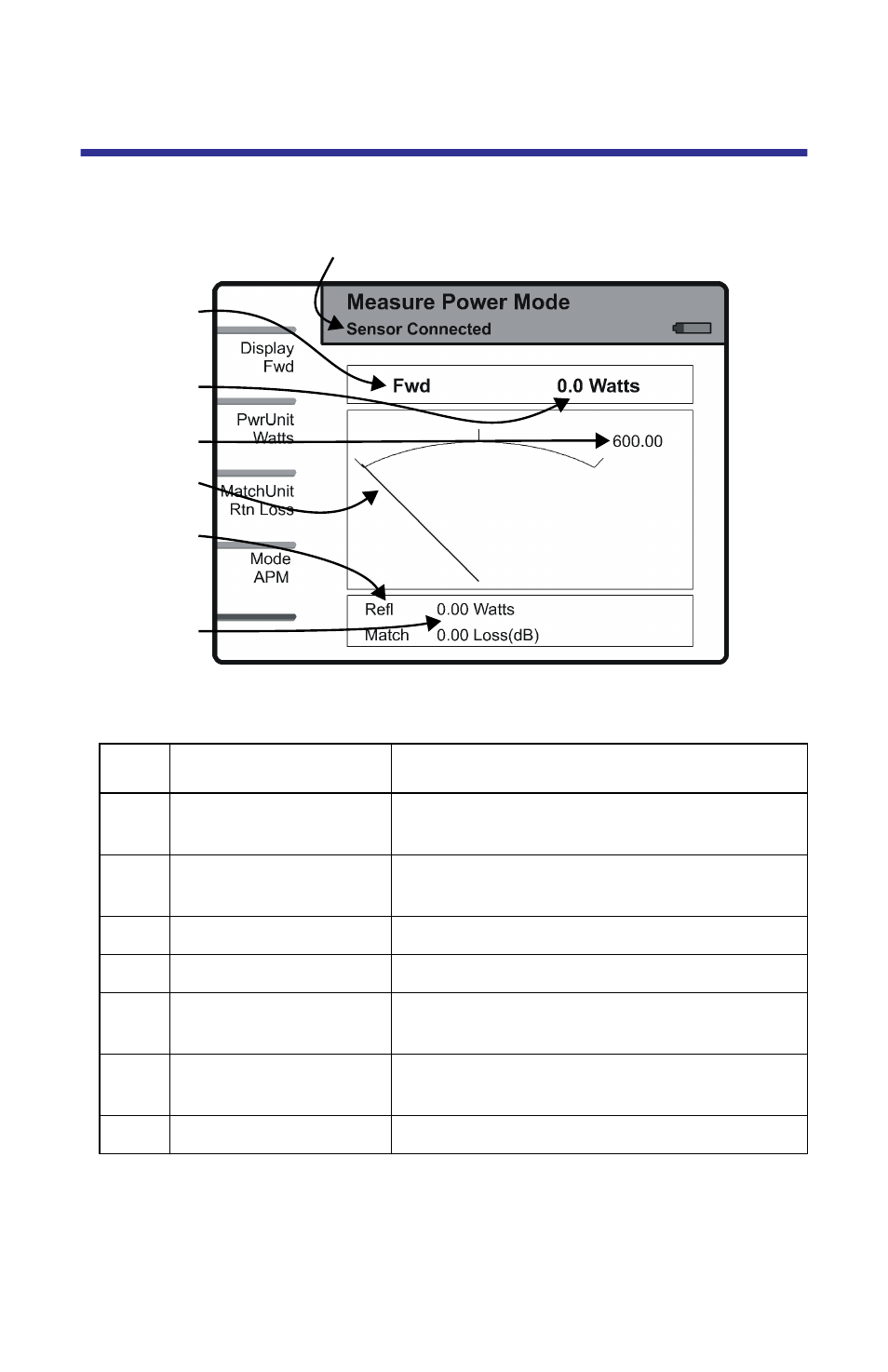

Figure 36 Measure Power Screen Features

Note: Measure power sample display with a sensor properly con-
nected.

Item

Description

Explanation

1

Sensor Status

Indicates the connection status of the power
sensor.

2

Primary Measurement

Identifies the measurement displayed on the
analog dial.

3

Primary Value

Numeric display of the primary value.

4

Measurement Scale

Indicates the dial’s full scale.

5

Dial

Graphic display of the primary
measurement.

6

Secondary
Measurements

Identifies measurements not displayed on
the dial.

7

Secondary Value

Numeric display of secondary values.

1

2

3

4

5

6

7
