Chapter 5 Create an RSLogix 5000 Software Project

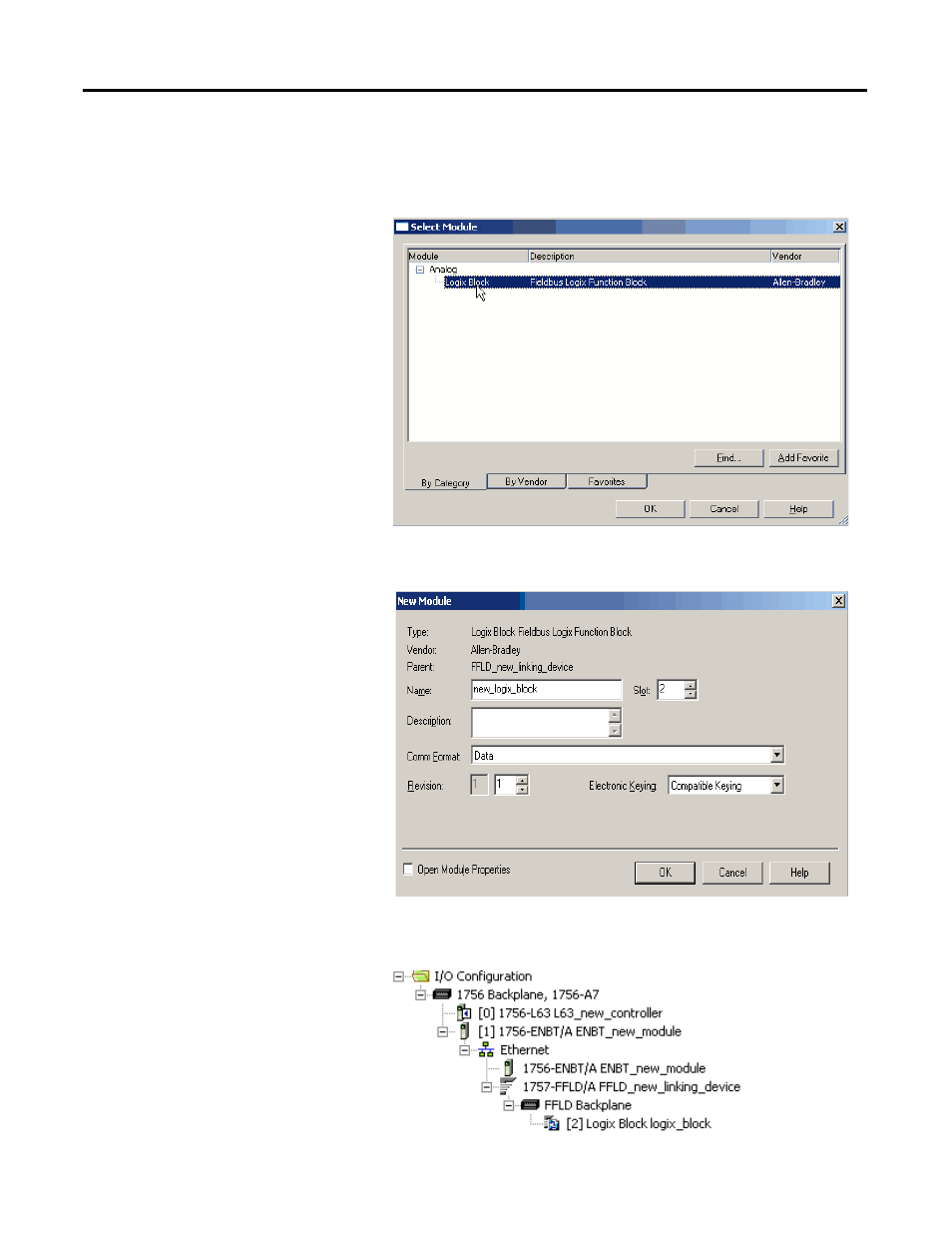

The Select Module dialog box appears.
2.
Click the ‘+’ sign in front of Analog on the Select Module dialog box.
3.
Select the Logix Block module, and then click OK.
The New Module dialog box appears to let you name the Logix Block and
corresponding slot number.
4.
Click OK.
Your I/O Configuration tree should look similar to this example.
