Chapter 10 Advanced Diagnostics and Hidden Web Pages
5.

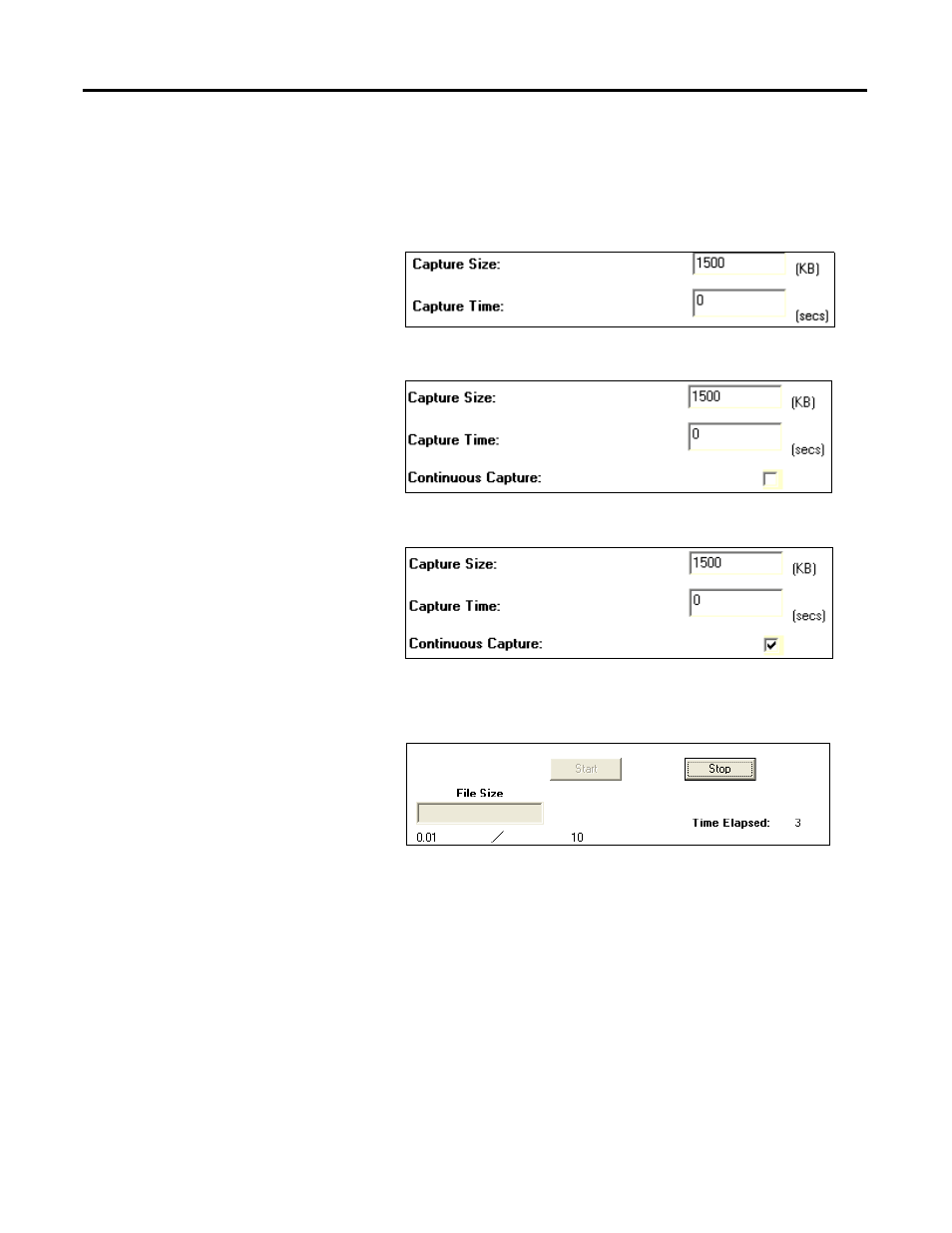

Specify the time and size of the capture by using the following information.
a. To capture for a specific amount of time, type a Capture Time and
Size.
If the file size is reached before the time elapses, the capture will stop.
b. To capture a specific sized file, type the Capture Size and type a
Capture Time of 0.
c. To capture a continuous loop, which writes over itself when the file
size is reached, type a Capture Size and check Continuous Capture.
6.
Click Start.
File Size and Time Elapsed begin counting up.
