Rockwell Automation Publication 1757-UM012A-EN-P - July 2011
81
Create an RSLogix 5000 Software Project Chapter 5

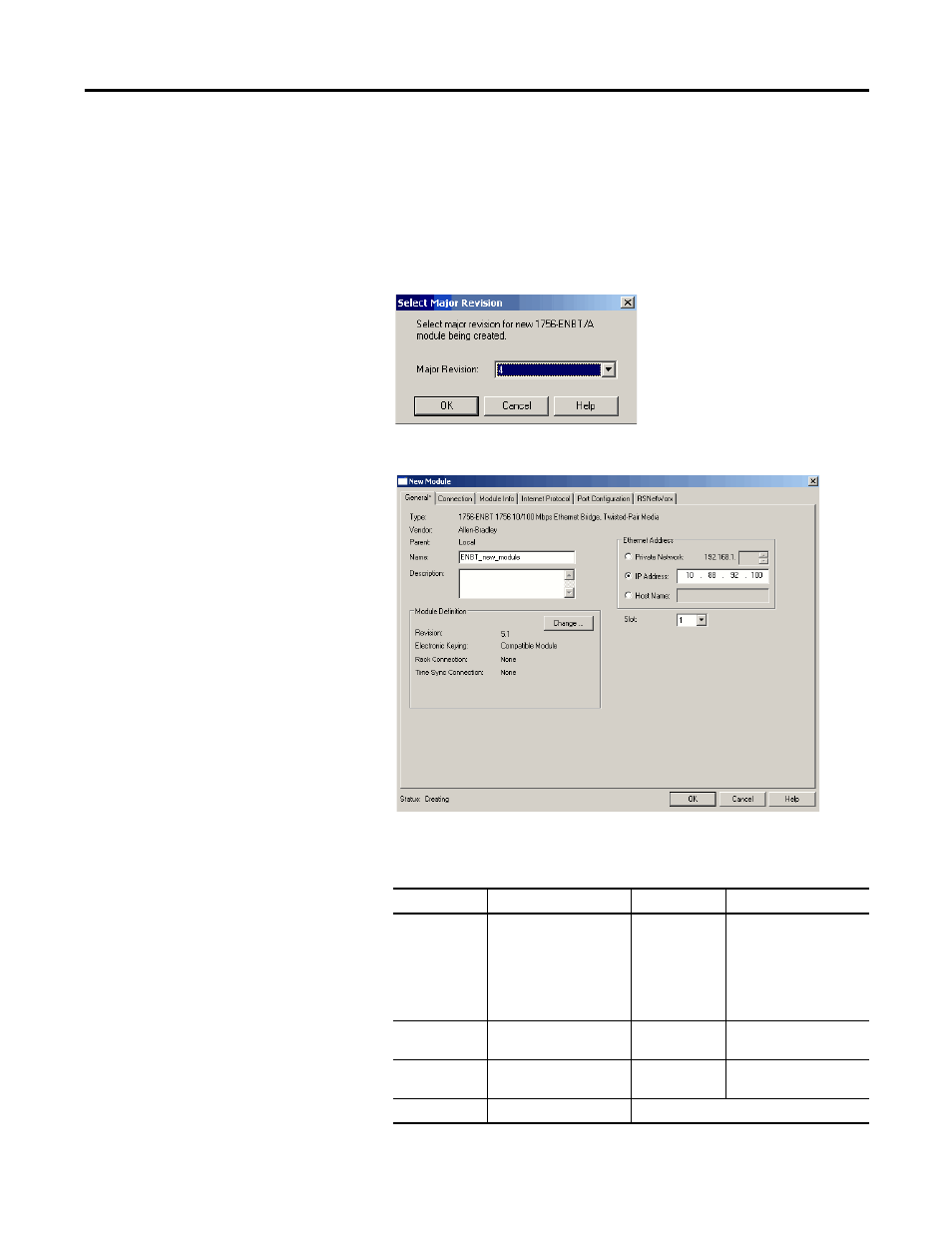

The Select Major Revision pop-up dialog box appears.
5.
Choose the module revision and then click OK.
The New Module dialog box appears.
6.
Configure the communication module by entering information in the
New Module dialog box.
TIP
The Major Revision number represents the functional capabilities and data
exchange formats of the module. Typically, although not always, a later, that is
higher, Major Revision supports at least all of the data formats supported by
an earlier, that is lower, Major Revision of the same catalog number and,
possibly, additional ones.
Field
Description
Field
Description
Type
Field defaults the type of
module that you are
initiating.
Ethernet
Address
Private Network
IP Address
Host Name
Use the default of IP
Address and type the
Ethernet address.
Vendor
Defaults to Allen-Bradley.
Description
Type a description
(optional) for the module.
Parent
Defaults to Local
(chassis).
Slot
Select a slot number for
the module in the chassis.
Name
Type a module name.
